RADOME SHELL
INTERIOR
SURFACE
APPLY LIBERAL COAT OF BMS 5-95
PER BAC5000 TO ALL FAYING
SURFACES OF THE NYLON INSERT TO
SEAL OFF CORE MATERIAL. INSTALL
WITH SCREW. A 0.1200 INCH BEAD OF
BMS 5-95 IS ACCEPTABLE AROUND
PERIPHERY OF MOLDED FASTENER.
DIVERTER
STRIP
RADOME SHELL
EXTERIOR
SURFACE
NYLON
INSERT
FILLET
SEALANT
L13925 S0006581070_V2

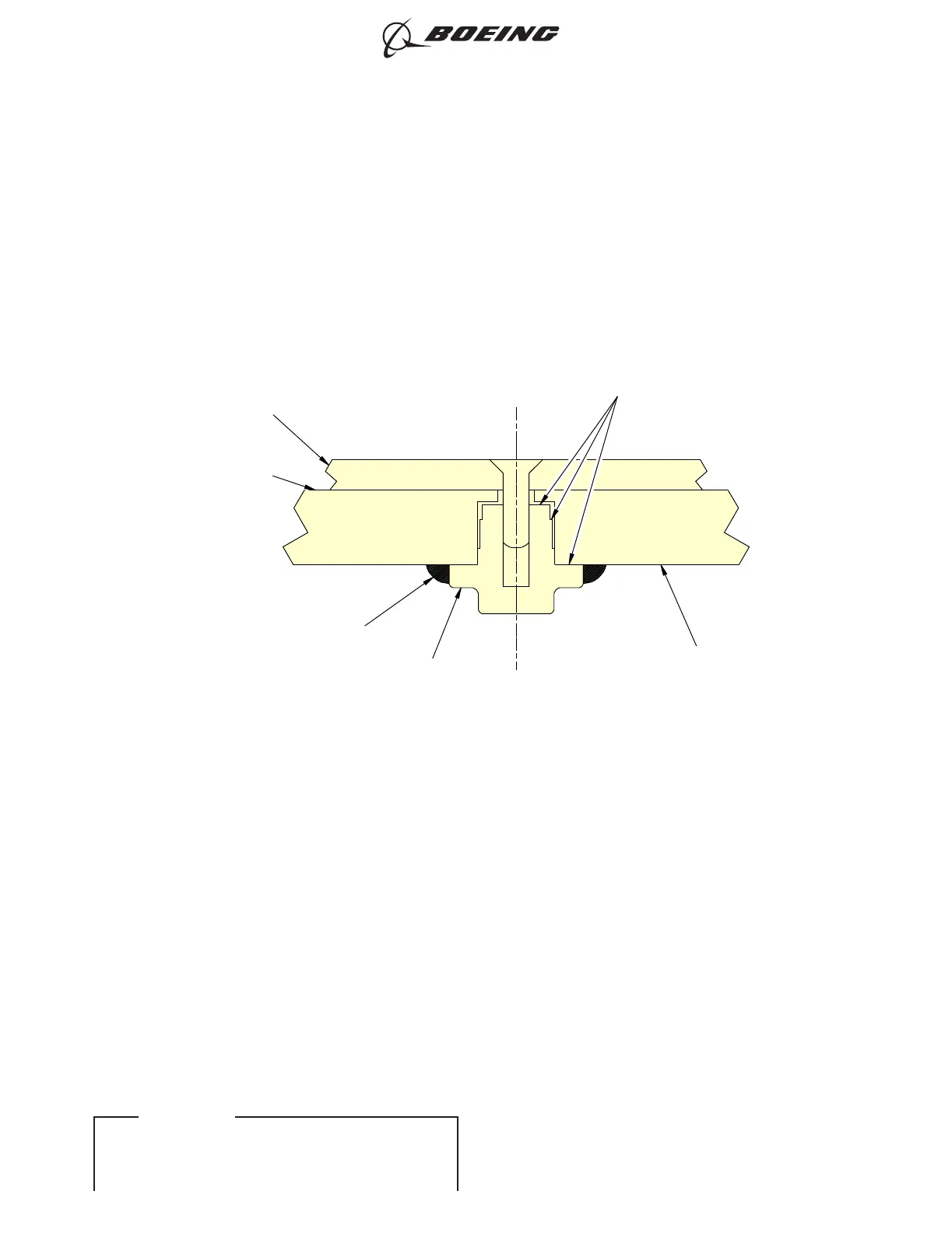

Insert/Sealant Installation
Figure 202/53-52-03-990-805
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-52-03
Page 205
D633A101-ILF Feb 15/2018
