Boeing 737-600 - Page 1993

A
B
A
NOSE RADOME INNER SURFACE
[1] DIRECTOR
BAR
6.50 INCHES
L
C
RADOME
DECAL
0.00-2.00
INCHES
21.75 ±0.10 INCHES
(ALONG INNER SURFACE
OF RADOME)
NOSE RADOME
INNER SURFACE
G29707 S0006581075_V2

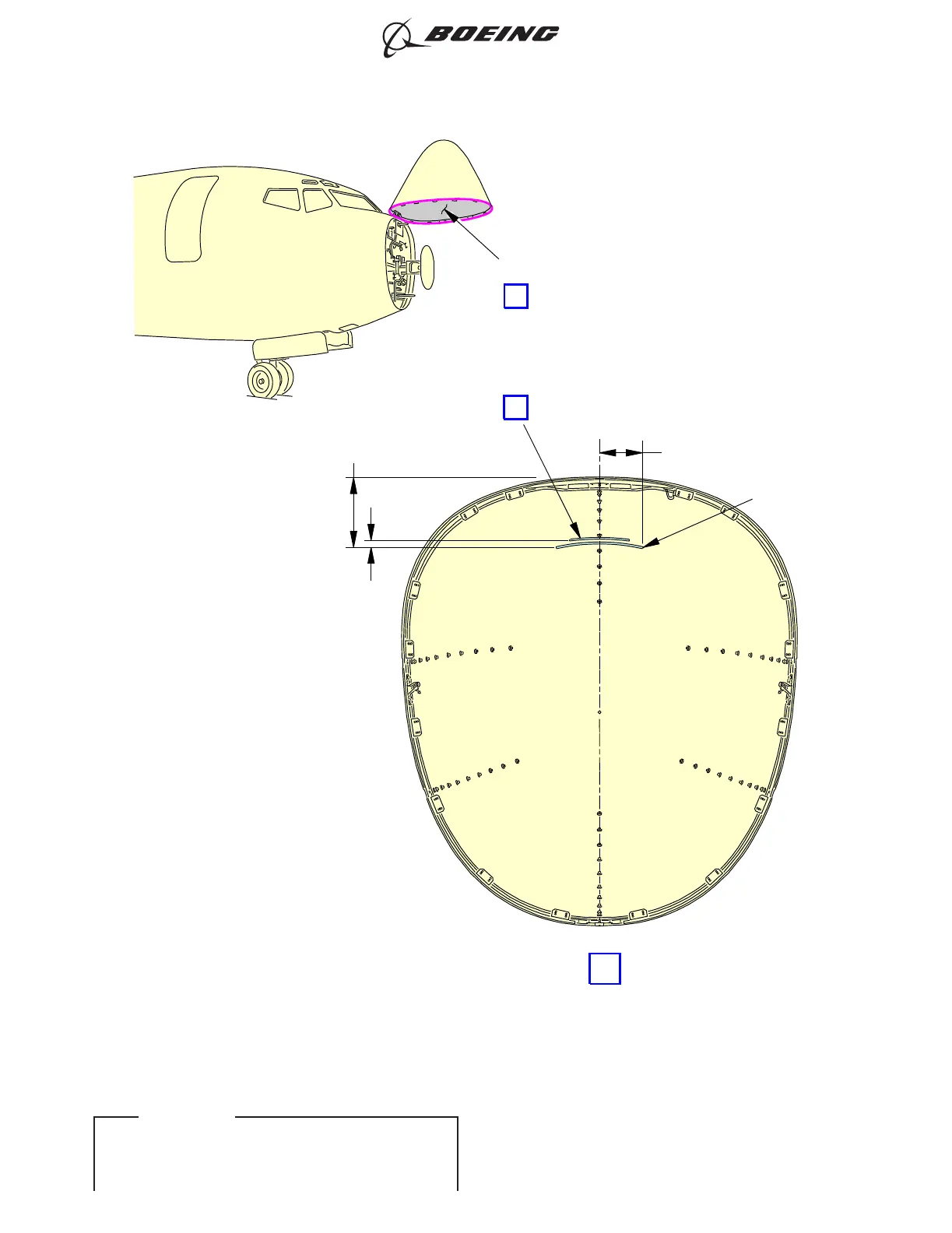

Director Bar - Glide Slope Antenna Installation
Figure 401/53-52-31-990-801 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-52-31
Page 403
D633A101-ILF Oct 15/2015
