F
W
D
FWD
F
A-A
A
A
[2] BOLT
(2 LOCATIONS)
AUTOTHROTTLE SWITCHPACK
(EXAMPLE)
ORIENT MISSING
TOOTH IN CAM
AS SHOWN
ORIENT SLOT IN CRANK
AS SHOWN
[11] SCREW
(2 LOCATIONS)
[8] NUT
[7] WASHER
[6] CRANK
[4] BOLT
[1] BUSHING
[9] SWITCHPACK
(2 LOCATIONS)
[5] ROD
[10] WASHER
(2 LOCATIONS)
[12] SWITCH
(9 LOCATIONS)
[13] NUT
(2 LOCATIONS)
[14] WASHER
(2 LOCATIONS)
G63421 S0006583118_V4

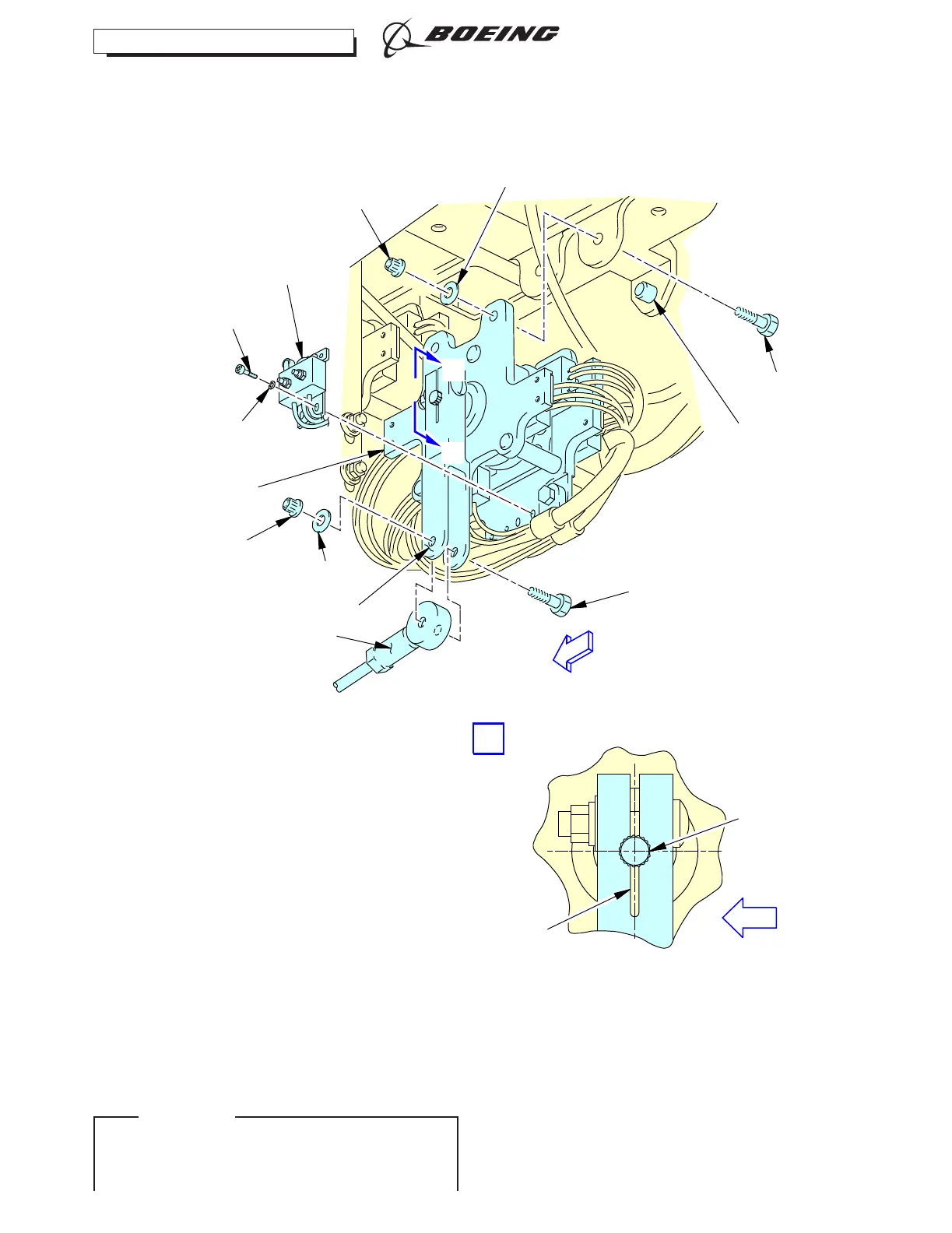

Autothrottle Switchpack Installation
Figure 401/76-11-07-990-801-F00 (Sheet 4 of 6)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-07
Page 408
D633A101-ILF Jun 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL; AUTOTHROTTLE SWITCHPACK WITH
REPLACEABLE SWITCHES P/N 254A1150-1, -2, -7,
-8, -9, -10
