A-A
FWD
F
F
W
D
A
A
AUTOTHROTTLE SWITCHPACK
(EXAMPLE)
ORIENT MISSING
TOOTH IN SHAFT
AS SHOWN
ORIENT SLOT IN
CRANK AS SHOWN
[5] ROD
(2 LOCATIONS)
[4] BOLT
(2 LOCATIONS)
[8] NUT
[7] WASHER
[8] NUT
[7] WASHER
[14] WASHER
(2 LOCATIONS)
[1] BUSHINGS
[13] NUT
(2 LOCATIONS)
[14] WASHER
(2 LOCATIONS)
[9] SWITCHPACK
(2 LOCATIONS)
[13] NUT
(2 LOCATIONS)
[6] CRANK
(2 LOCATIONS)
[2] BOLT
(2 LOCATIONS)
[15] WASHER
(2 LOCATIONS)
[2] BOLT
(2 LOCATIONS)
[3] WASHER
[3] WASHER
[15] WASHER
(2 LOCATIONS)
2861230 S0000673523_V1

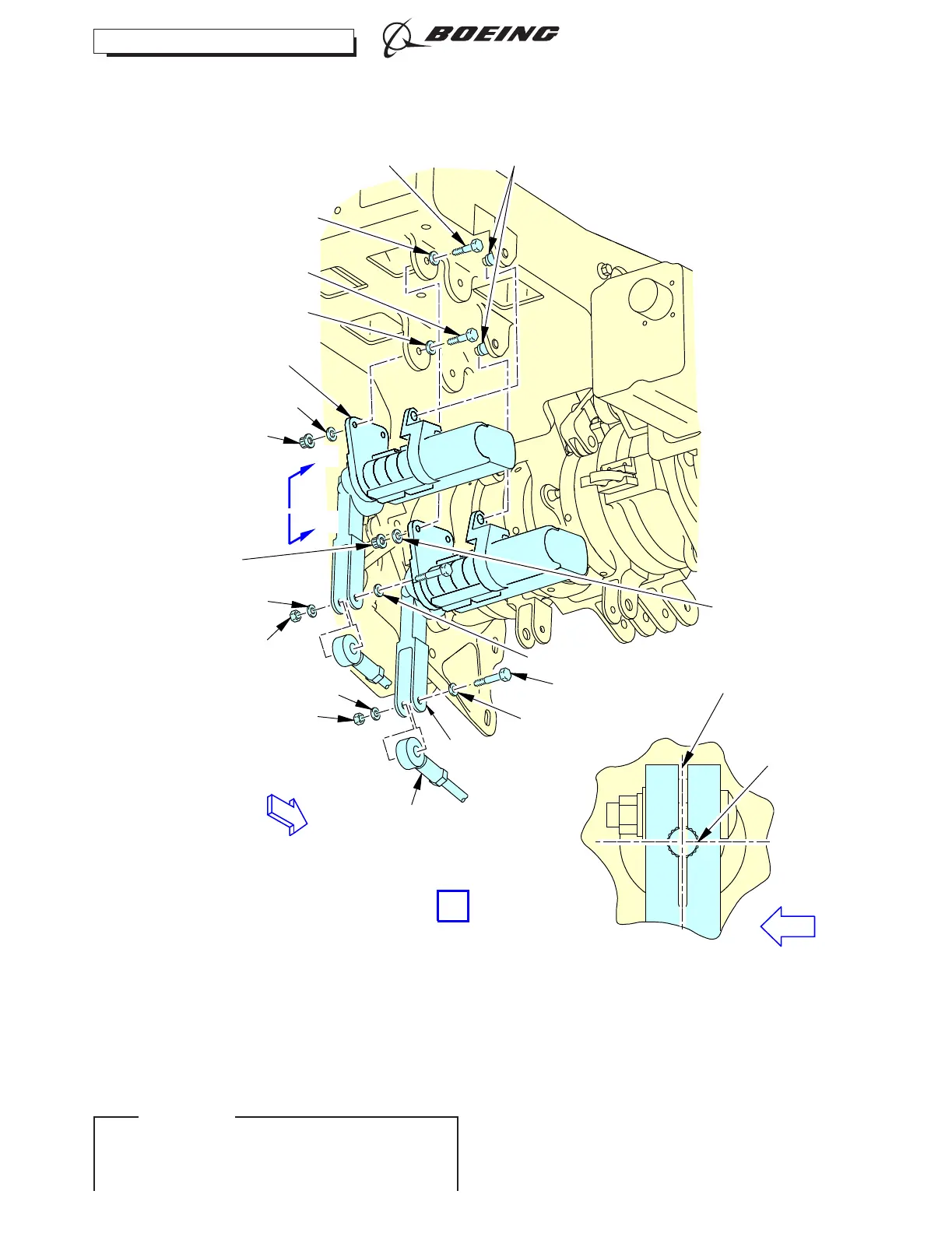

Autothrottle Switchpack Installation
Figure 401/76-11-07-990-801-F00 (Sheet 6 of 6)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-07
Page 410
D633A101-ILF Jun 15/2019
