Boeing 737-600 - Page 220

A
FWD
A
B
B
B
APU
GENERATOR
CONTROL UNIT
(E2-1)
GENERATOR
CONTROL UNIT 1
(E2-1)
GENERATOR
CONTROL UNIT 2
(E4-2)
ELECTRONIC EQUIPMENT RACKS, E2, E3 AND E4
ELECTRONIC
EQUIPMENT
ACCESS DOOR,
117A
ELECTRONIC
EQUIPMENT RACKS,
E2, E3 AND E4
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
F60366 S0006566227_V2

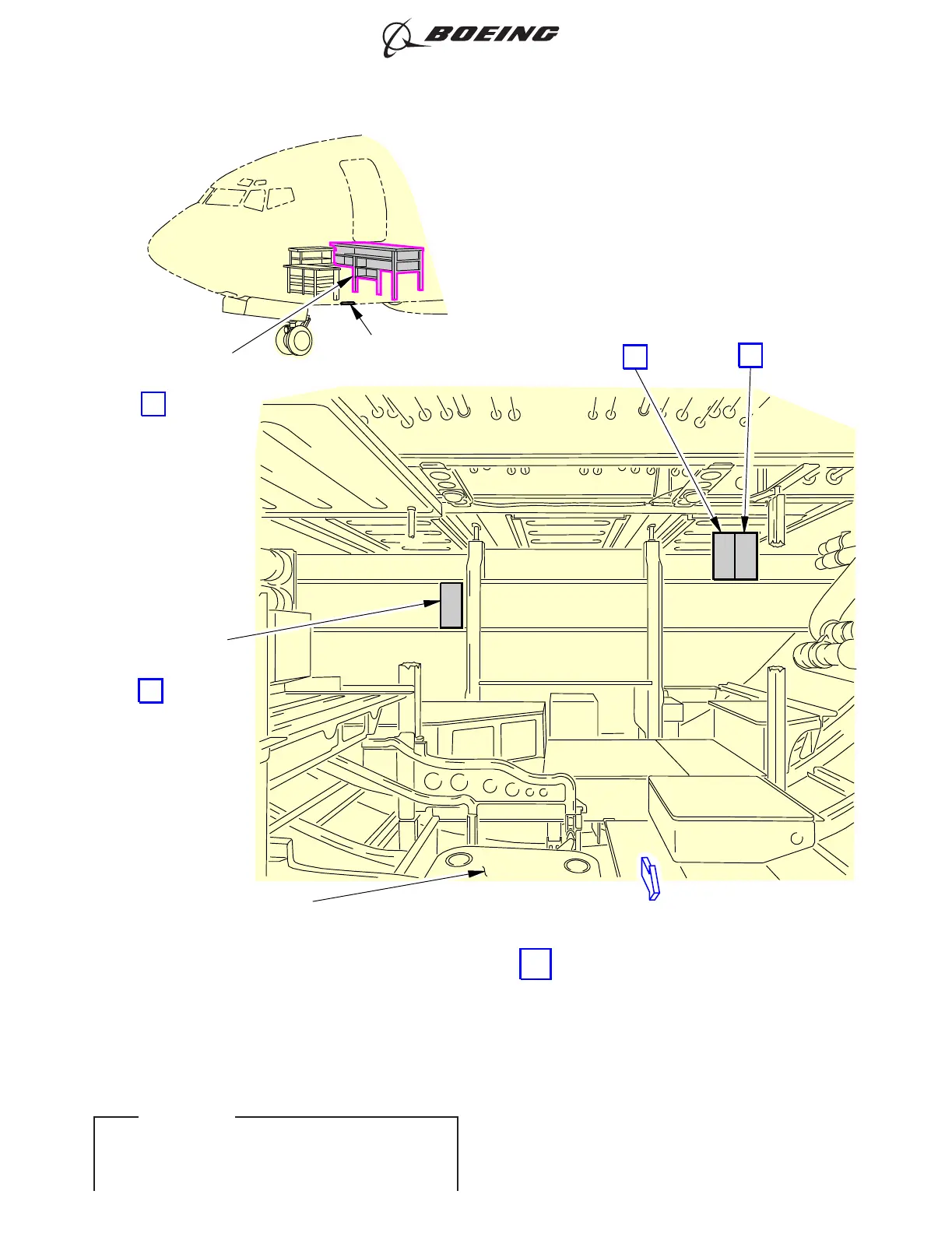

Generator Control Unit (GCU) Installation
Figure 401/24-21-81-990-801 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-21-81
Page 405
D633A101-ILF Oct 15/2015
