[74] WASHER
[74] WASHER
START BRAKE
ASSEMBLY
START BRAKE
ASSEMBLY
START BRAKE ASSEMBLY MOUNT (UPPER)
START BRAKE ASSEMBLY MOUNT (LOWER)
[73] BOLT
CONTROL
STAND
FRAME
CONTROL
STAND
FRAME
[73] BOLT
NOTE:
ENGINE 1 IS SHOWN;
ENGINE 2 IS OPPOSITE.
G34578 S0006583139_V2

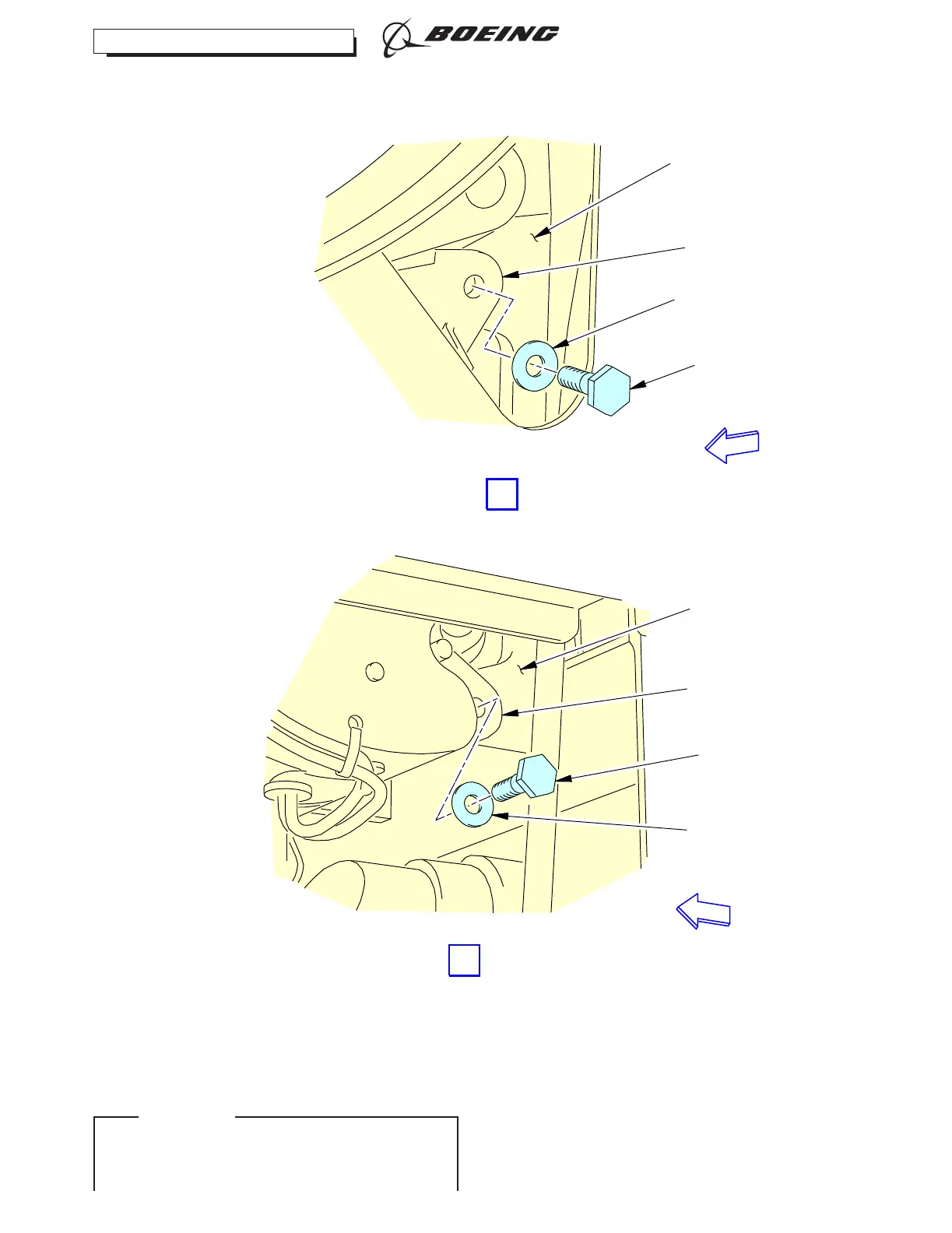

Engine Start Brake Assembly Installation
Figure 404/76-11-10-990-804-F00 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
76-11-10
Page 409
D633A101-ILF Jun 15/2019
