ENGINE START
1
1
A
A
A-A
A
A
A-A
SPACER INSTALLED ON START SWITCH
WITH LONGER SHAFT
FLIGHT COMPARTMENT
OVERHEAD PANEL, P5
AFT
ELECTRONICS
PANEL, P8
ENGINE START
SWITCH
(2 LOCATIONS)
IGNITION SELECT
SWITCH, S858
[2] SPACER
[1] START SWITCH
[3] NUT
[4] WASHER
P5 PANEL
LIGHTPLATE
[1] START SWITCH
[3] NUT
[4] WASHER
P5 PANEL
LIGHTPLATE
1442976 S0000260399_V3

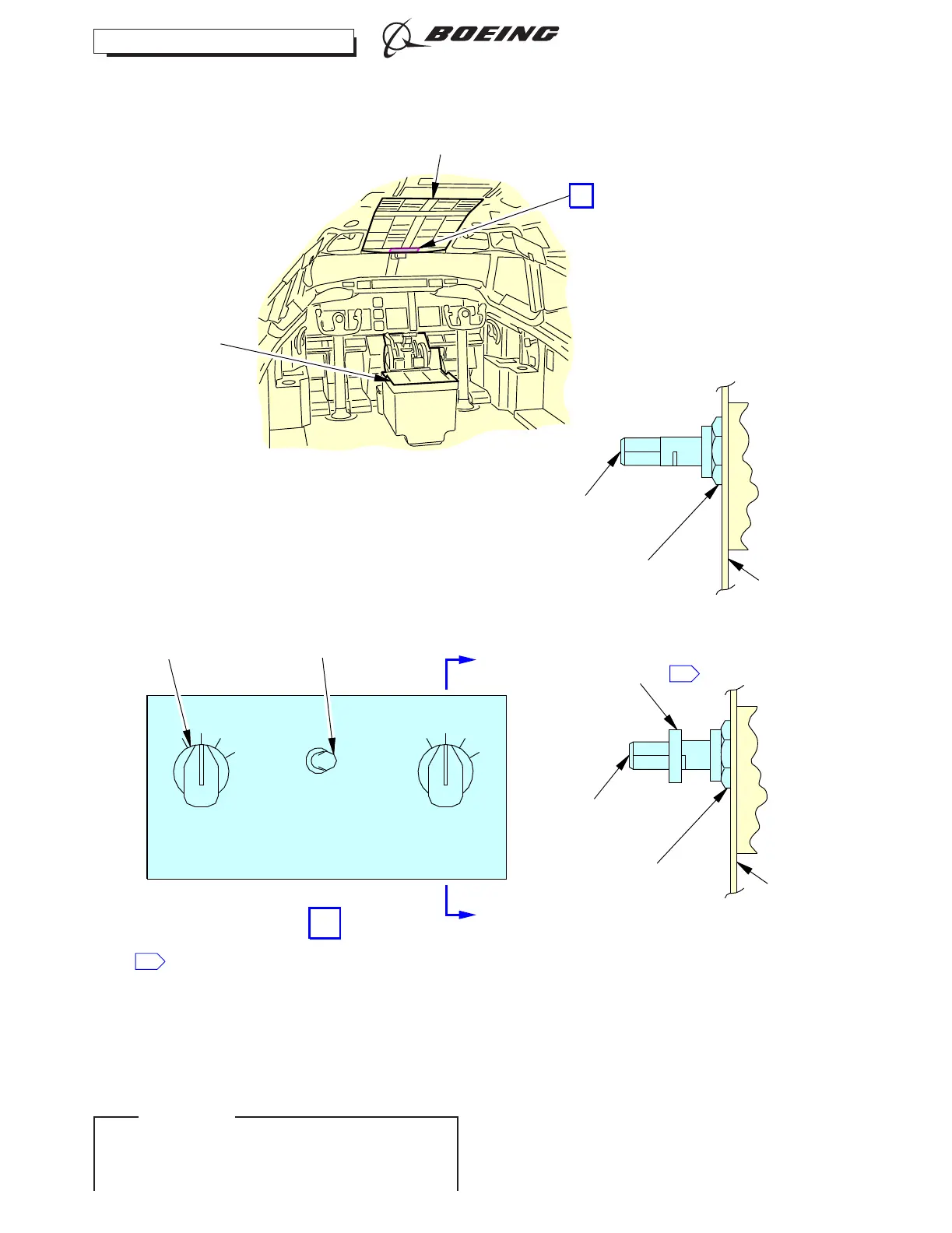

Start Switch Installation
Figure 401/80-11-00-990-801-F00 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
CFM56 ENGINES (CFM56-7)
80-11-00
Page 403
D633A101-ILF Jun 15/2019
