Boeing 737-600 - Page 283

LOCATOR PIN
CONTACT
AREA
SHIPPING PLUGS
CONTACT BAR
CABLE CENTERED
IN OPENING
INSPECTION
GAUGE
A
B
SEE
SEE
A
A-A
A
A
B
SPIRAL SPRING TYPE
L84850 S00041215203_V2

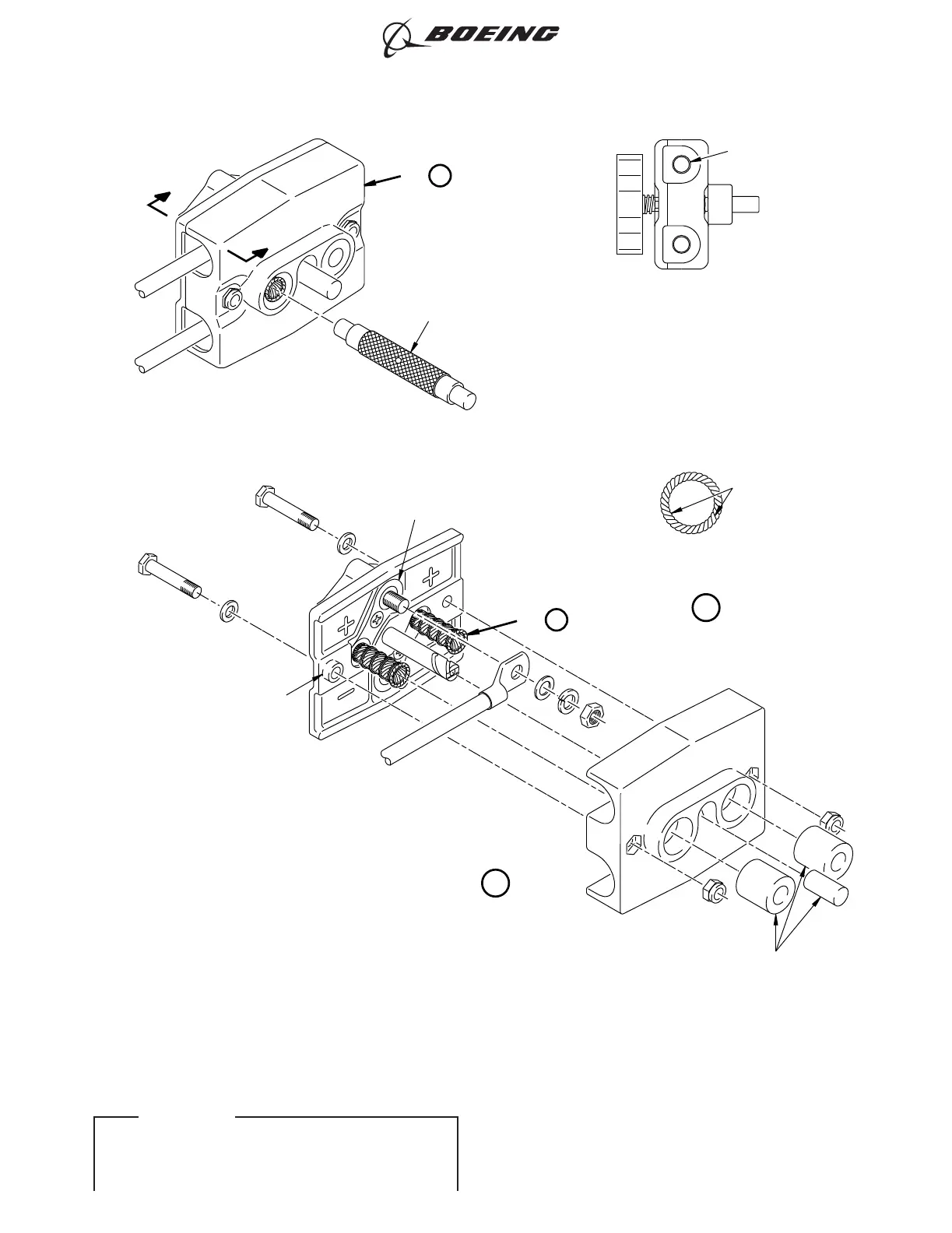

Battery Connector Inspection/Check
Figure 601/24-31-11-990-803 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-31-11
Page 608
D633A101-ILF Oct 15/2015
