Boeing 737-600 - Page 294

A
A
FWD
B
ELECTRONIC EQUIPMENT RACKS, E2, E3 AND E4
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
[1] BATTERY CHARGER
(E2-1)
J9 SHIELD
J39 SHIELD
ELECTRONIC
EQUIPMENT RACKS,
E2, E3 AND E4
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
1494886 S0000271000_V2

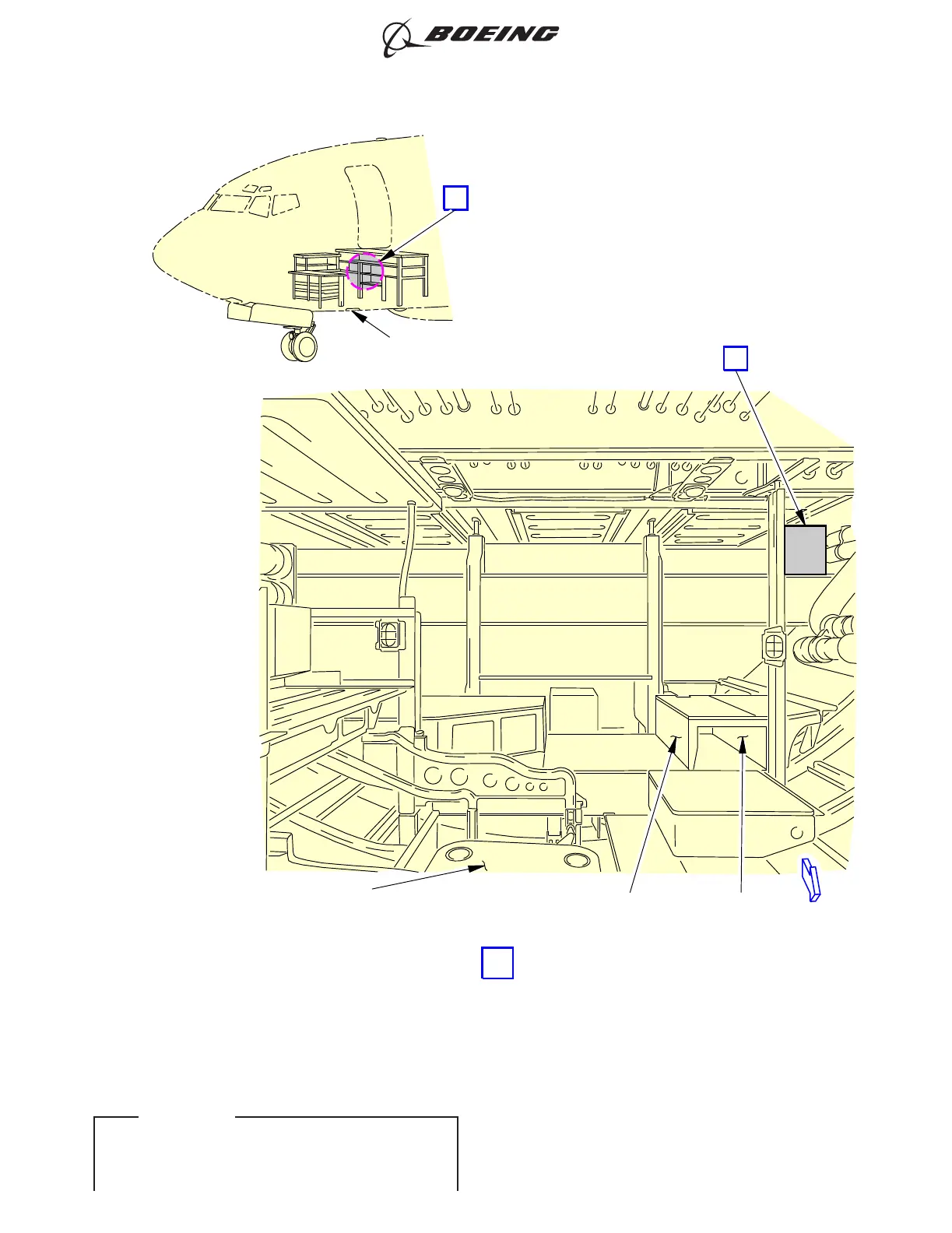

Main Battery Charger Installation
Figure 401/24-31-21-990-802-002 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-31-21
Config 2
Page 405
D633A101-ILF Jun 15/2019
