A
FWD
A
B
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
ELECTRONICS
EQUIPMENT RACKS,
E2,E3,E4
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
ELECTRONIC EQUIPMENT RACKS, E2, E3 AND E4
[1] AUXILIARY BATTERY
CHARGER (E3-3)
J9 SHIELDJ39 SHIELD
1494835 S0000271001_V2

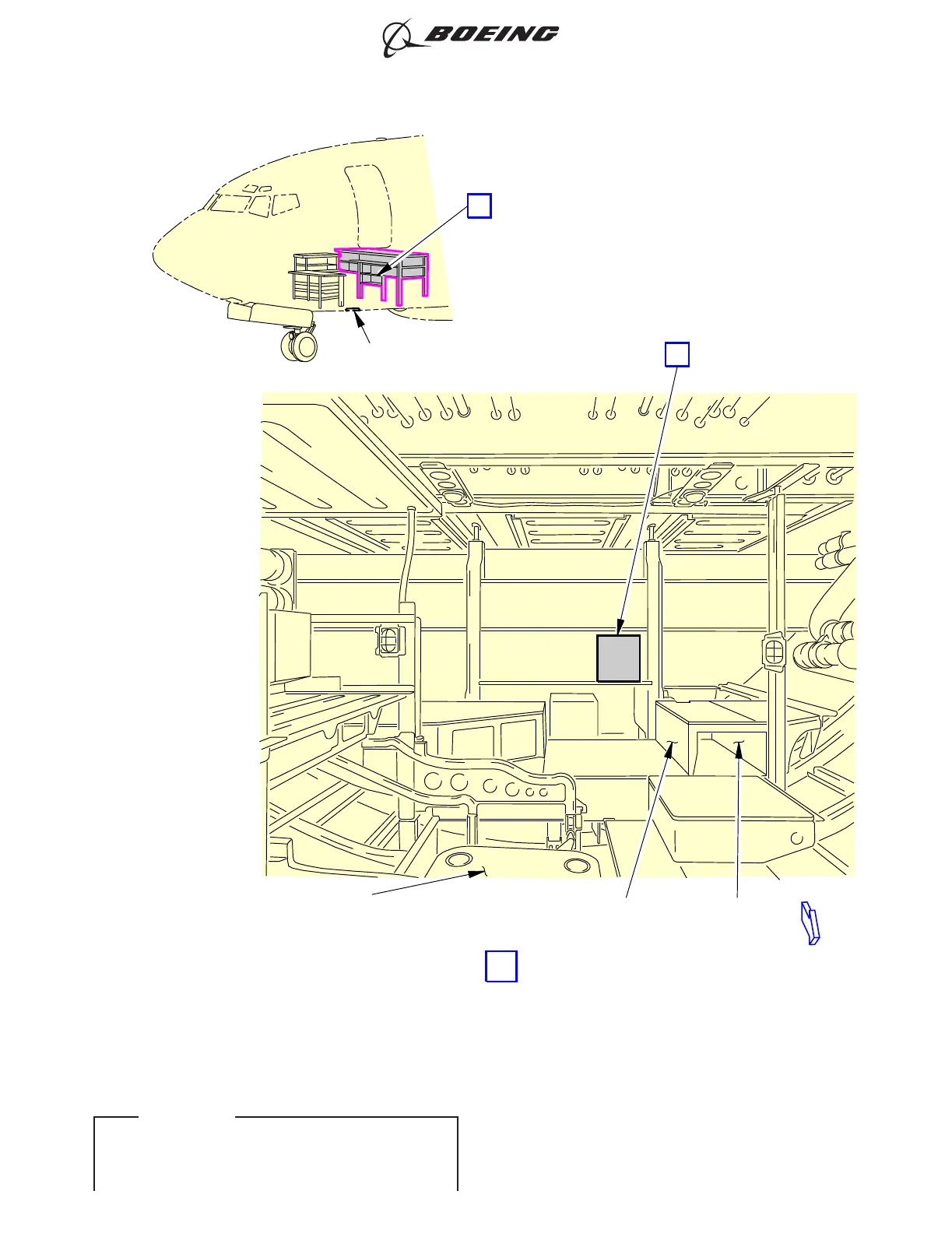

Auxiliary Battery Charger Installation
Figure 401/24-31-31-990-801 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-31-31
Page 405
D633A101-ILF Jun 15/2018
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 493-500, 560, 561, 563, 564, 567-569, 581, 583, 585,
589, 590, 597-599, 601-603, 606, 607, 610-615, 620,
625-627, 671, 672, 691-699, 835, 838, 841, 842, 851, 852,
857, 858, 947, 948, 968-973, 980-999
