Boeing 737-600 - Page 337

A
A
FWD
ELECTRONIC EQUIPMENT RACKS, E2, E3 AND E4
ELECTRONIC
EQUIPMENT
ACCESS DOOR,
117A
ELECTRONIC
EQUIPMENT RACKS,
E2, E3 AND E4
[1] TRANSFORMER
RECTIFIER
UNIT 2 (E4-2)
[1] TRANSFORMER
RECTIFIER
UNIT 1 (E2-1)
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
[1] TRANSFORMER
RECTIFIER
UNIT 3 (E4-2)
G21928 S0006566339_V3

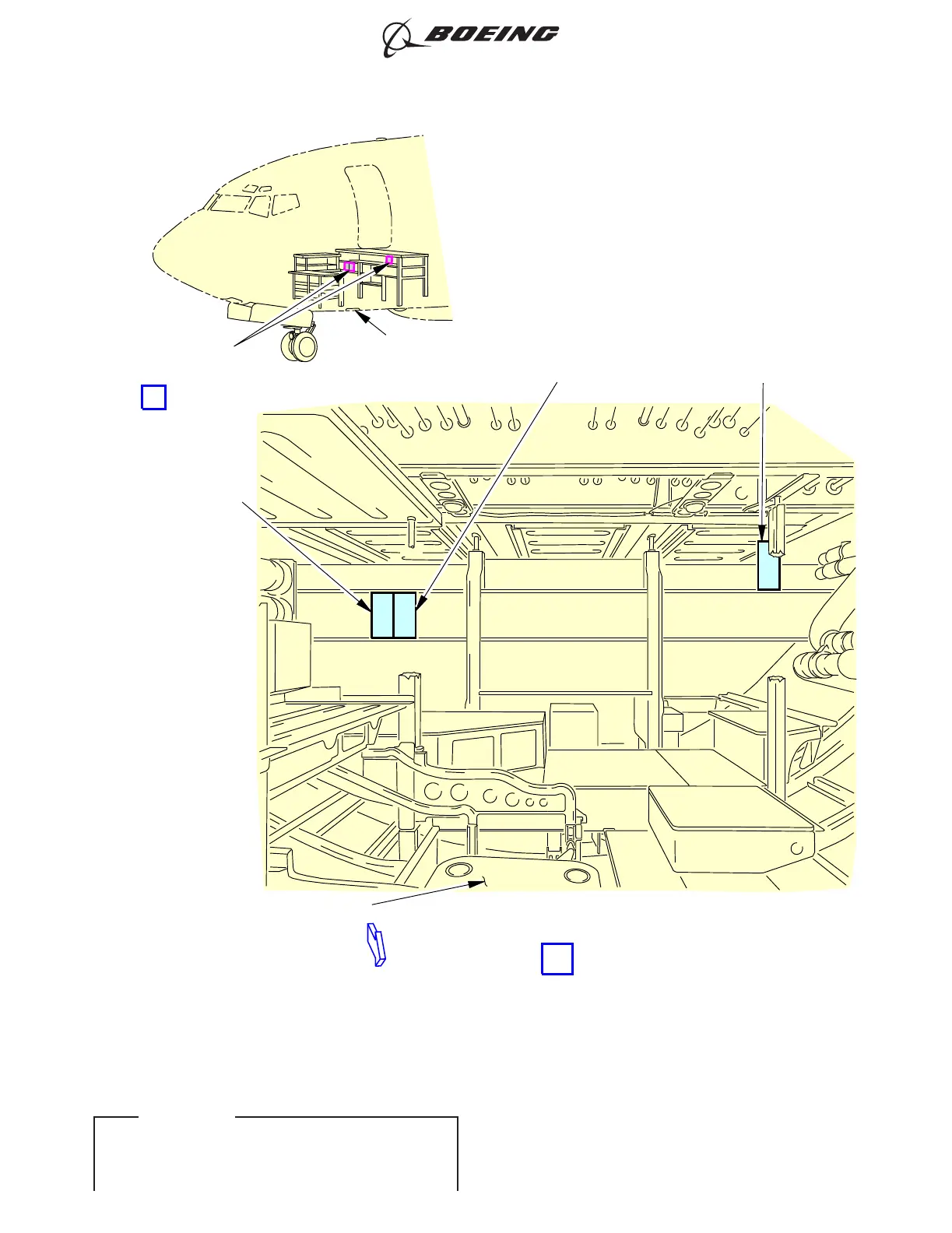

Transformer Rectifier Units (TRU) Installation
Figure 401/24-32-11-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-32-11
Page 403
D633A101-ILF Jun 15/2016
