[5] SCREW
(2 LOCATIONS)
CONTROL WIRES
[1] RCCB
[4] WASHER
(2 LOCATIONS)
[3] LOCKWASHER
(2 LOCATIONS)
[2] NUT
(2 LOCATIONS)
J9 SHIELD
WIRES
G17393 S0006566380_V2

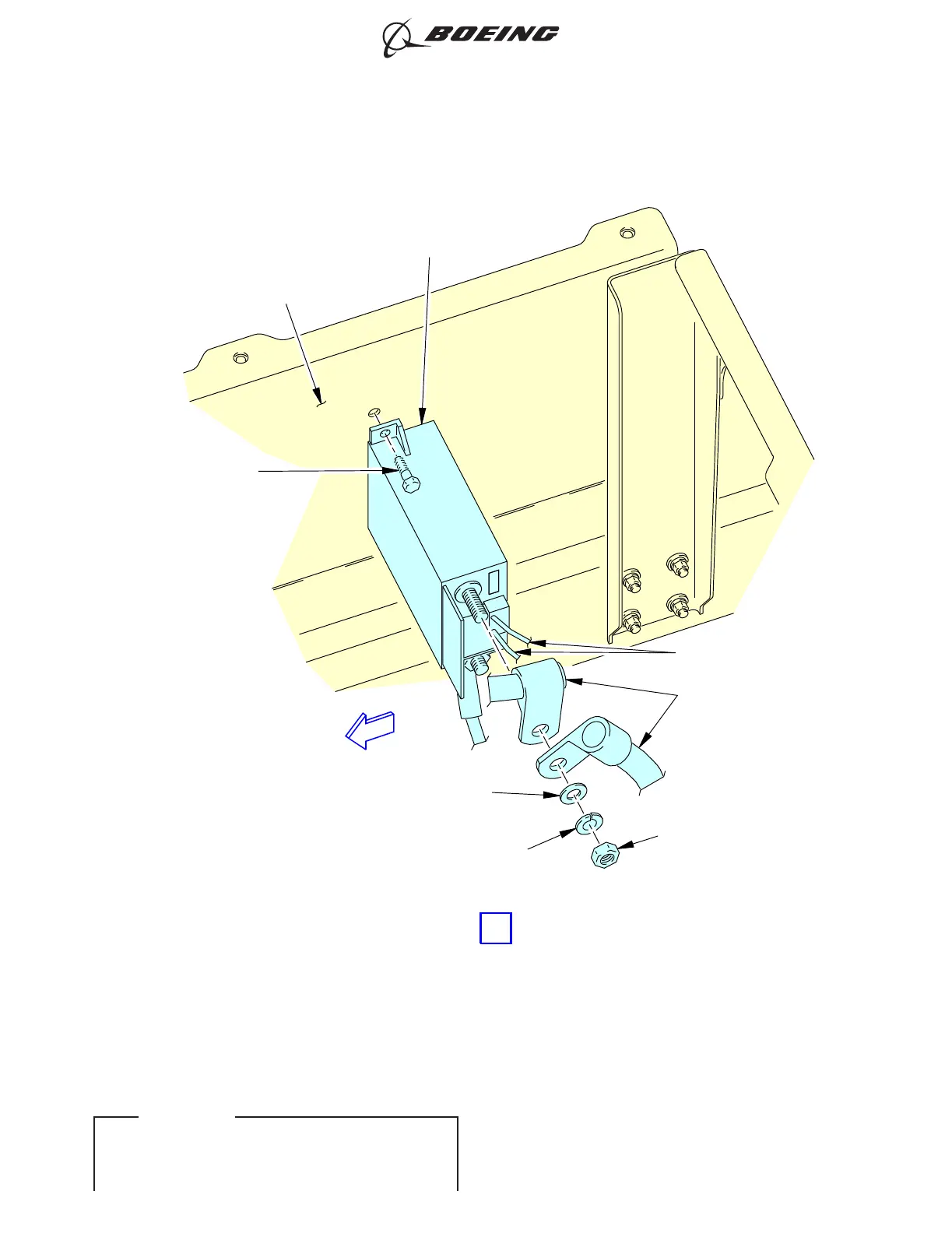

Static Inverter Remote Control Circuit Breaker (RCCB) Installation
Figure 401/24-34-31-990-801-001 (Sheet 3 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-34-31
Config 1
Page 405
D633A101-ILF Jun 15/2019
