Boeing 737-600 - Page 39

A
F
W
D
A
OIL LEVEL
INDICATOR
PRESSURE
FILL FITTING
PRESSURE
FILL COVER
PUSH-TO-VENT
VALVE
DRAIN INTO
CONTAINER
PRESSURE REGULATOR
(PART OF PRESSURE
TEST ASSEMBLY)
COMPRESSED AIR
OR REGULATED
NITROGEN
SOURCE
PRESSURE RELIEF VALVE
(PART OF PRESSURE TEST
ASSEMBLY) "PUSH TO VENT"
PRESSURE TEST
ASSEMBLY
SHUT-OFF
VALVE
F93627 S0006566124_V3

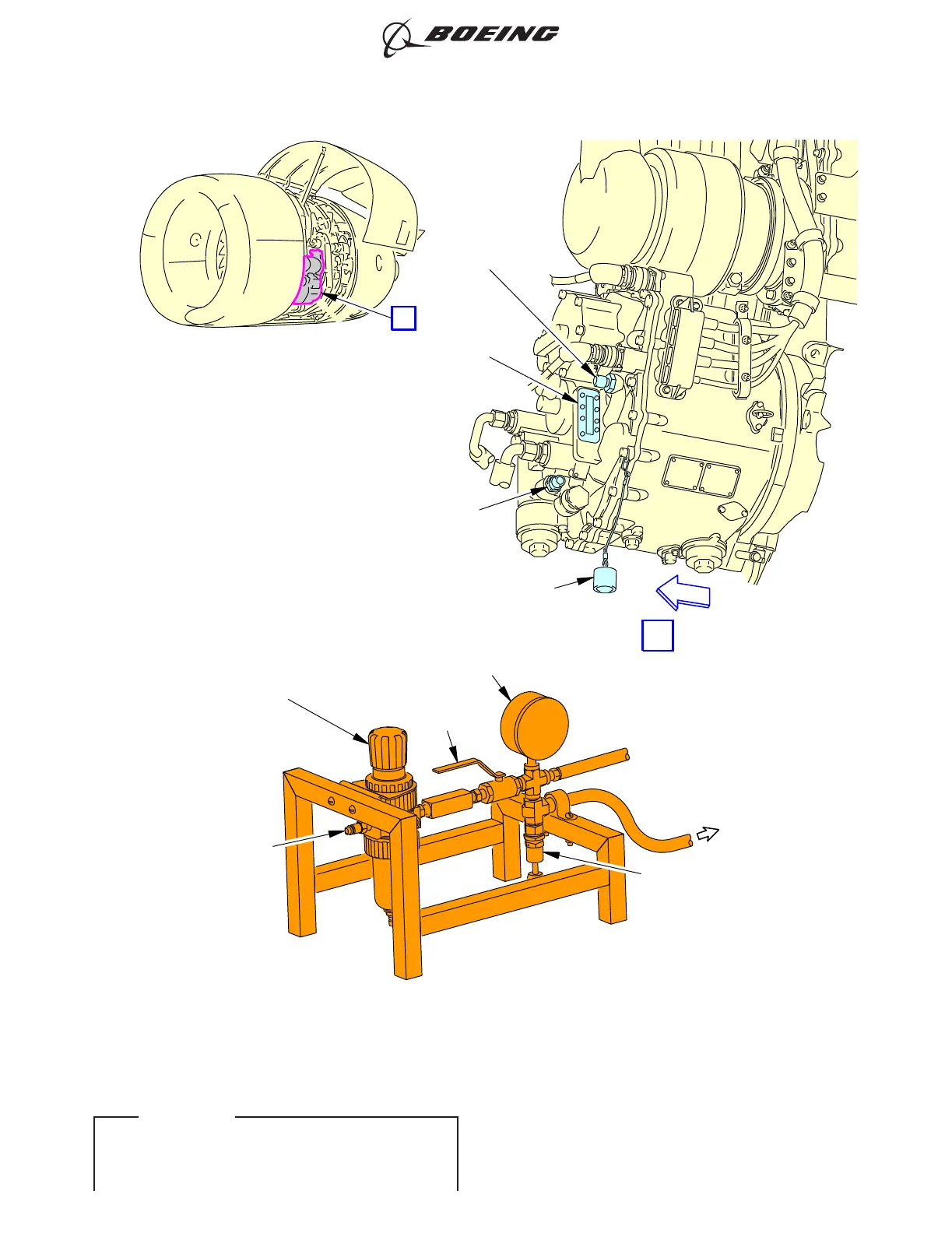

IDG Oil System Static Leak Check
Figure 202/24-11-00-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-11-00
Page 207
D633A101-ILF Oct 15/2015
