C
FWD
B
D
F
W
D
C
[10] COVER ASSEMBLY
[5] LOCKWASHER
(2 LOCATIONS)
EXTERNAL POWER
RECEPTACLE PAN
[1] EXTERNAL POWER
RECEPTACLE
[11] NUT
(4 LOCATIONS)
ELECTRICAL
LEADS
[6] NUT
(2 LOCATIONS)
[4] WASHER
(2 LOCATIONS)
[12] WASHER
(4 LOCATIONS)
[13] WASHER
(4 LOCATIONS)
[2] BOLT
(4 LOCATIONS)
[3] WASHER
(4 LOCATIONS)
[14] NUT
(4 LOCATIONS)
[15] NUT
(4 LOCATIONS)
[16] WASHER
(4 LOCATIONS)
[8] LOCKWASHER
(4 LOCATIONS)
[9] NUT
(4 LOCATIONS)
[7] WASHER
(4 LOCATIONS)
NOSE LANDING GEAR WHEEL WELL
2103360 S0000447883_V3

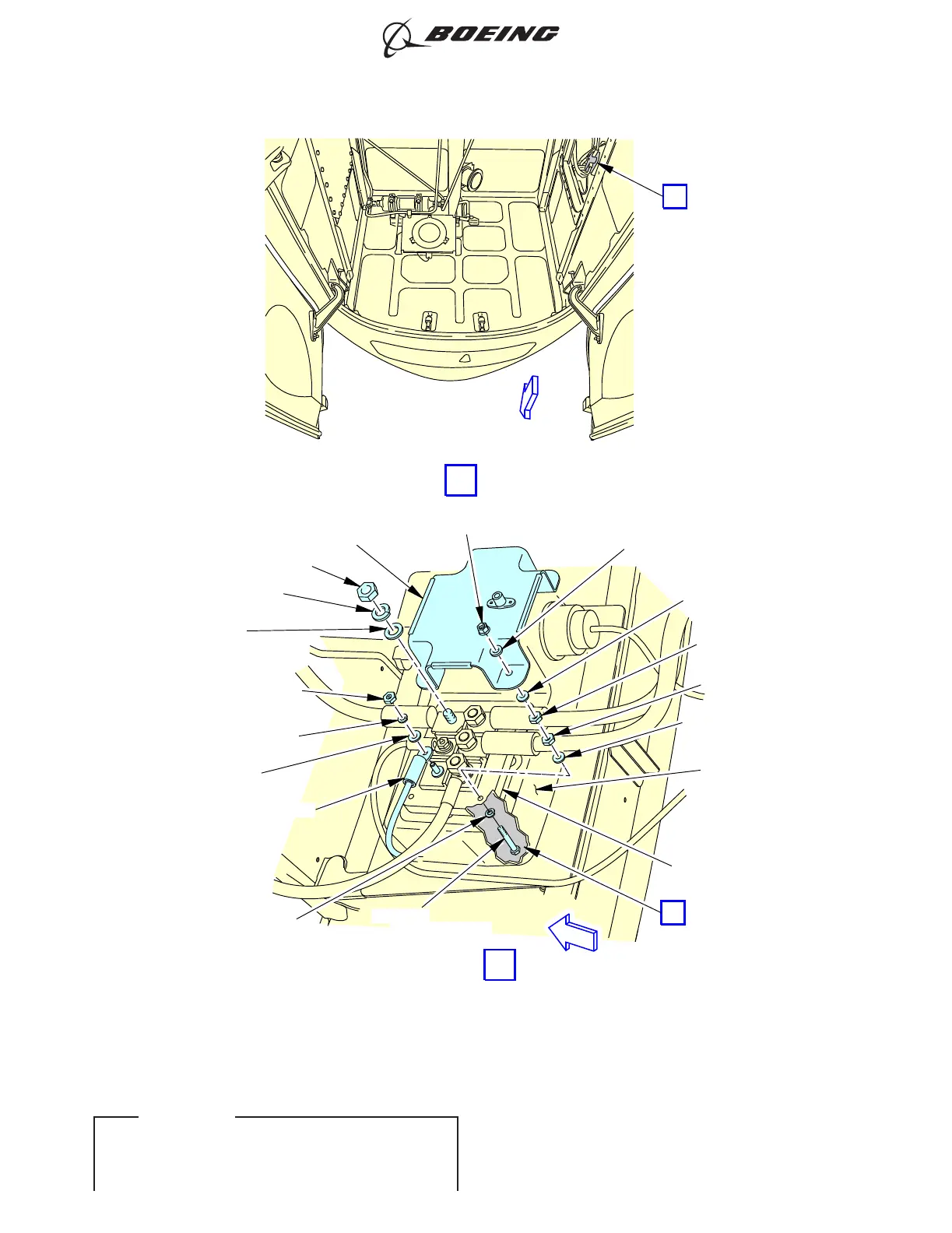

External Power Receptacle Installation
Figure 401/24-41-11-990-805-002 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-41-11
Config 2
Page 404
D633A101-ILF Oct 15/2017
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 593-599, 601-603, 606, 607, 610-615, 620,
625-627, 691-699, 833-835, 838
