Boeing 737-600 - Page 439

C
FWD
D
E
F
D
F
W
D
E
F
NOSE LANDING GEAR WHEEL WELL
LOCKWASHER
FLAT WASHER
TERMINAL
LUG
NUT
RECEPTACLE STUD BUILDUP
(EXAMPLE)
LOCKWASHER
FLAT WASHER
TERMINAL
LUG
BOLT
RECEPTACLE BUILDUP
(EXAMPLE)
[1] COVER ASSEMBLY
EXTERNAL POWER
RECEPTACLE PAN
[3] WASHER
(4 LOCATIONS)
[2] NUT
(4 LOCATIONS)
BOLT (TORQUE
240-300
POUND-INCHES)
(4 LOCATIONS)
NUT (TORQUE 15-20
POUND-INCHES)
(2 LOCATIONS)
2067953 S0000429814_V2
External Power Receptacle Inspection

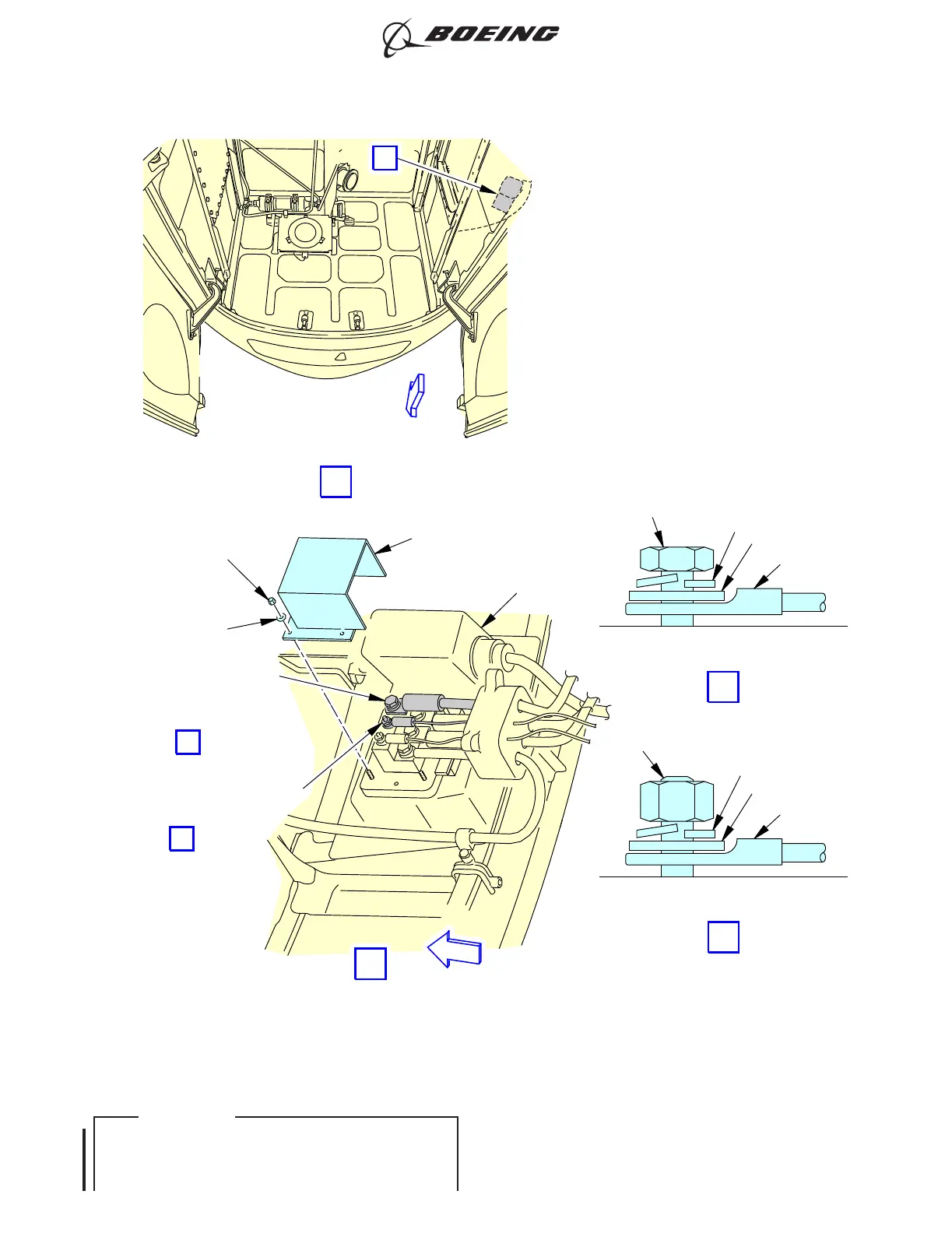

Figure 602/24-41-11-990-803 (Sheet 3 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-41-11
Page 610
D633A101-ILF Oct 15/2019
