C
B
INBD
INBD
C
1
15mm-WRENCH
APPROXIMATE 15˚
ELECTRICAL
CONNECTOR
[2] BOLT
[3] WASHER
(6 LOCATIONS)
C937
[1] EXTERNAL POWER
CONTACTOR
POWER DISTRIBUTION PANEL 2, P92
USE 5mm-WRENCH TO HOLD THE SPACER NUTS IN PLACE WHILE
LOOSENING THE SCREWS ON THE ELECTRICAL CONNECTOR.
FAILURE TO USE WRENCH COULD RESULT IN DAMAGE TO HARDWARE.
F90313 S0006566416_V3
External Power Contactor Installation

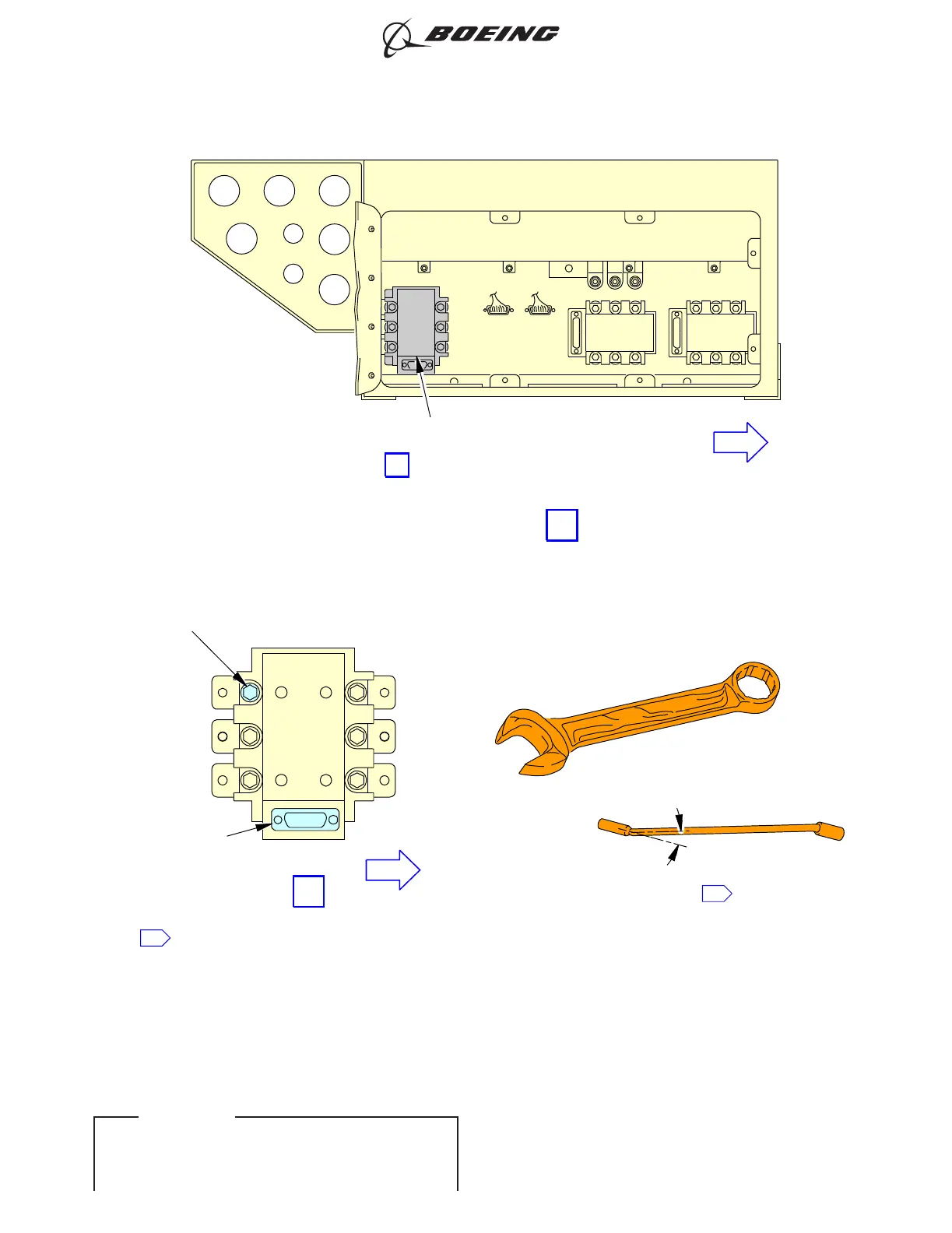

Figure 401/24-41-12-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-41-12
Page 404
D633A101-ILF Oct 15/2015
