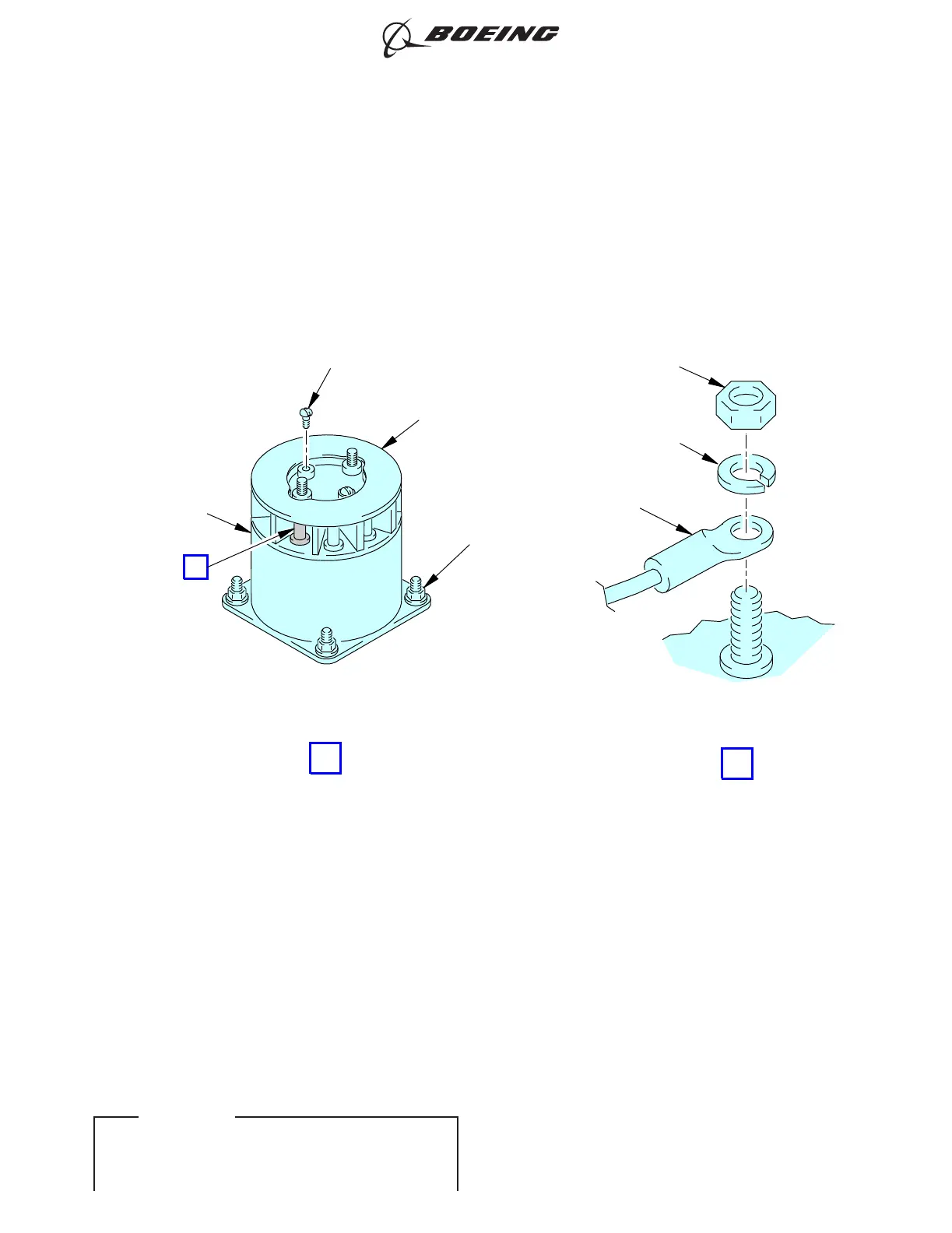

TERMINAL STUD BUILDUP
(EXAMPLE)
LOAD SHED RELAY
(EXAMPLE)
ELECTRICAL
WIRING
[6] NUT
[7] LOCKWASHER
[3] TERMINAL
COVER
[2] SCREW
(2 LOCATIONS)
[1] RELAY
[4] NUT
[5] WASHER
(4 LOCATIONS)
G06463 S0006566431_V2
Load Shed Relay Installation
Figure 401/24-51-11-990-801 (Sheet 3 of 3)
