Boeing 737-600 - Page 495

INBD
C
B
D
C
D
P91 PANEL
ELECTRICAL
WIRING
[6] NUT
[7] LOCKWASHER
TERMINAL STUD BUILDUP
(EXAMPLE)
[3] TERMINAL
COVER
[2] SCREW
(2 LOCATIONS)
[1] RELAY
[4] NUT
[5] WASHER
(4 LOCATIONS)
CROSS BUS TIE RELAY
(EXAMPLE)
464992 S0000140181_V2

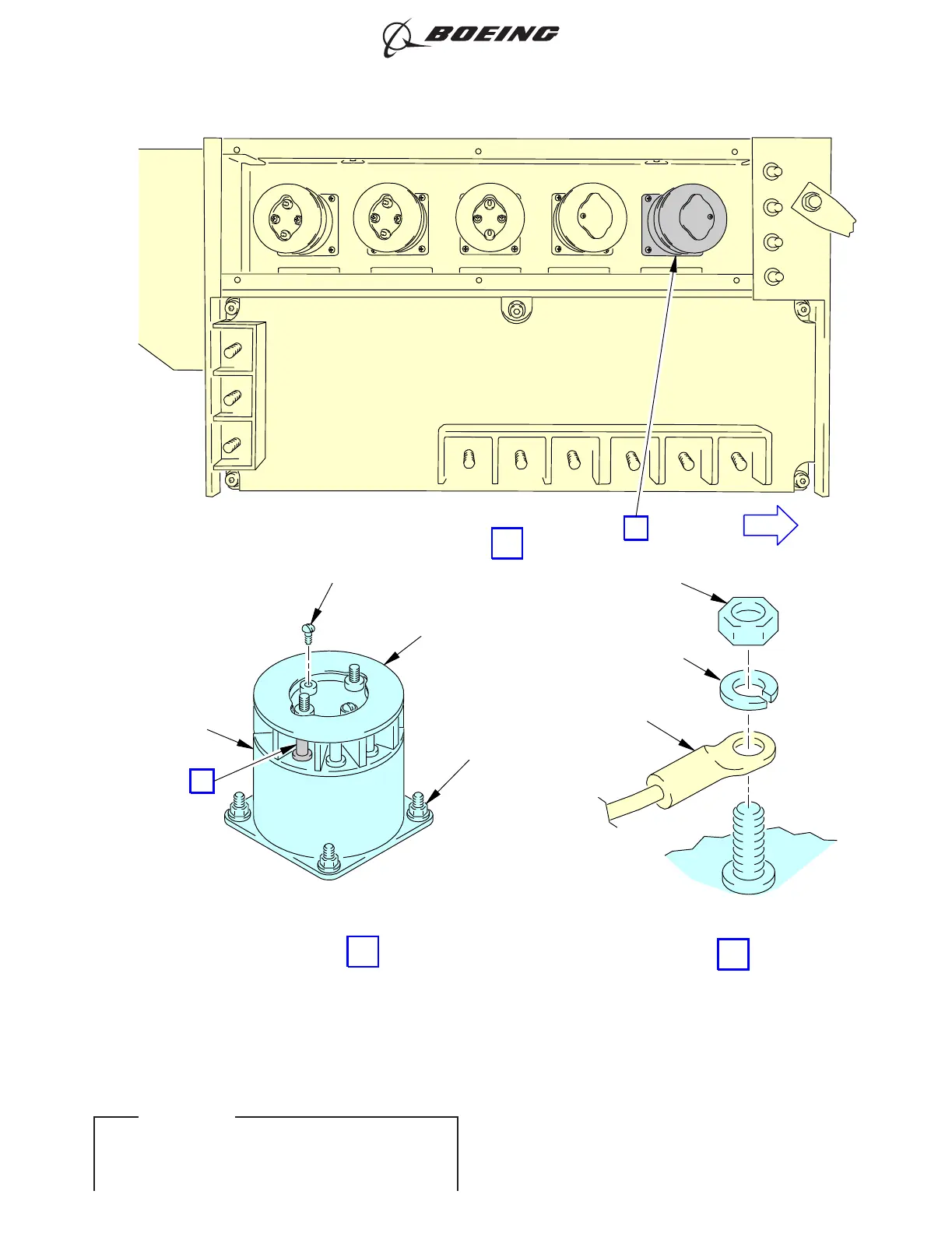

Cross Bus Tie Relay Installation
Figure 401/24-61-01-990-801 (Sheet 2 of 2)
