[6] VALVE
[12] SCREW
[10] JUMPER
[11] WASHER
[7] NUT
[8] WASHER
[6] VALVE
[4] COUPLING
[5] DUCT
ASSEMBLY
(INBOARD)
[3] COUPLING
[1] ELECTRICAL
CONNECTOR
[2] DUCT
ASSEMBLY
(OUTBOARD)
BLOWOUT
DOOR
UNDERWING
FARING
WING
F21631 S0006573051_V3

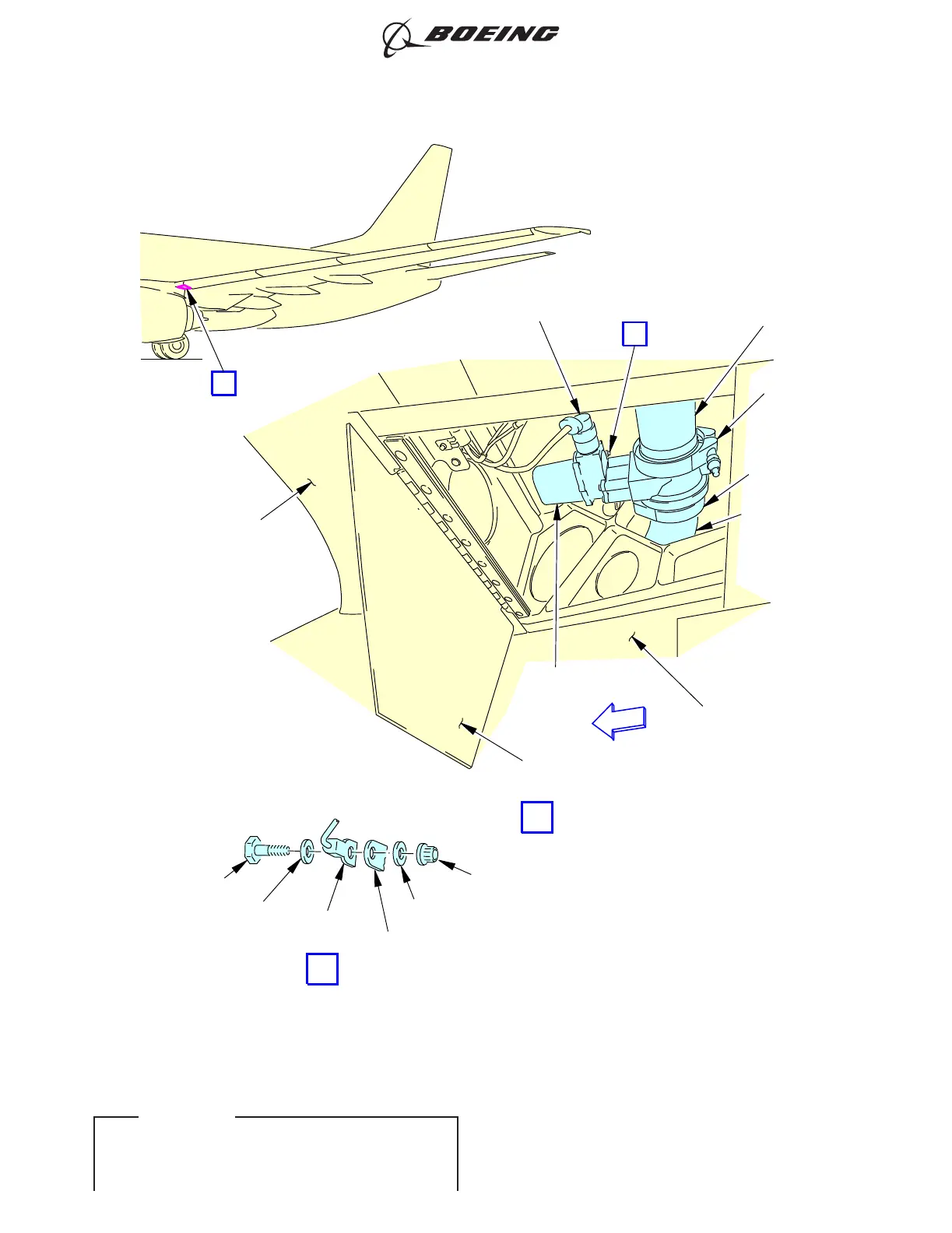

Wing Thermal Anti-Icing Shutoff Valve Installation
Figure 401/30-11-11-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-11-11
Page 403
D633A101-ILF Oct 15/2015
