Boeing 737-600 - Page 637

B
I
N
B
D
F
W
D
I
N
B
D
F
W
D
C
SLAT
[31] RIB END
[43] WASHER
(2 LOCATIONS)
[25] RETAINING BOLT
(2 LOCATIONS)
[27] SPRAY DUCT
[43] WASHER (QTY 2)
(2 LOCATIONS)
[27] SPRAY
DUCT
[31] RIB END
[24] BLADE SEAL
[33] WASHER (QTY 2)
(2 LOCATIONS)
[32] RETAINING BOLT
(3 LOCATIONS)
[44] WASHER
(QTY 2)
[34] SLEEVE
(3 LOCATIONS)
[35] SPRING
(3 LOCATIONS)
[36] SPACER
(3 LOCATIONS)
[37] SPRING
RETAINER
(3 LOCATIONS)
[25] RETAINING BOLT
(2 LOCATIONS)
SLAT
BLADE SEAL
(EXAMPLE)
RIB END (EXAMPLE)
[33] WASHER
2296257 S0000520679_V3

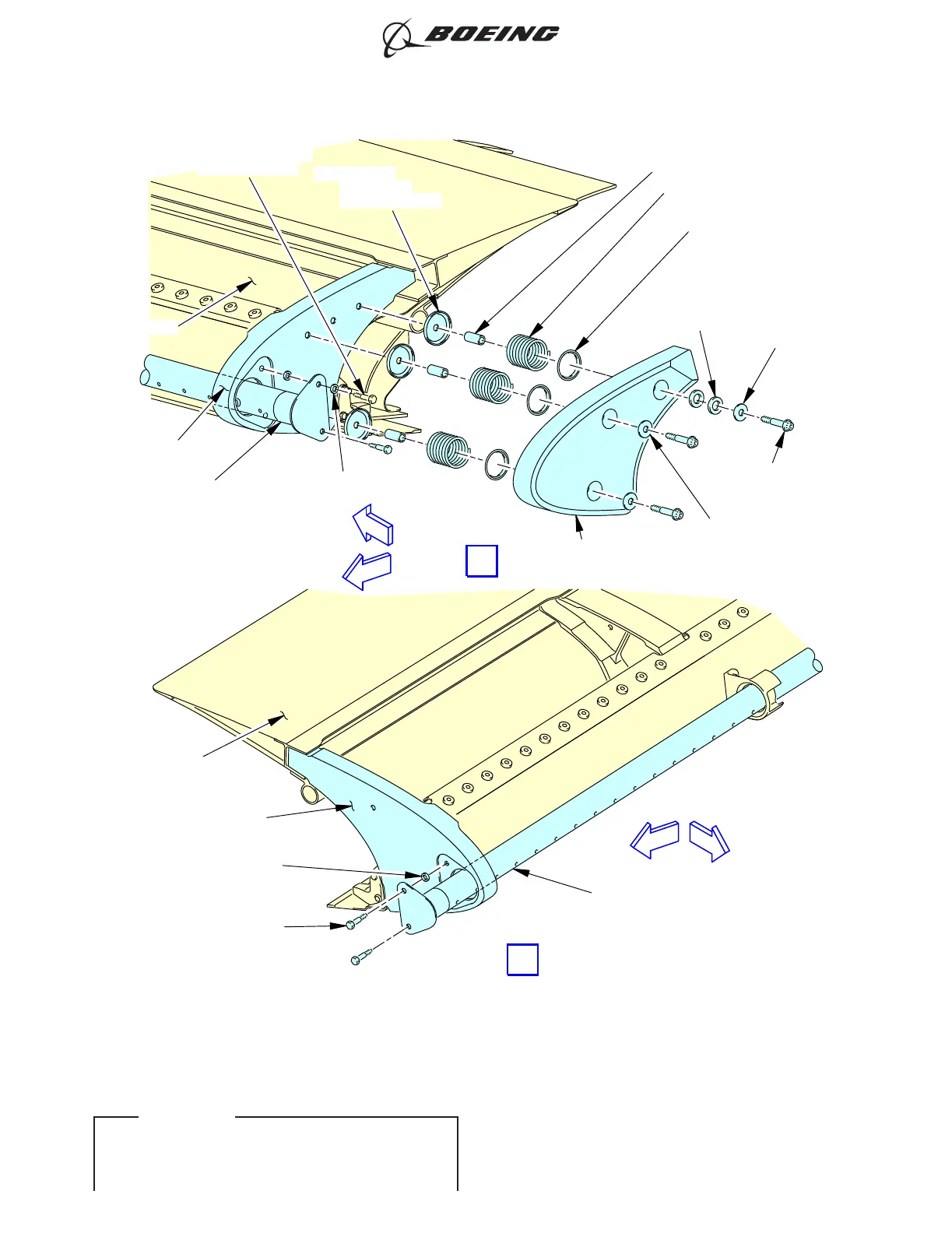

Wing Anti-Icing Telescoping Duct Installation
Figure 402/30-11-31-990-802 (Sheet 5 of 5)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-11-31
Page 442
D633A101-ILF Jun 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
