F
W
D
A
F
W
D
A-A
D
1
1
[4] ELECTRICAL
CONNECTOR,
DP1205
[13] ELECTRICAL
CONNECTOR,
DP1206
OIL-IN
UNION
OIL-OUT
UNION
[14] OIL-IN
LINE
[1] OIL-OUT
LINE
LOCKWIRE
[9] NUT
(4 LOCATIONS)
[7] COVER
[18] BOLT
[19] NUT
FANNING STRIP
[5] POWER FEEDER
LEADS
(4 LOCATIONS)
LANYARD
[19] NUT
[20] BOLT
[21] WASHER
[25] WASHER
[26] WASHER
[6] SCREW
(2 LOCATIONS)
[17] DRAIN
PLUG
POWER FEEDER
TERMINALS
(4 LOCATIONS)
LANYARD
[10] IDG
[15] IDG PUSH-TO-VENT
VALVE
LANYARD
[20] BOLT
[19] NUT
LANYARD
IDG FASTENER
[22] O-RING
[25] WASHER
[26] WASHER
[21] WASHER
MAINTAIN A CLEARANCE OF
0.03-0.13 INCH (0.762-3.302 mm)
BETWEEN LANYARD AND IDG
FASTENER.
[8] SCREW
(2 LOCATIONS)
[27] WASHER
(2 LOCATIONS)
433136 S0000140867_V11

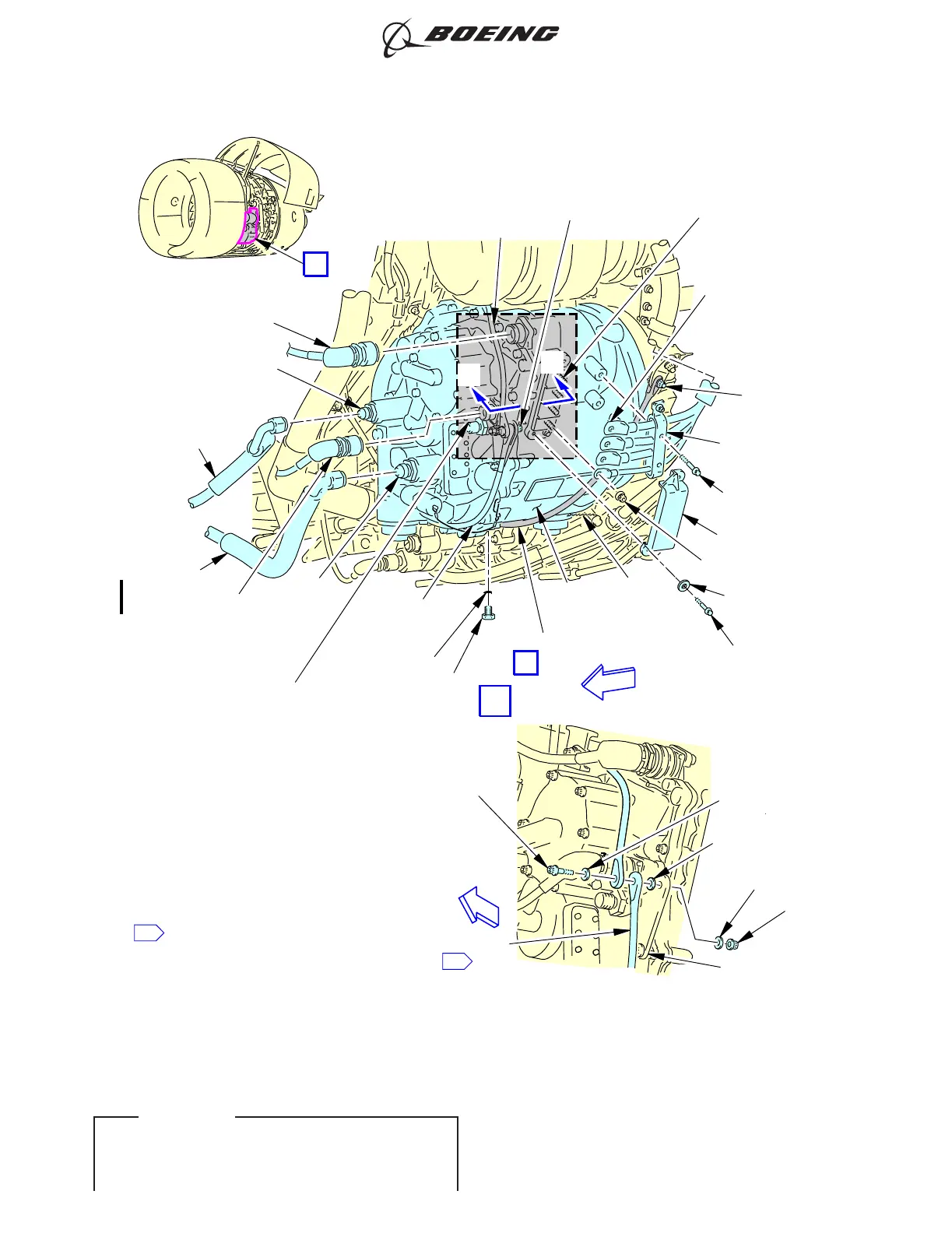

Integrated Drive Generator (IDG) Installation
Figure 401/24-11-11-990-801 (Sheet 2 of 5)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-11-11
Page 407
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 101, 151, 156-199, 331-399, 491-500, 535, 537, 553-557, 559-564,
567-569, 573-577, 581, 583, 585, 588-590, 592-599, 601-603, 606, 607,
610-615, 620, 625-627, 671, 672, 686, 691-699, 709, 710, 803-813, 821, 822,
831-838, 841, 842, 851, 852, 854-858, 861-863, 871-874, 947, 948, 968-973,
980-999; AIRPLANES WITH THE TWO LANYARDS TO THE SAME SIDE
OF THE BRACKET
