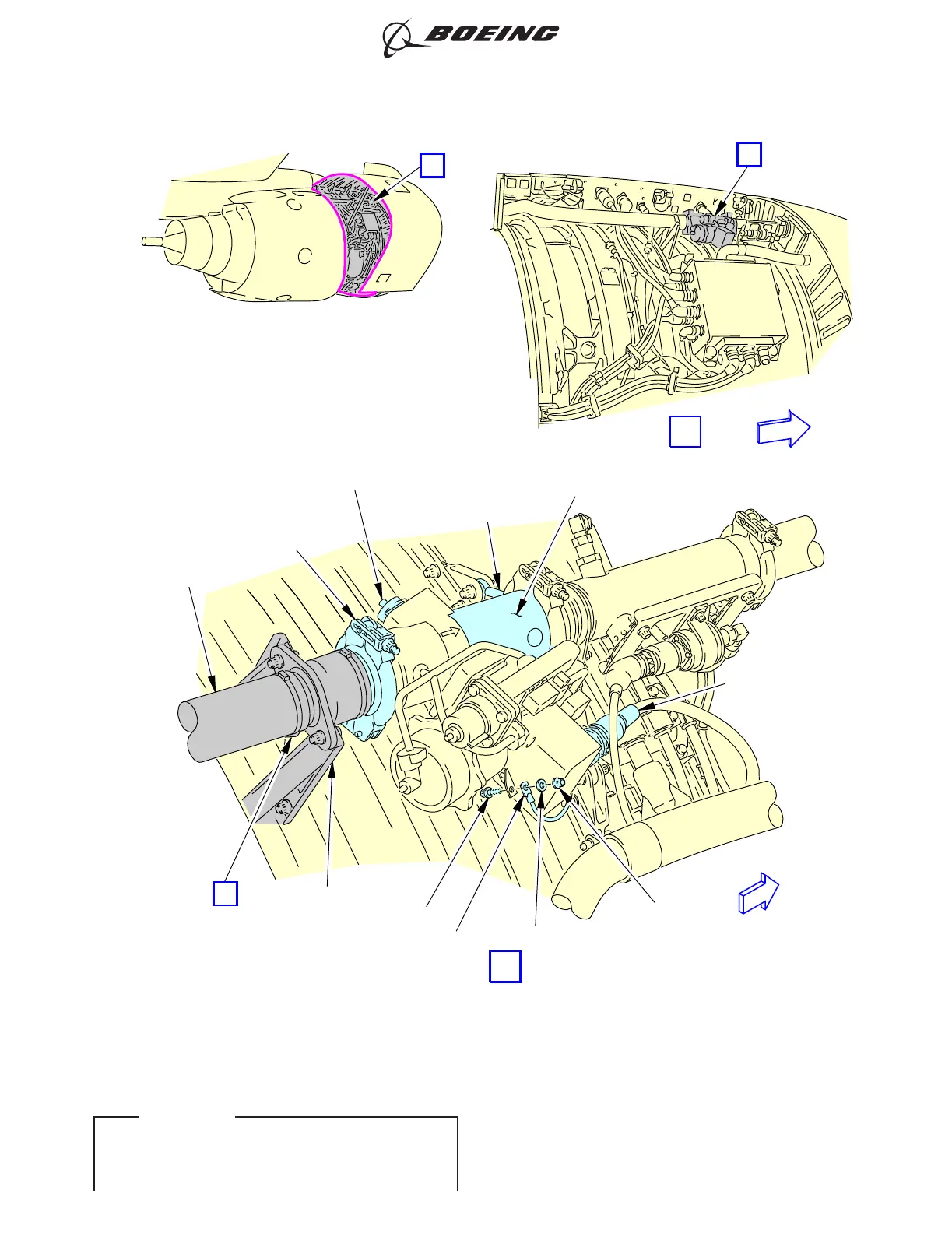

Engine Cowl TAI Valve Installation
Figure 401/30-21-11-990-801 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-21-11
Page 403
D633A101-ILF Oct 15/2015
