Boeing 737-600 - Page 772

A
F
W
D
A
2
2
TERMINAL
BLOCKS
FORWARD CARGO COMPARTMENT
ACCESS
PANEL
ACCESS
PANEL
FORWARD
CARGO
DOOR
WINDOW HEAT
TERMINAL
CONNECTIONS
WINDOW HEAT TERMINAL CONNECTIONS
(EXAMPLE)
TB5014
TB5010
TB5016
TB5012
TERMINAL
BOARD
E2-1
E2-1
E4-2
E4-2
SHELF
M323R FWD
R SIDE
L FWD
L SIDE
WINDOW
WHCU
M321
M322
M320
G25829 S0006573156_V2
Window Heat Conductive Coating Test

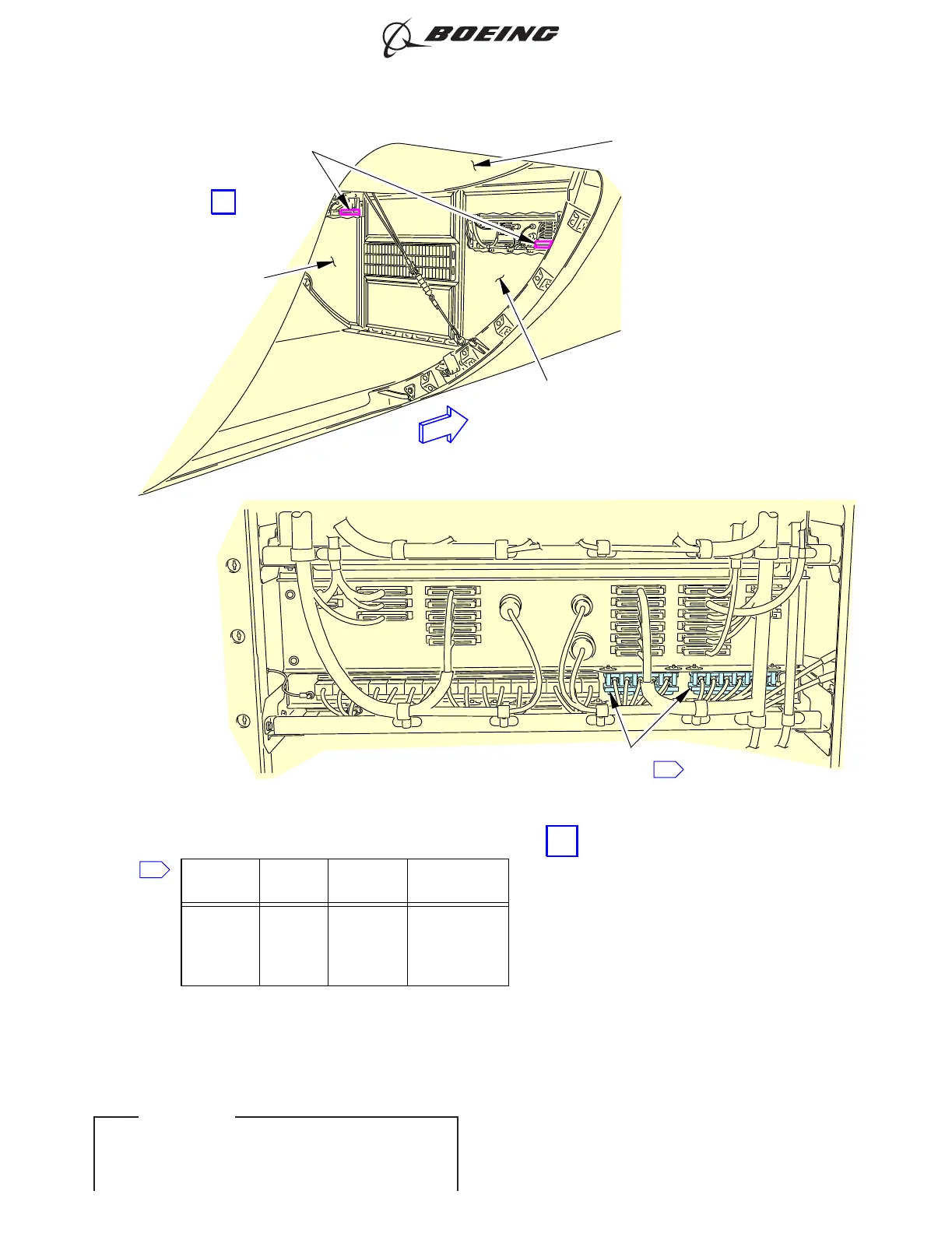

Figure 501/30-41-21-990-801 (Sheet 2 of 2)
