Boeing 737-600 - Page 783

A
A
A
FLIGHT COMPARTMENT
THERMAL SWITCH (WINDOW NO. 3)
(EXAMPLE)
WINDOW
SPRING
BRACKET
[2] THERMAL
SWITCH
WINDOW
FRAME
BOLTS
[1] ELECTRICAL
LEADS
(2 LOCATIONS)
SPRING
SLOT
THERMAL SWITCH
(WINDOW NO. 3)
THERMAL SWITCH
(WINDOW NO. 3)
J73811 S0000177463_V2

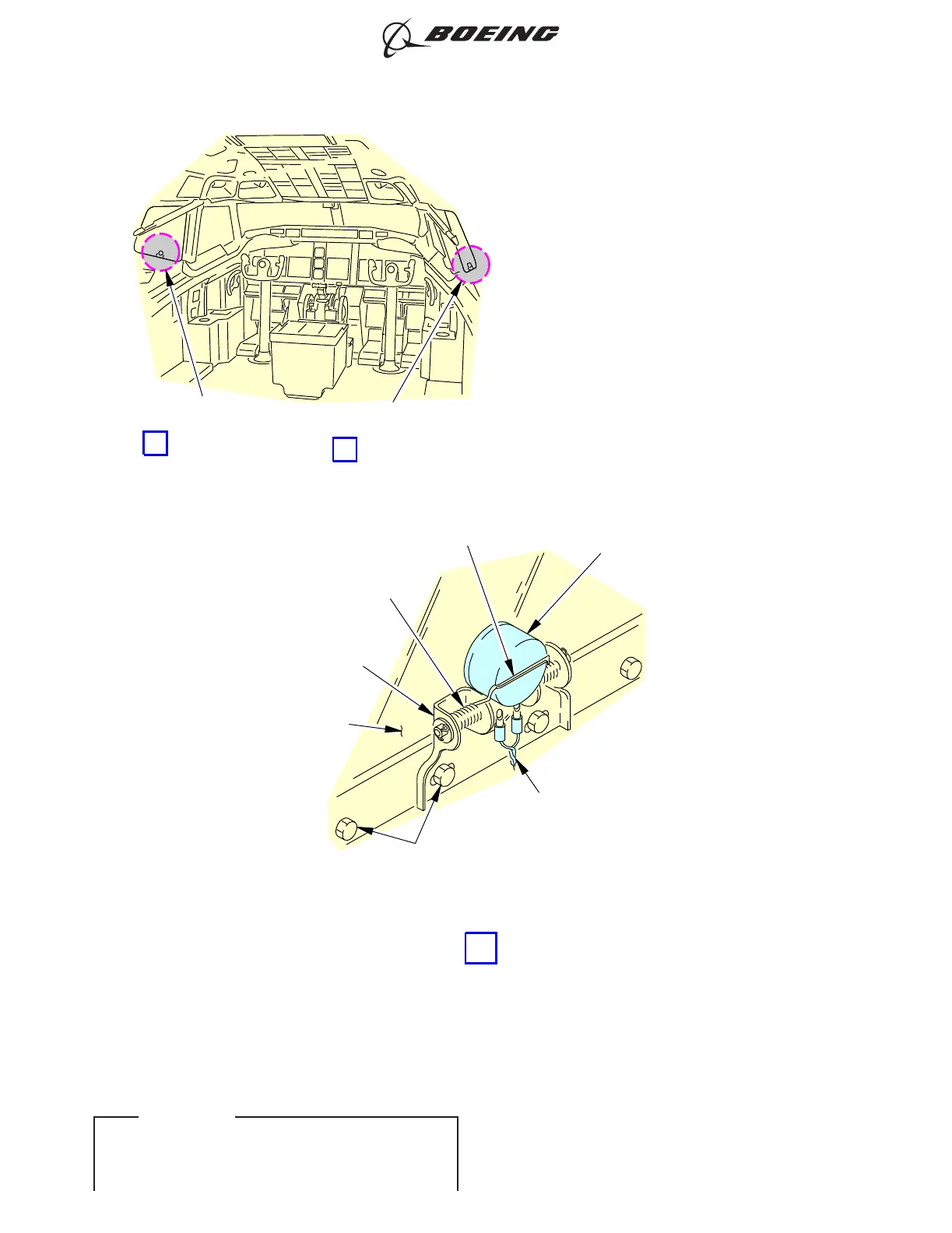

Window Heat Thermal Switch Installation
Figure 401/30-41-31-990-801 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-41-31
Page 405
D633A101-ILF Feb 15/2019
