Boeing 737-600 - Page 828

A
A
B
B
C
D
MID-STROKE
ARM POSITION
84˚ ±4˚
WINDSHIELD WIPER SWITCH
[5] BOLT
[6] LOCKWIRE
[7] BOLT
[8] WASHER
[4] ADJUSTMENT
SCREW
[3] ARM
ASSEMBLY
[1] NUT
[2] WASHER
25˚ ±1˚
WINDSHIELD WIPER
FLIGHT COMPARTMENT
HIGH
LOW
INT
PARK
WIPER
[9] WIPER BLADE
G21461 S0006573192_V3
Windshield Wiper Arm - Maintenance Practices

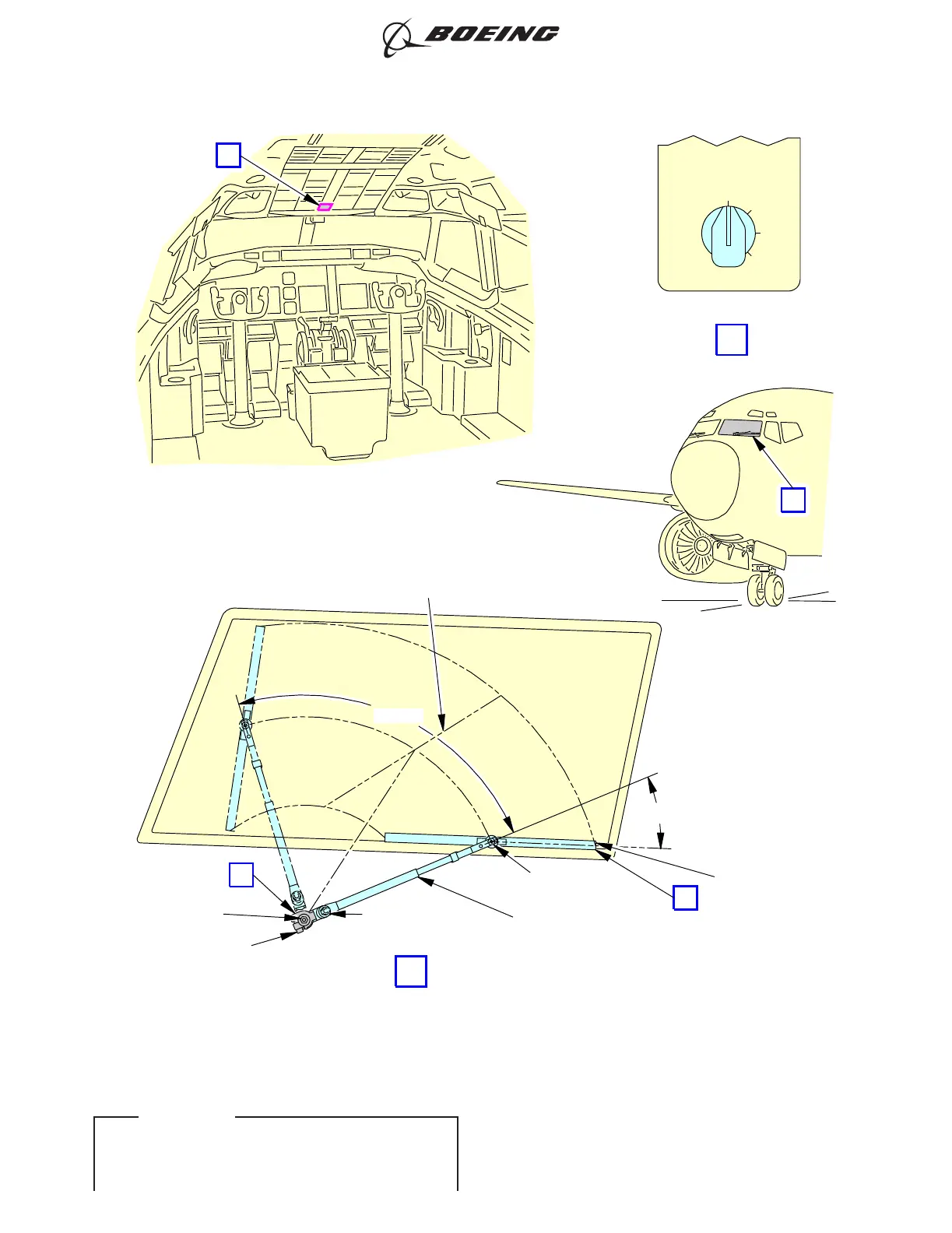

Figure 201/30-42-31-990-801 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-42-31
Page 204
D633A101-ILF Jun 15/2017
