Boeing 737-600 - Page 865

B
1
B
FWD
1
WASTE TANK
HEATER
AFT CARGO
DOOR
AFT CARGO
COMPARTMENT
POTABLE
WATER
HEATERS
WATER SERVICE
PANEL
(INTERNAL VIEW)
AFT CARGO COMPARTMENT
HEATED HOSES BEHIND THE POTABLE
WATER TANK MAY BE ACCESSED THROUGH
THE PASSENGER COMPARTMENT FLOOR
G33939 S0006573209_V2

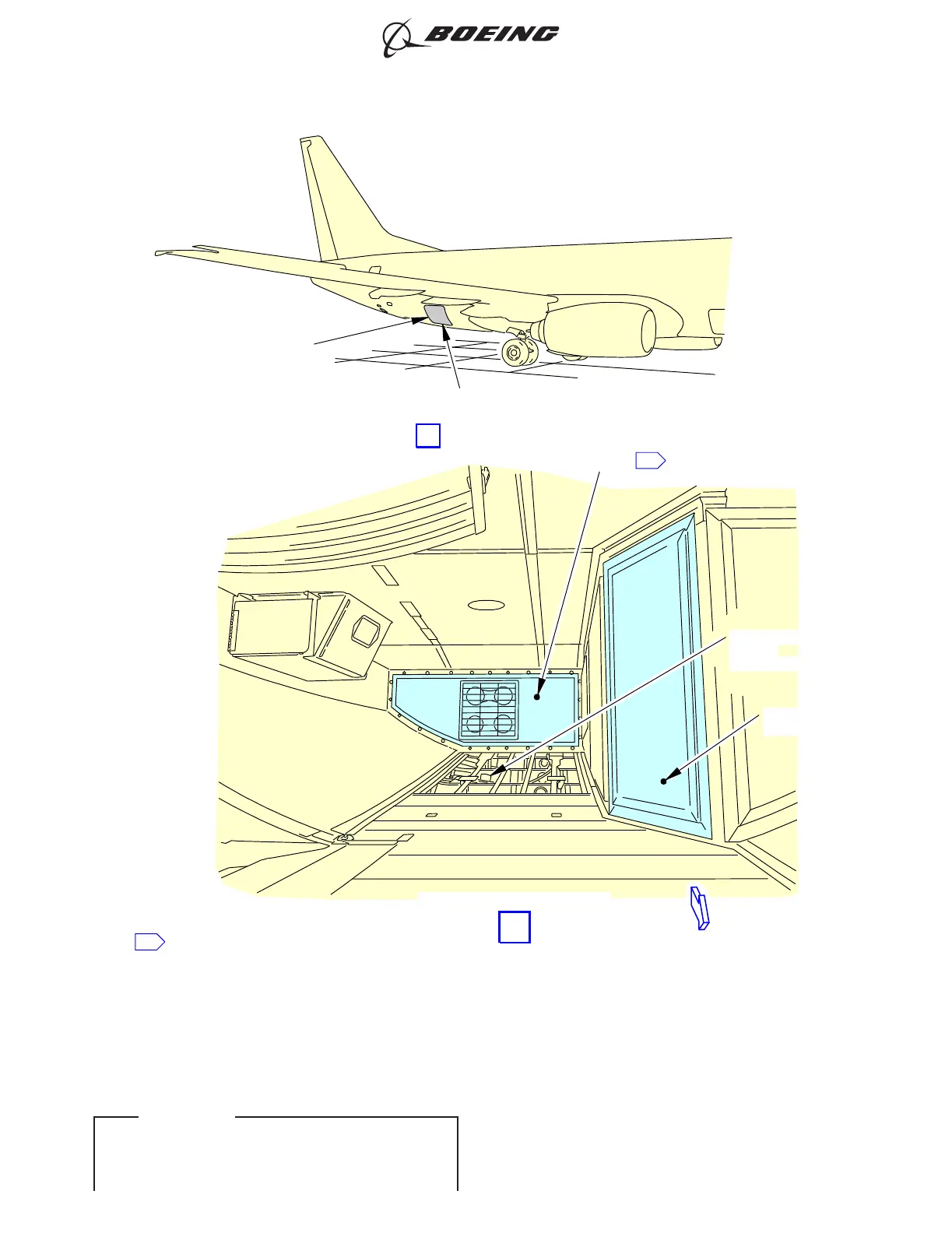

Drain and Water Supply Line Heater Access
Figure 501/30-71-00-990-801 (Sheet 2 of 3)
