HEATER BLANKET
(EXAMPLE)
[5] ELECTRICAL
CONNECTORS
[2] CLAMP
[3] SCREW
[4] WASHER
[7] NUT
[1] HEATER
BLANKET
[6] THERMOSTAT
HEATER
BLANKET
AFT CARGO
COMPARTMENT
AFT CARGO
DOOR
AFT CARGO COMPARTMENT
F92151 S0006573226_V3

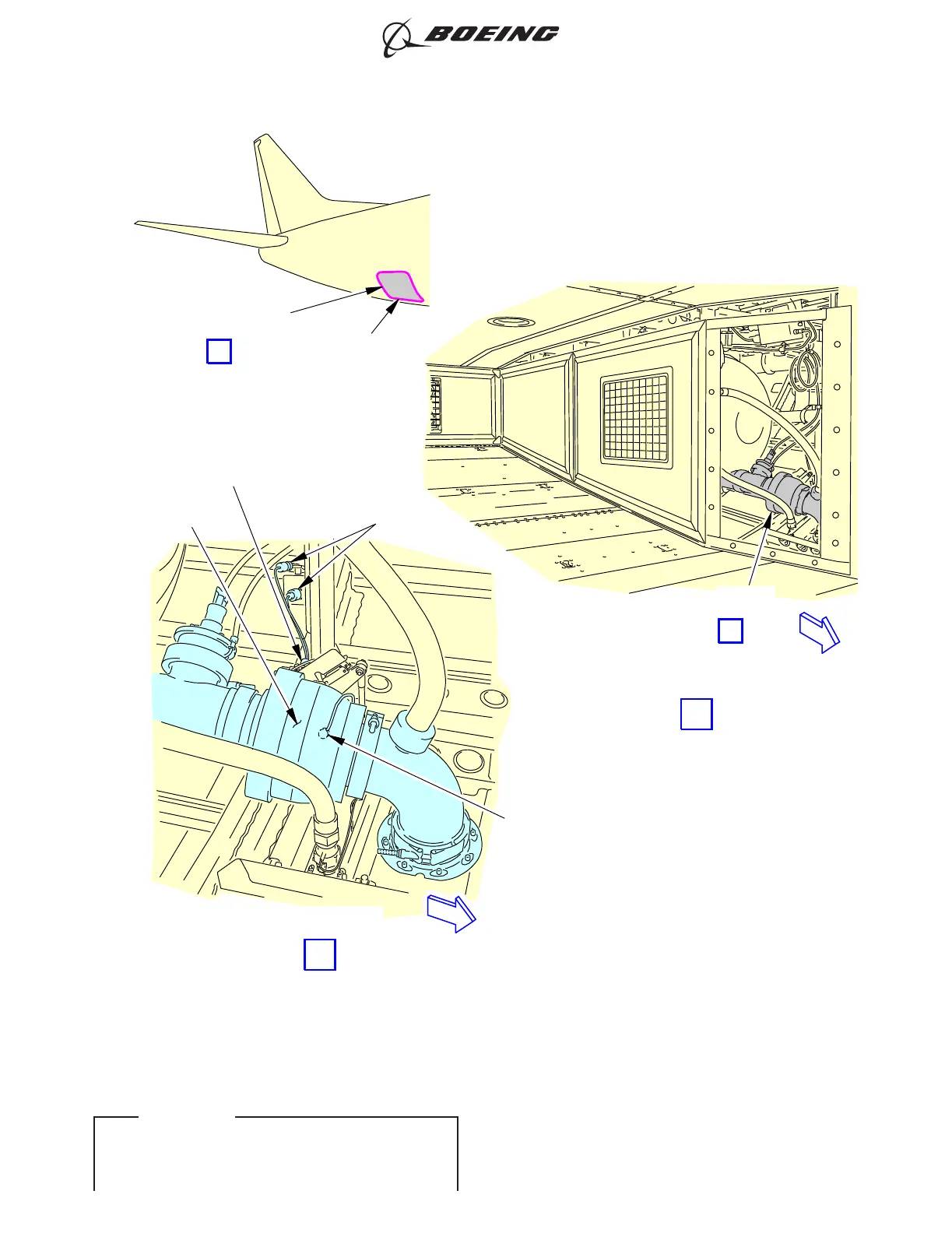

Waste Drain Line Heater Installation
