Boeing 737-600 - Page 887

A
B
A
F
W
D
B
F
W
D
AFT CARGO COMPARTMENT
WASTE TANK RINSE
FITTING ASSEMBLY
[1] RINSE
HOSE
[3] RINSE
FITTING
HEATER
THERMOSTAT
RINSE
FITTING
[2] RINSE
FITTING
HEATER
WASTE TANK RINSE FITTING ASSEMBLY
(INTERNAL VIEW)
AFT CARGO
DOOR
AFT CARGO
COMPARTMENT
G22184 S0006573231_V2

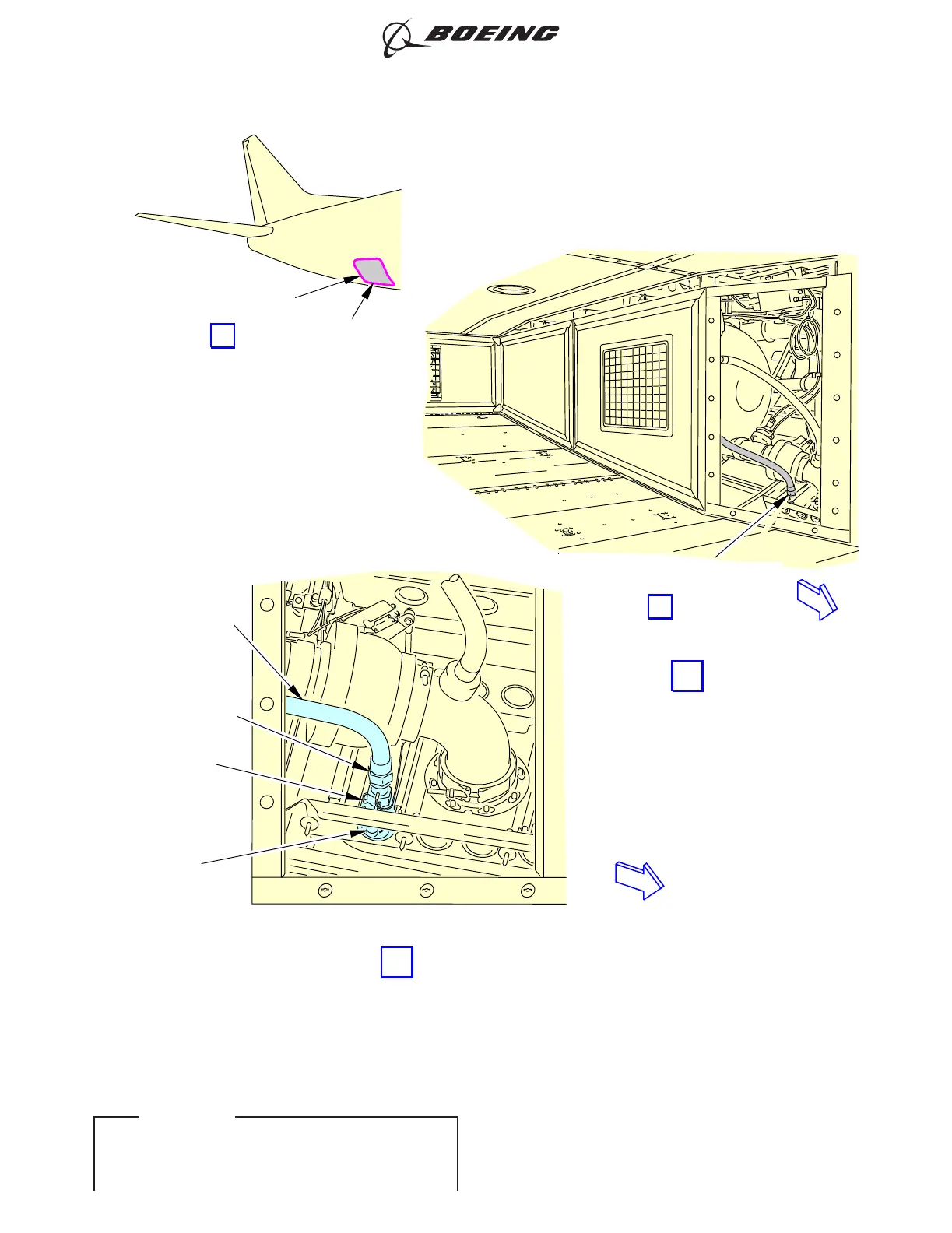

Waste Tank Rinse Fitting Heater Installation
Figure 401/30-71-04-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-71-04
Page 403
D633A101-ILF Oct 15/2015
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
