Boeing 737-600 - Page 893

A
1
FWD
1
A
AFT CARGO COMPARTMENT
AFT CARGO
COMPARTMENT
AFT CARGO
DOOR
POTABLE
WATER
HEATERS
WATER SERVICE
PANEL
(INTERNAL VIEW)
HEATED HOSES BEHIND THE POTABLE
WATER TANK MAY BE ACCESSED THROUGH
THE PASSENGER COMPARTMENT FLOOR
W01146 S0006573239_V2

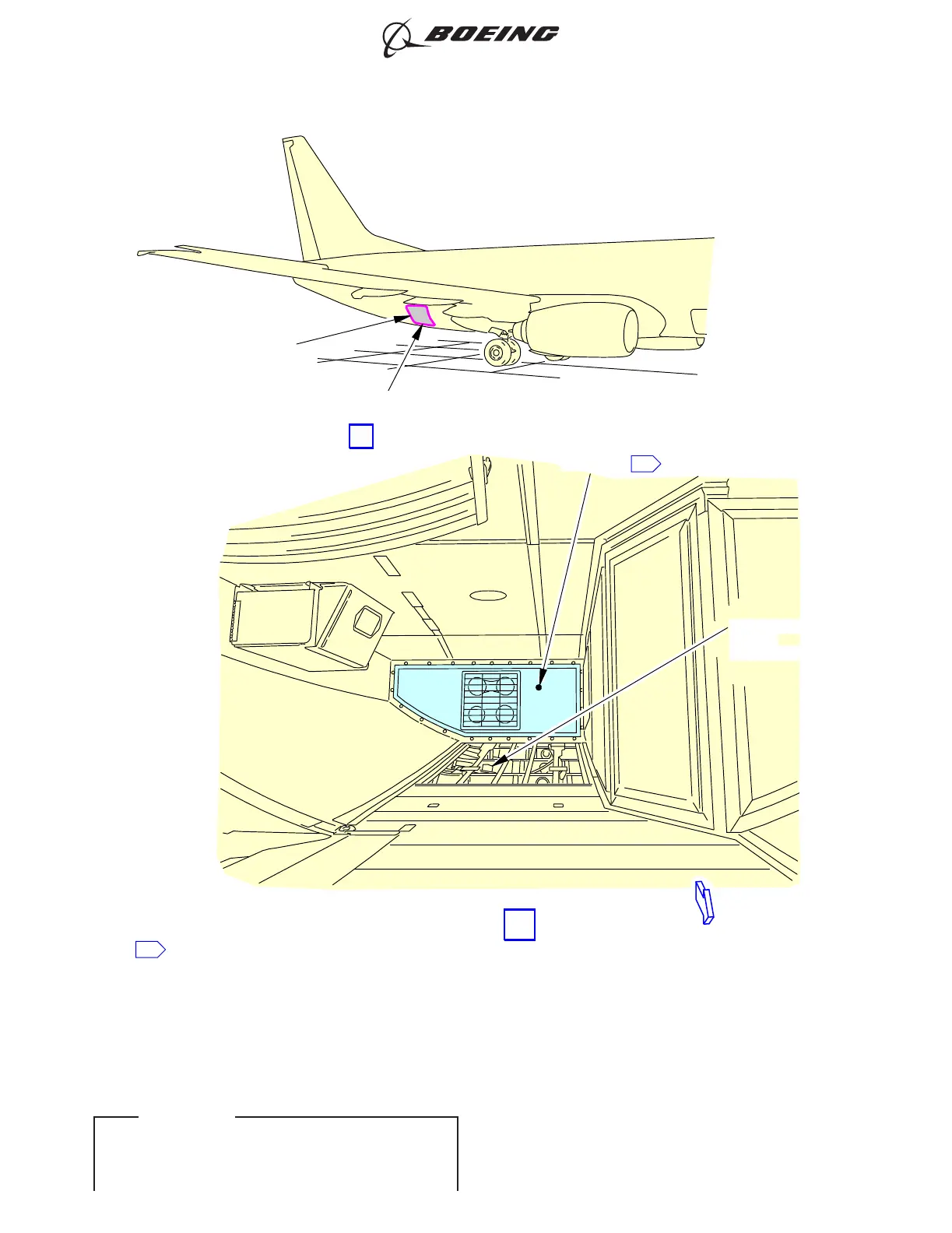

Heated Potable Water Hoses Installation
Figure 401/30-71-06-990-801 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
30-71-06
Page 403
D633A101-ILF Oct 15/2015
