Boeing 737-600 - Page 975

NGS INLET PRESSURE (PSIG)
NEA
PURITY
(%
02)
15 20 25 30 35 40 45 50
6
8
10
12
14
16
18
20
GSE GO-NO-GO CRITERIA AT LOW FLOW
LEGEND: ______
NEA PURITY SATISFACTORY (GO ZONE)
NEA PURITY NOT SATISFACTORY (NO-GO ZONE)
1495949 S0000271687_V1
GSE Go-No-Go Criteria

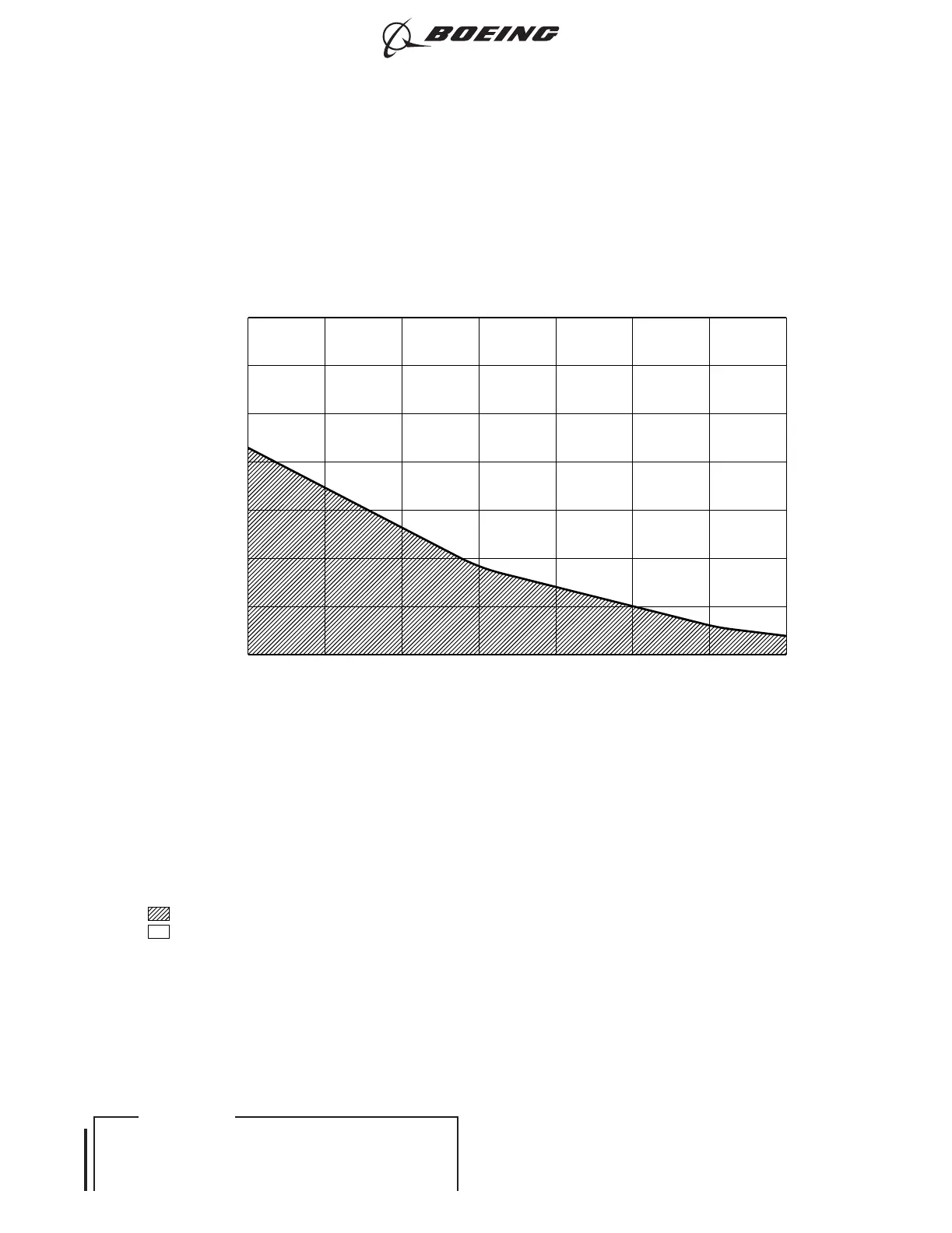

Figure 502/47-00-00-990-811 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-00-00
Page 509
D633A101-ILF Oct 15/2019
