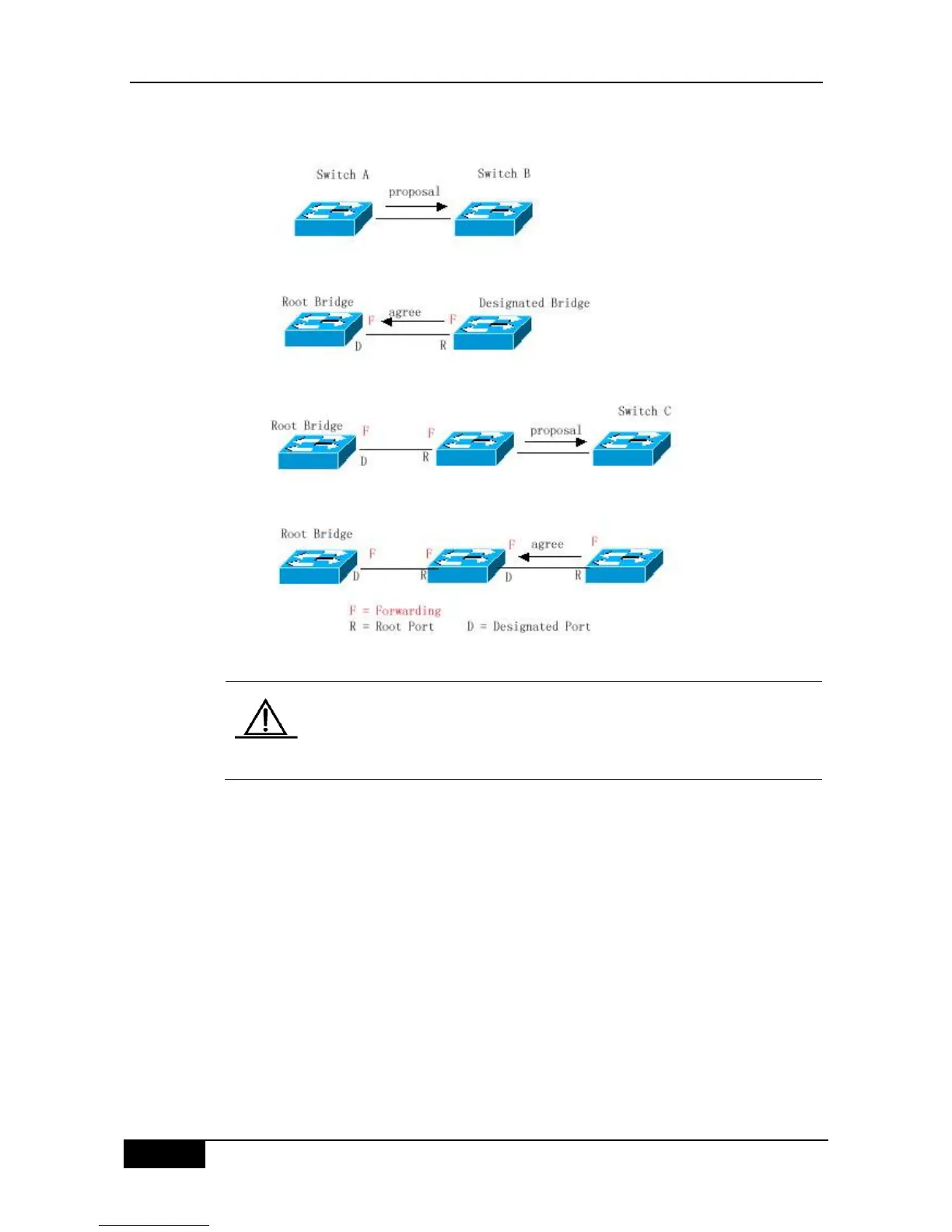

Figure 17-8
Caution
Certain conditions must be met before the above "handshaking" process
can take place, namely ―Point-to-point Connect‖ must be used between
ports. In order to maximize the power of you device, do not use
non-point-to-point connection between devices.
Other than Figure 17-9, other schematics in this chapter are the point-to-point connection.
The following lists the example figure of the Non point-to-point connection.
Example of Non Point-to-point Connection:
