D-Link xStack DGS-3610 Series

Chapter 46 VRRP Configuration DGS-3610 Series Configuration Guide
46-12
The above displayed information indicates the VRRP advertisement is received from
192.168.201.213 for VRRP group 1, whose priority is 120.
5. debug vrrp state command
DGS-3610# debug vrrp state
VRRP State debugging is on
DGS-3610#
%VRRP-6-STATECHANGE: GigabitEthernet 0/0 Grp 2 state Master -> Backup
%VRRP-6-STATECHANGE: GigabitEthernet 0/0 Grp 2 state Backup -> Master
DGS-3610# config terminal
Enter configuration commands, one per line. End with CNTL/Z.
DGS-3610(config)# interface GigabitEthernet 0/0
DGS-3610(config-if)# no shutdown
DGS-3610(config-if)# end
DGS-3610#
%VRRP-6-STATECHANGE: GigabitEthernet 0/0 Grp 2 state Master -> Init
DGS-3610#
The above displayed information indicates the VRRP group status on GigabitEthernet 0/0 is
shifting among Master, Backup and Init.
46.5 Example of Typical VRRP
Configuration
In the connections shown in Figure 47-4, VRRP backup is configured on devices R1 and R2
to provide the VRRP service for internal network segment 192.168.201.0 /24. Device R3 is
not configured with VRRP but just the common routing functions. The configurations below
provide the related VRRP settings of devices R1 and R2.

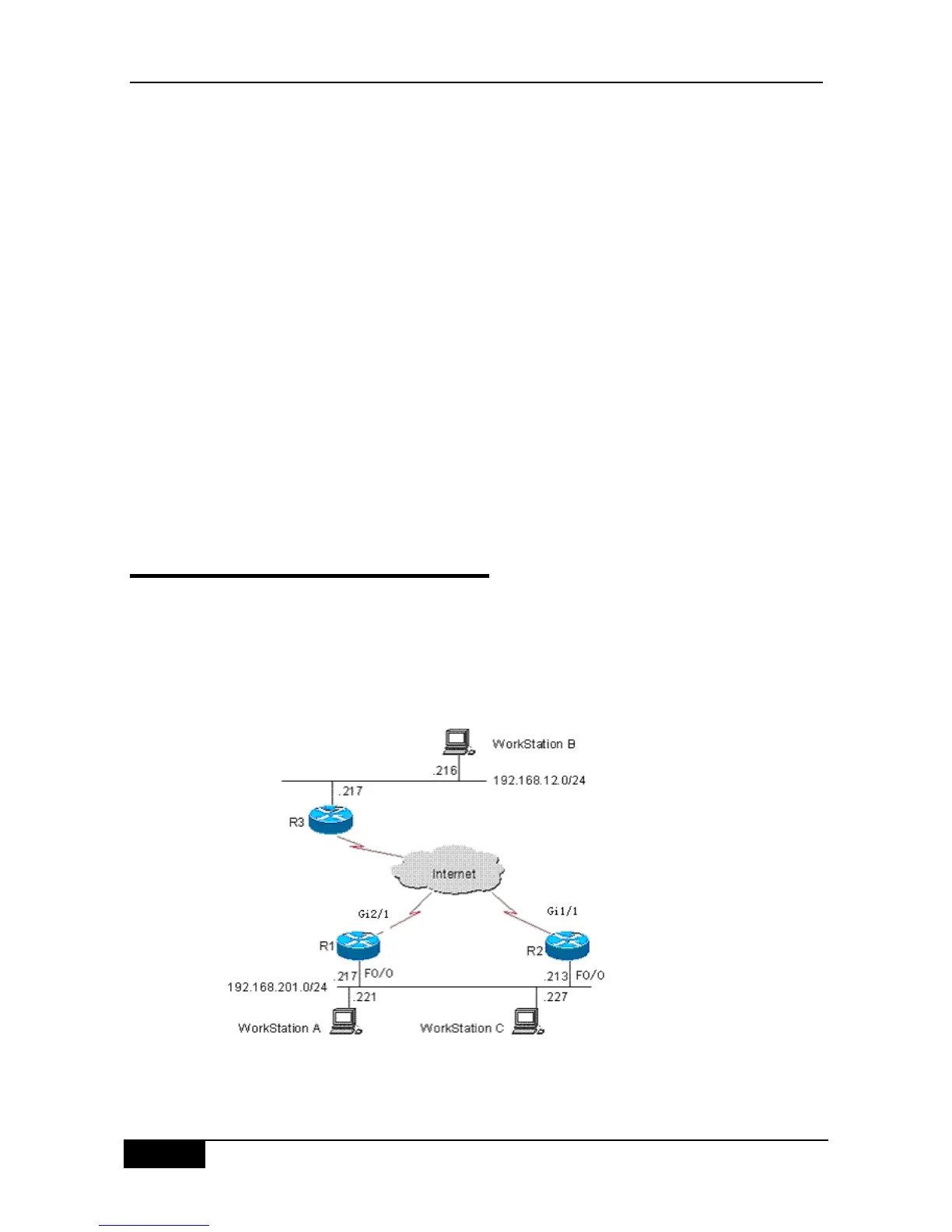

Figure 46-4 Network connection with VRRP
In the configuration example below, the configurations of device R3 remain unchanged,The
configuration on device R3 is shown below:
