Chapter 44 Access Control List Configuration DGS-3610 Series Configuration Guide
44.2.4 IP Access List Example

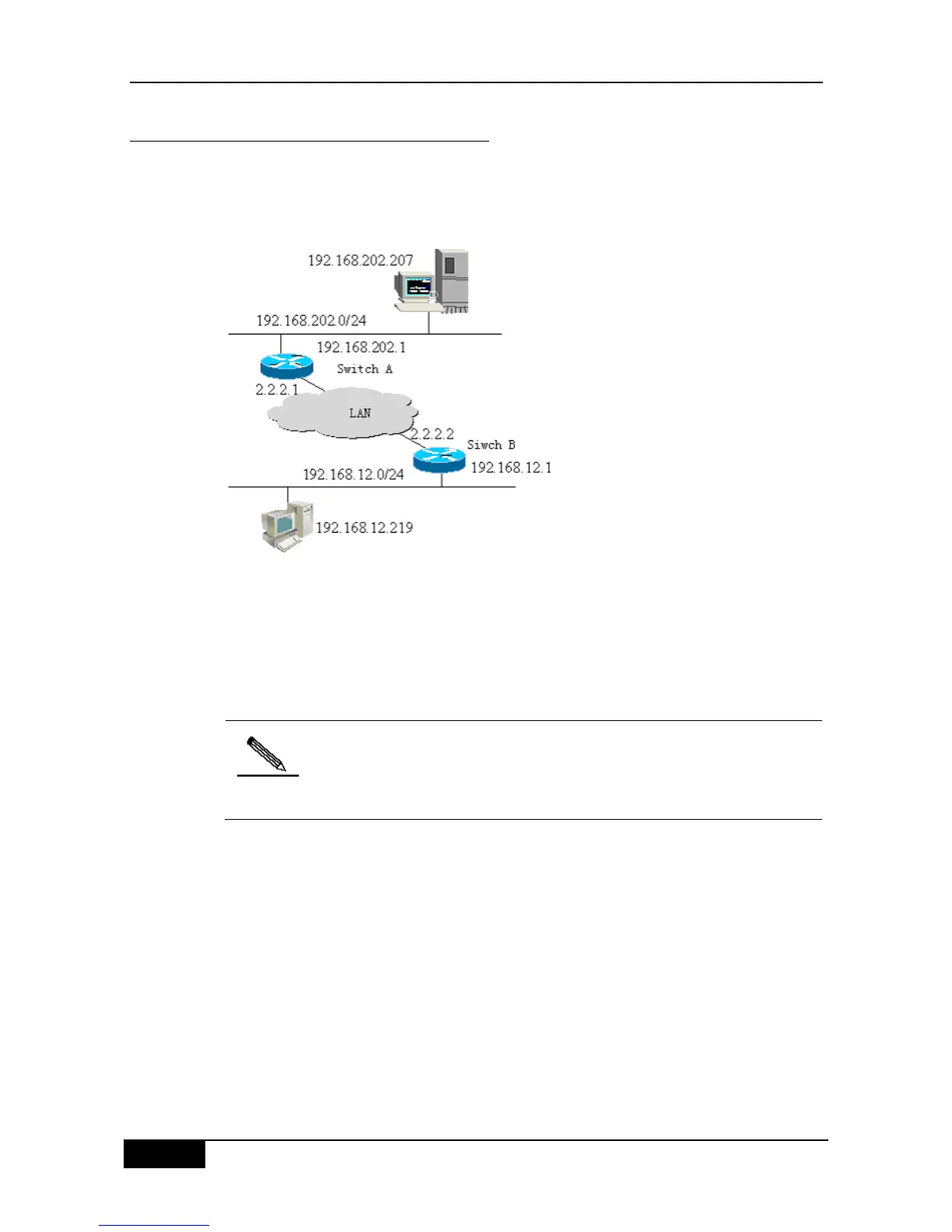

Configuration requirements: There are two devices Switch A and Switch B, as shown in
Figure 45-3:
Figure 44-3 Basic Access List Example
To implement the following security functions by configuring access lists on Switch B:
Hosts in the 192.168.12.0/24 network segment can only access the remote TELNET
services of UNIX hosts in the normal working period and deny the PING service.
On the Switch B console, access to any of the services of hosts in the 192.168.202.0/24
network segment is denied.
The above case simplifies the application in the bank system. It only
allows the hosts on the Local Area Network of branches or savings
agencies to access the central host and forbids accessing the central host
on the device.
Device configuration
Switch B configuration:
DGS-3610(config)# interface GigabitEthernet 0/1
DGS-3610(config-if)# ip address 192.168.12.1 255.255.255.0
DGS-3610(config-if)# exit
DGS-3610(config)# interface GigabitEthernet 0/2
DGS-3610(config-if)# ip address 2.2.2.2 255.255.255.0
DGS-3610(config-if)# ip access-group 101 in
DGS-3610(config-if)# ip access-group 101 out
According to requirements, configure an extended access list numbered 101
