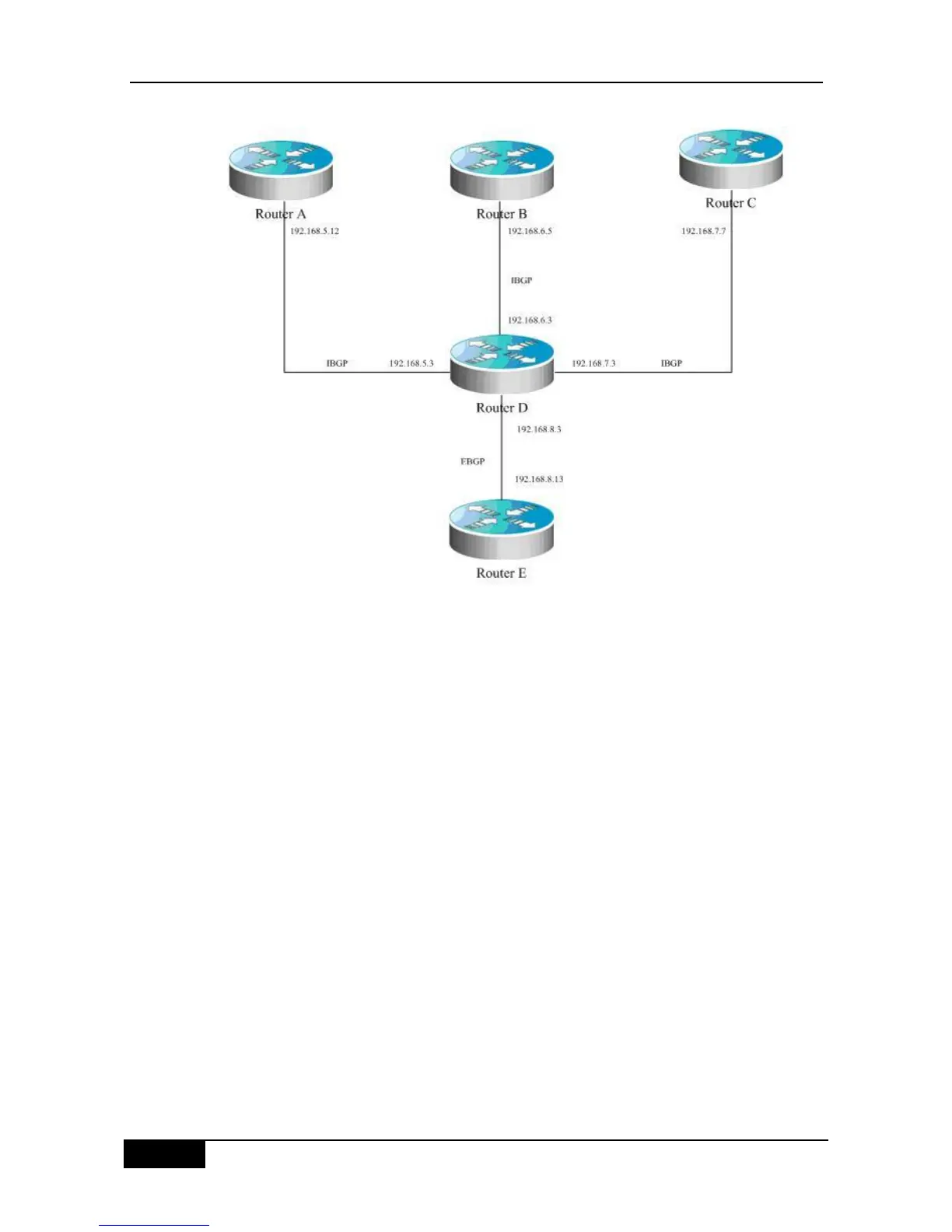

In this example, the router D is a route reflector. The configurations of all the devices in this
example are as below:
The configuration of Router A:
!
router bgp 100
bgp log-neighbor-changes
neighbor 192.168.5.3 remote-as 100
neighbor 192.168.5.3 description route-reflector server
The configuration of Router B:
!
router bgp 100
bgp log-neighbor-changes
neighbor 192.168.6.3 remote-as 100
neighbor 192.168.6.3 description route-reflector server
The configuration of Router C:
!
router bgp 100
bgp log-neighbor-changes
neighbor 192.168.7.3 remote-as 100
neighbor 192.168.7.3 description not the route-reflector server
The configuration of Router D:
