AT-9000 Switch Command Line User’s Guide

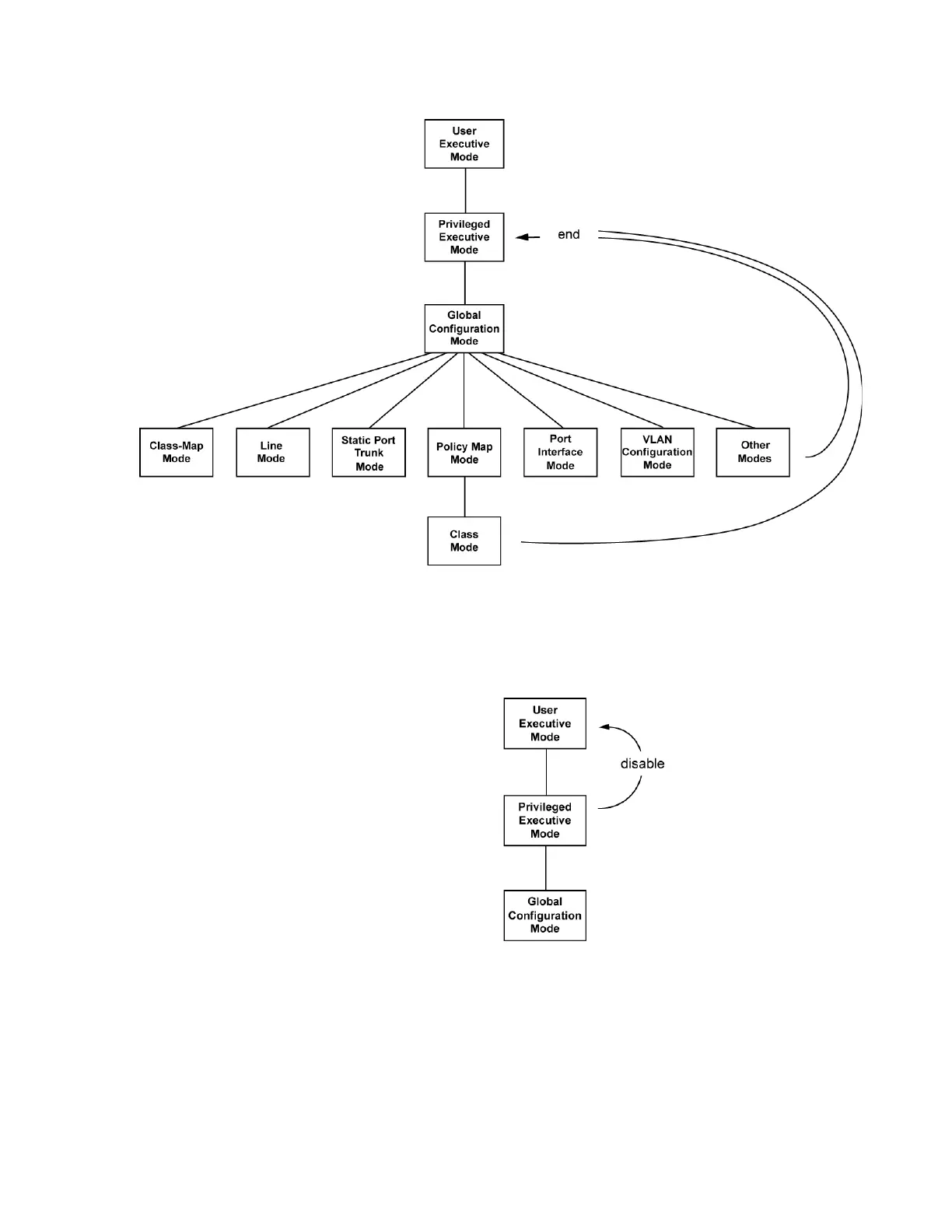

Figure 16. Returning to the Privileged Exec Mode with the END Command

DISABLE

Command

To return to the User Exec mode from the Privileged Exec mode, use the

DISABLE command.

Figure 17. Returning to the User Exec Mode with the DISABLE Command

Default Chapter5
- Table of Contents5
- Document Conventions38
- Where to Find Web-Based Guides39
- Contacting Allied Telesis40
