[2] ELEMENT
O-RING CAN COME INSTALLED
IN FILTER ELEMENT
SCAVENGE
FILTER
PUSH-TO-VENT
VALVE
CHARGE
FILTER
[4] FILTER
COVER
[3] O-RING
[1] O-RING
FILTER
(EXAMPLE)
F94931 S0006566151_V3

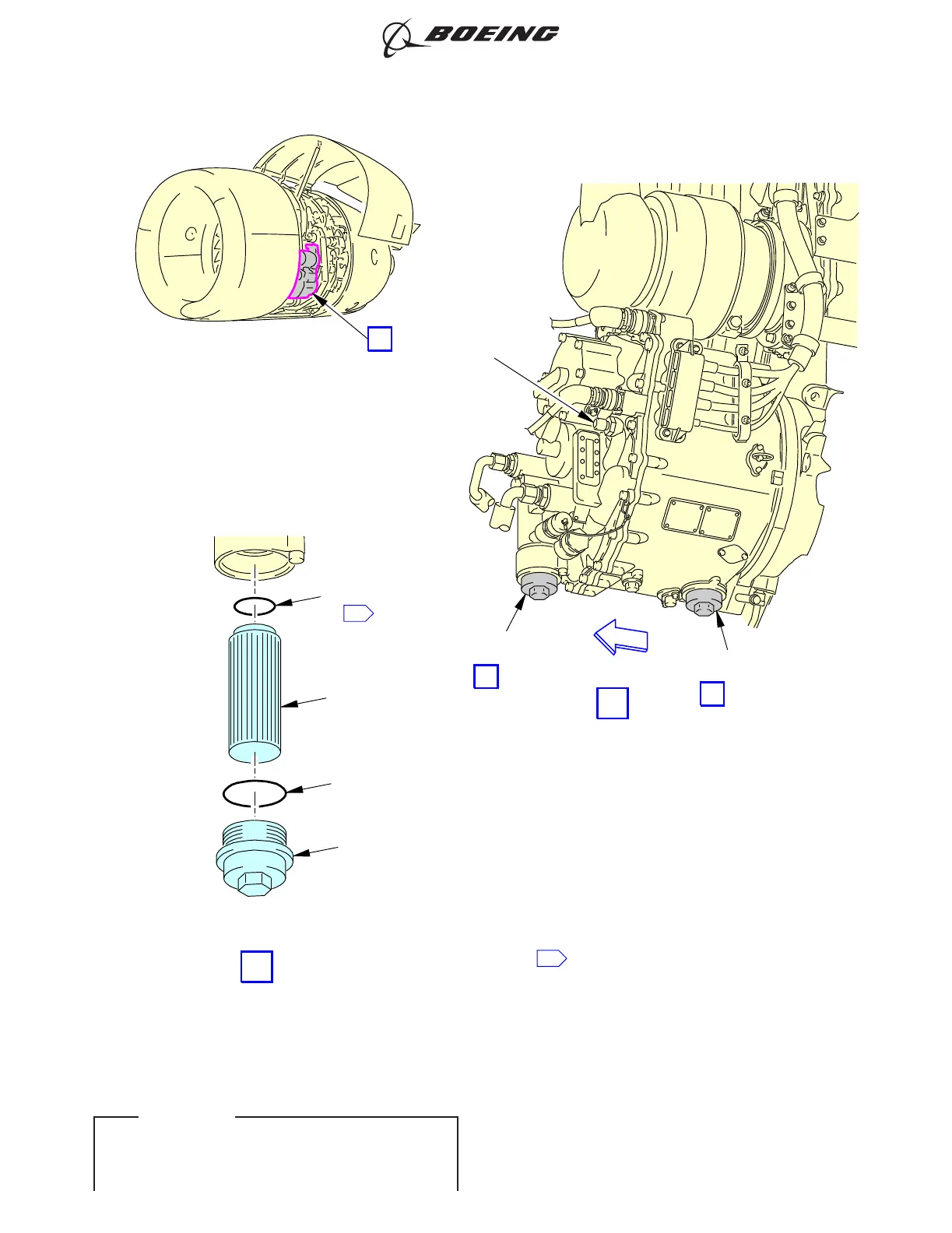

IDG Scavenge Filter and Charge Filter Installation
Figure 201/24-11-41-990-801
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-11-41
Page 203
D633A101-ILF Oct 15/2015
