I
F
J
G
C
H
D
B
F
W
D
C
F
W
D
AIR SEPARATION MODULE
(EXAMPLE)
NOTE:
THE AIR SEPARATION
MODULE IS SHOWN WITHOUT
THE INSULATION.
[9] MUSCLE
AIR DUCT
[14] HIGH
FLOW VALVE
[6] ASM HOSE CLAMP
[7] SETSCREW
(3 LOCATIONS)
[5] BRACKET
(3 LOCATIONS)
[1] AIR SEPARATION
MODULE
[8] STRAP
[28] NUT
AIR SUPPLY
DUCT
REAR SPAR
OVER
TEMPERATURE
SHUTOFF
VALVE
[21] OEA EXHAUST
DUCT
[22] BRACKET
(3 LOCATIONS)
[27] NEADS DUCT
[46] TUBE
[40] BOLT
(2 LOCATIONS)
[41] BONDING
JUMPER
[42] CLAMP
(2 LOCATIONS)
[27] NEADS
DUCT
[43] NUT
(2 LOCATIONS)
[44] WASHER (QTY 2)
(2 LOCATIONS)
REDUCER TEE
SWIVEL TEE
[45] BONDING
JUMPER
2566679 S0000606090_V2

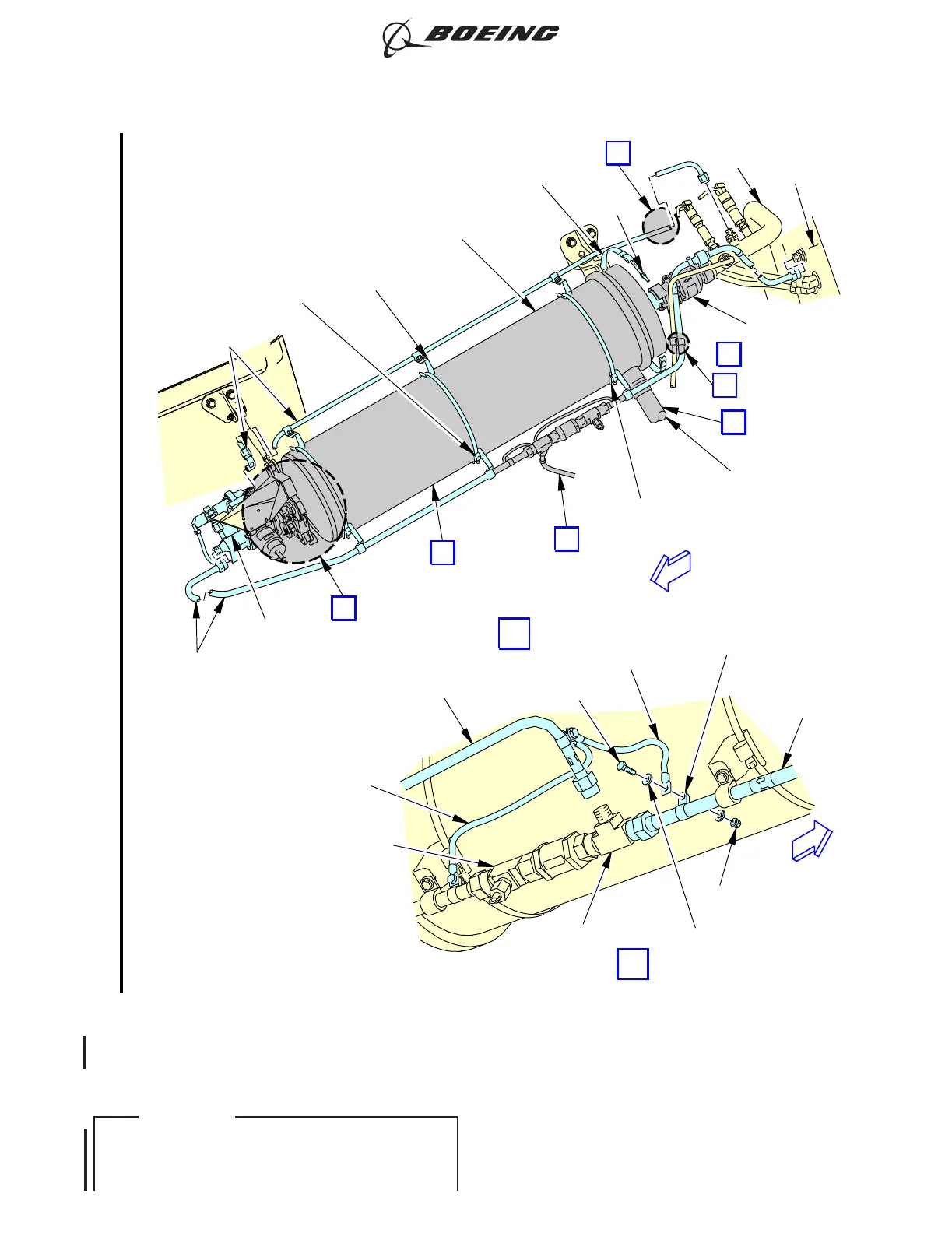

Air Separation Module Alternate Installation
Figure 402/47-11-01-990-802 (Sheet 5 of 11)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-11-01
Page 429
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 101, 151, 156-199, 301, 304, 308, 310, 314, 315, 317-319, 323, 331-399, 401, 405,
406, 409, 410, 412, 416, 424, 425, 427-429, 451, 501-504, 507, 508, 512-514, 516, 518,
524, 531-533, 535-537, 541, 542, 552-556, 560-562, 567, 571-575, 671, 672, 686, 703,
707-710, 803-813, 821, 822, 831, 832, 836, 837, 841, 842, 851, 852, 854-858, 861-863,
871-874, 947, 948, 968-970, 972, 973 POST SB 737-47-1015 AND POST SB
737-47-1003; ILF 402, 452, 509, 510, 523, 525-528, 568, 569, 576, 577, 581, 583, 585,
588-590, 592-599, 601-603, 606, 607, 610-615, 620, 625-627, 691-699, 833-835, 838, 971,
980-999 POST SB 737-47-1015
