Boeing 737-600 - Page 1036

E
D
E
A-A
UP
F
W
D
FWD
A A
(3 LOCATIONS)
[49] ASM MOUNT
[50] TIE ROD
(3 LOCATIONS)
[50] TIE ROD
[51] BUSHING (QTY 2)
[53] BOLT
[52] WASHER
[54] WASHER
[55] NUT
[58] SCREW
[59] WASHER
(QTY 2)
[60] NUT
[61] JUMPER TAB
[56] BONDING
JUMPER
[14] HIGH FLOW
VALVE
HIGH FLOW
DIFFERENTIAL
PRESSURE
SENSOR
[9] MUSCLE AIR
DUCT
[27] NEADS DUCT
[1] AIR
SEPARATION
MODULE
[15] COUPLING
[13] SLEEVE
ASM MOUNT
[16] O-RING
(QTY 2)
[48] ELECTRICAL
CONNECTORS
[47] OXYGEN SENSOR TUBE
[29] NUT
[26] STRAP
2160759 S0000474424_V2

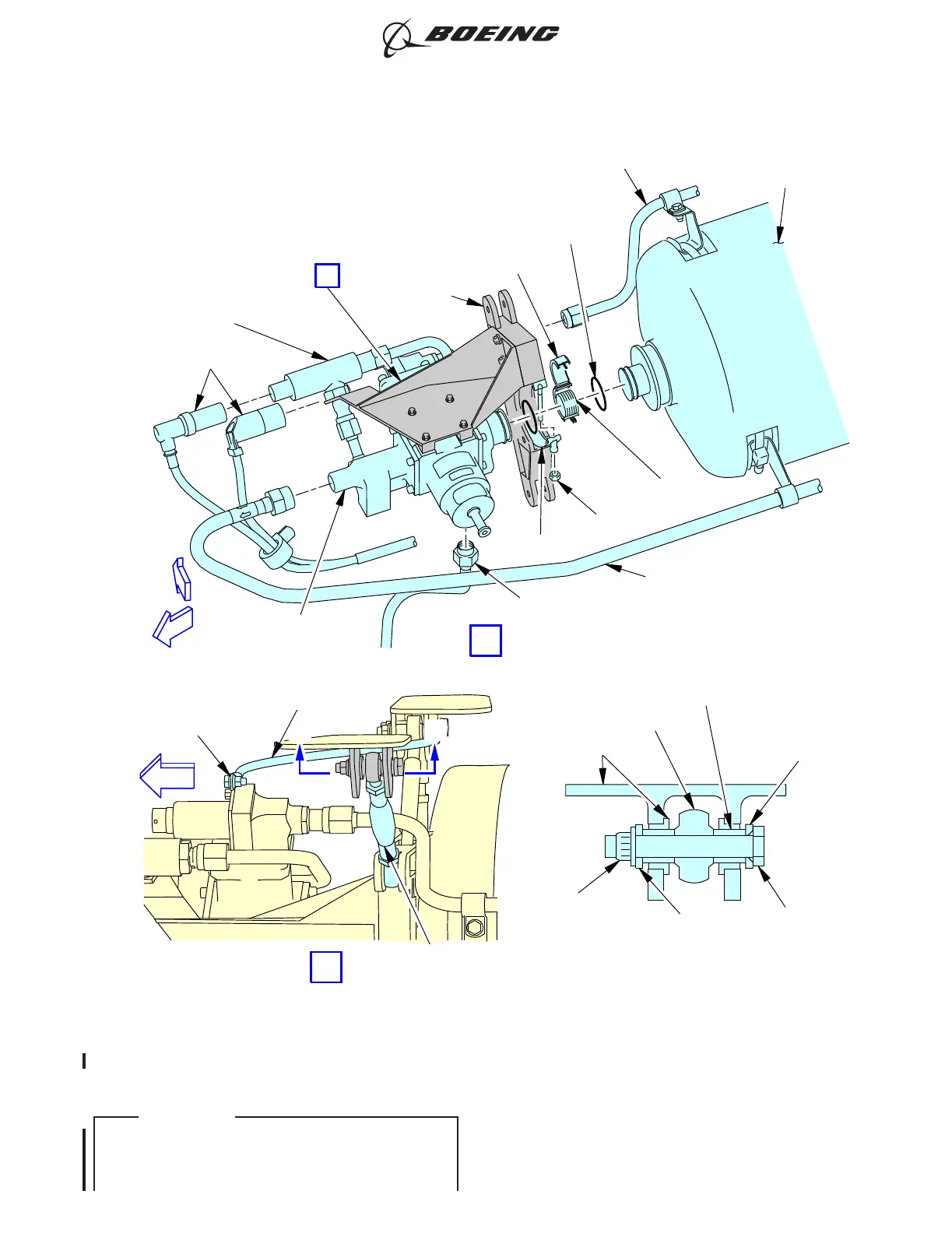

Air Separation Module Alternate Installation
Figure 402/47-11-01-990-802 (Sheet 6 of 11)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-11-01
Page 430
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 402, 452, 509, 510, 523, 525-528, 568, 569, 576, 577, 581, 583, 585, 588-590,
592-599, 601-603, 606, 607, 610-615, 620, 625-627, 691-699, 833-835, 838, 971, 980-999;
ILF 101, 151, 156-199, 301, 304, 308, 310, 314, 315, 317-319, 323, 331-399, 401, 405,
406, 409, 410, 412, 416, 424, 425, 427-429, 451, 501-504, 507, 508, 512-514, 516, 518,
524, 531-533, 535-537, 541, 542, 552-556, 560-562, 567, 571-575, 671, 672, 686, 703,
707-710, 803-813, 821, 822, 831, 832, 836, 837, 841, 842, 851, 852, 854-858, 861-863,
871-874, 947, 948, 968-970, 972, 973 POST SB 737-47-1003
