Boeing 737-600 - Page 106

321
4
DPI RESETS
REMOVE
IDG
REFER TO APPROPRIATE DOCUMENTATION
FOR DETAILS OF THE ALTERNATE DPI
PROCEDURE
B
C
D
A
B
C
A
D
F
W
D
FILTER
ELEMENT
SCAVENGE
FILTER
PUSH-TO-VENT
VALVE
FILTER
COVER
O-RING
O-RING
FILTER
(EXAMPLE)
NORMAL (RESET)
PRESSURE DIFFERENTIAL INDICATOR
DPI RESETS DECAL
EXTENDED
RED BUTTON
1494355 S0000271038_V3

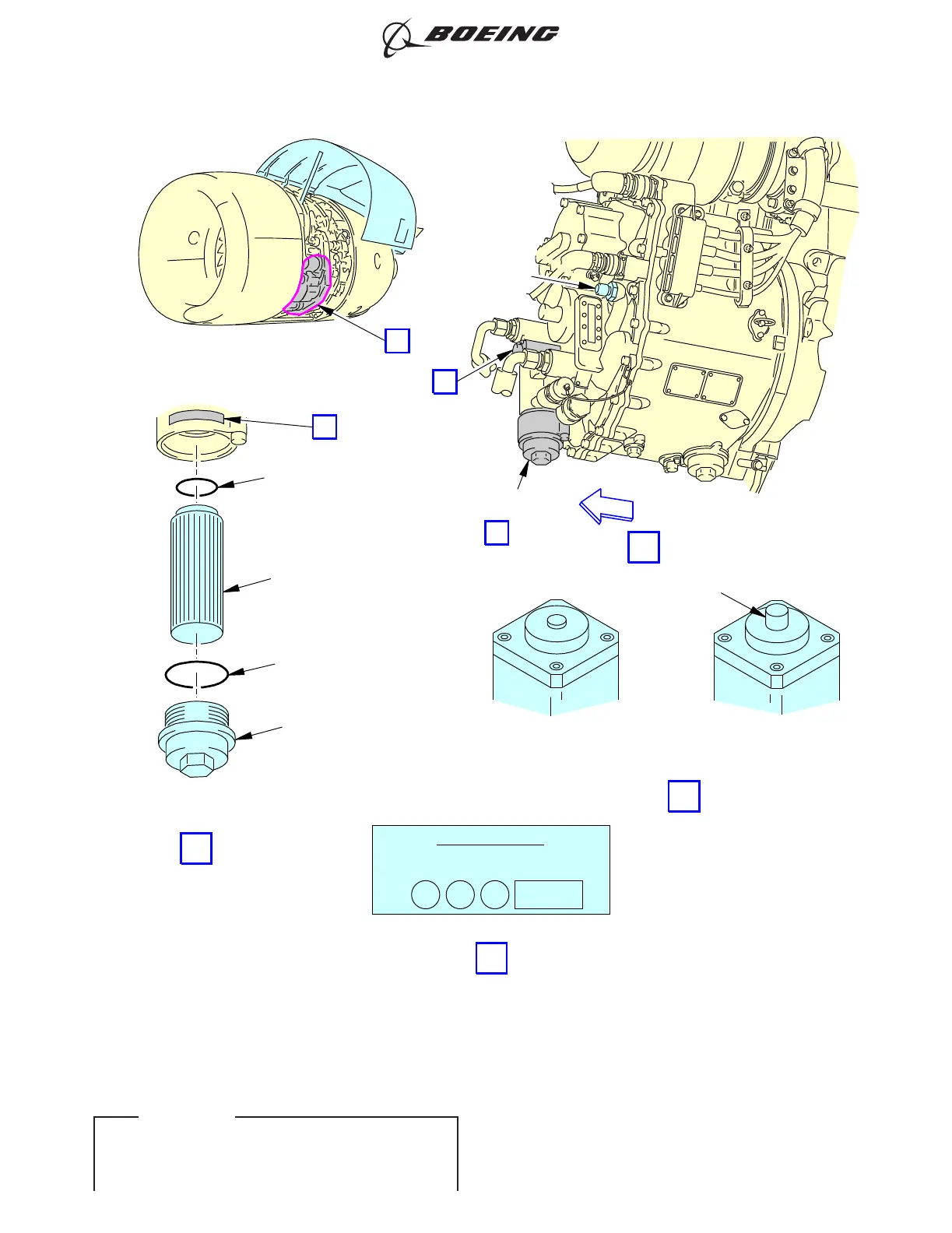

DPI Reset Procedure
Figure 202/24-11-41-990-802
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-11-41
Page 207
D633A101-ILF Oct 15/2015
