C
F
W
D
F
W
D
B
C
REAR SPAR
UPPER LIGHTNING SHIELD
UPPER LIGHTNING
SHIELD
WIRE BUNDLE
[3] CAP SCREW
[22] CLAMP
[23] SPACER
[20] COLLAR
[21] BOLT
(2 LOCATIONS)
FLAME
ARRESTOR
(REF)
VERTICAL
STIFFENER
[1] UPPER
LIGHTNING
SHIELD
2123829 S0000457678_V3

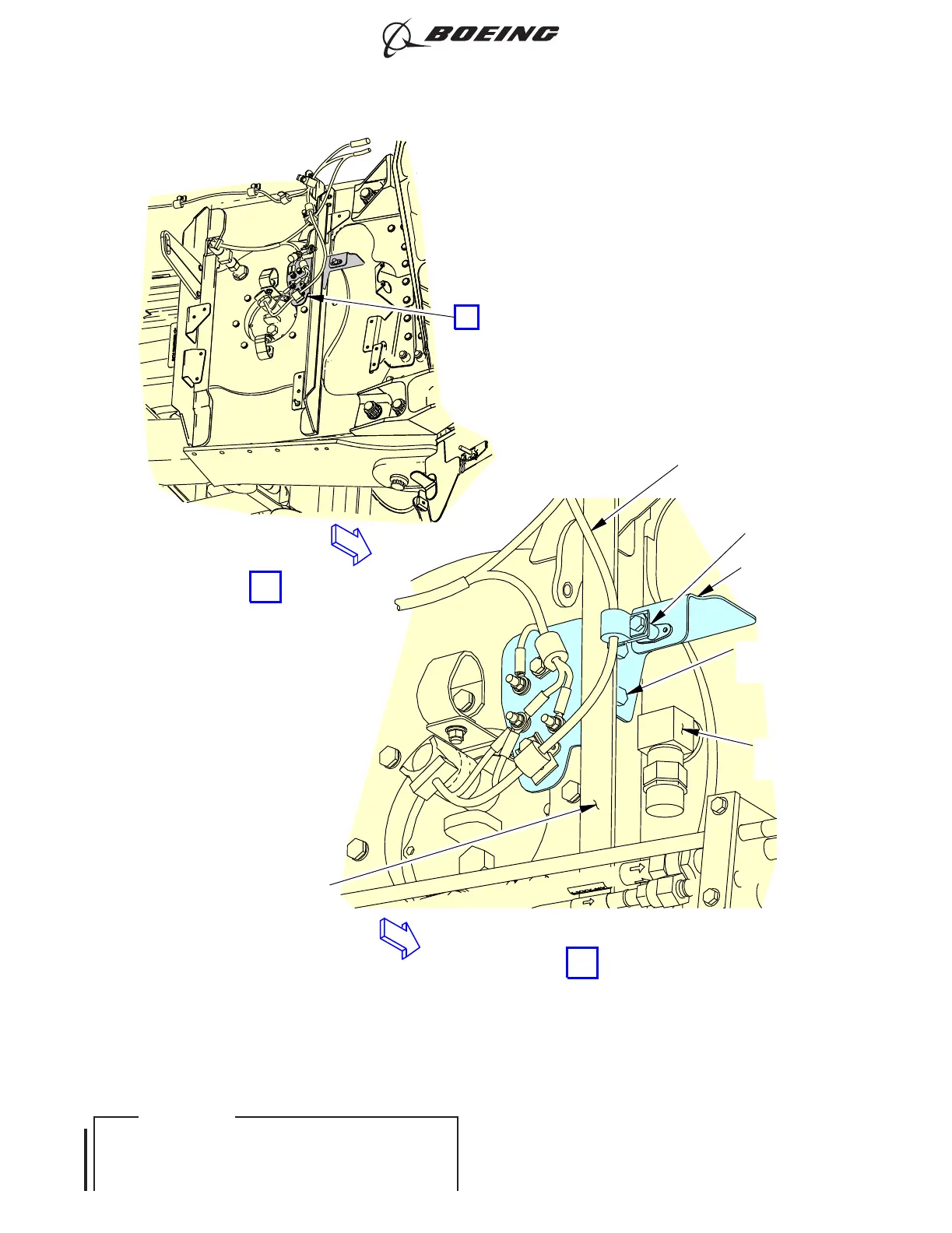

Upper Lightning Shield
Figure 401/47-21-08-990-801 (Sheet 3 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
47-21-08
Page 405
D633A101-ILF Oct 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF 101, 151, 156-199, 301, 304, 308, 310, 314, 315, 317-319, 323, 331-399, 401,
405, 406, 409, 410, 412, 416, 424, 425, 427-429, 501, 502, 507, 508, 512, 513, 516,
518, 531-533, 535-537, 542, 552-556, 571-573, 686, 703, 707-710, 803-813, 821,
822, 831, 836, 837, 841, 842, 851, 852, 854, 855, 861-863, 871-874 POST SB
737-47-1002 AND PRE SB 737-47-1003; ILF 451, 503, 504, 514, 524, 541, 574,
575, 832, 856 PRE SB 737-47-1003; ILF 491-493, 515, 519, 520, 530, 557, 559
POST SB 737-47-1002
