Boeing 737-600 - Page 150

C
C
FWD
B
FWD
C
GROUND
STRAP
ELECTRICAL AND ELECTRONICS COMPARTMENT
[1] PANEL
P91 PANEL
(FRONT VIEW)
(P92 PANEL IS OPPOSITE)
(EXAMPLE)
POWER
DISTRIBUTION
PANEL 2, P92
ELECTRONIC EQUIPMENT
ACCESS DOOR, 117A
POWER
DISTRIBUTION
PANEL 1, P91
[2] NUT
[3] WASHER
[4] WASHER
(2 LOCATIONS)
[5] BOLT
(2 LOCATIONS)
ELECTRICAL
CONNECTOR
G34105 S0006566175_V3

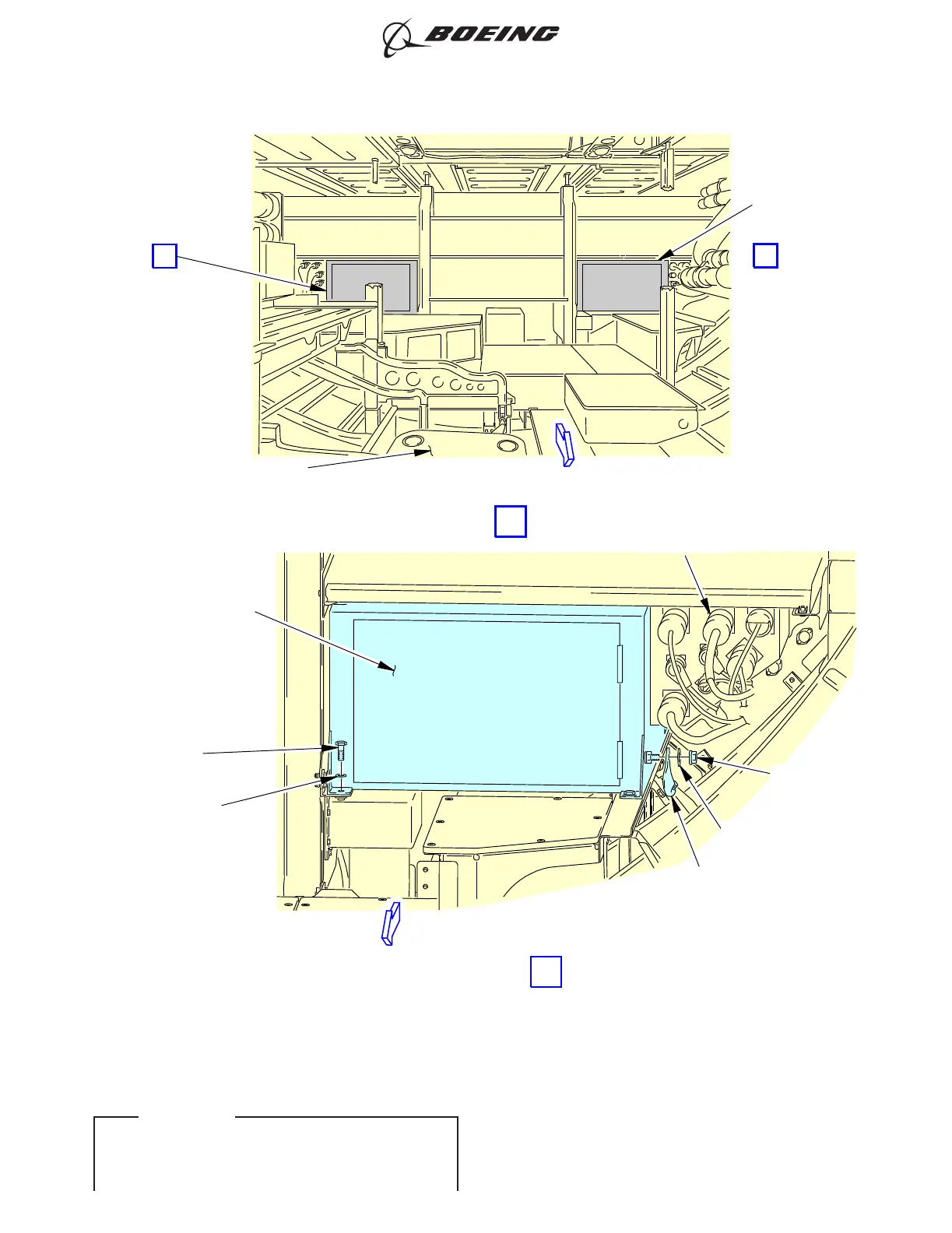

Power Distribution Panel Installation
Figure 401/24-21-21-990-801 (Sheet 2 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-21-21
Page 408
D633A101-ILF Jun 15/2019
