Boeing 737-600 - Page 151

FWD
E
F
D
[7] WASHER
(9 LOCATIONS)
ACCESS
HOLES
P91 PANEL
(REAR VIEW)
(P92 PANEL IS OPPOSITE)
(EXAMPLE)
FEEDER
TERMINATION
(9 LOCATIONS)
[6] NUT
(9 LOCATIONS)
GROUND
STRAP
[1] PANEL
[3] WASHER
[2] NUT
[5] BOLT
(2 LOCATIONS)
[4] WASHER
(2 LOCATIONS)
ELECTRICAL
CONNECTOR
G34305 S0006566176_V3

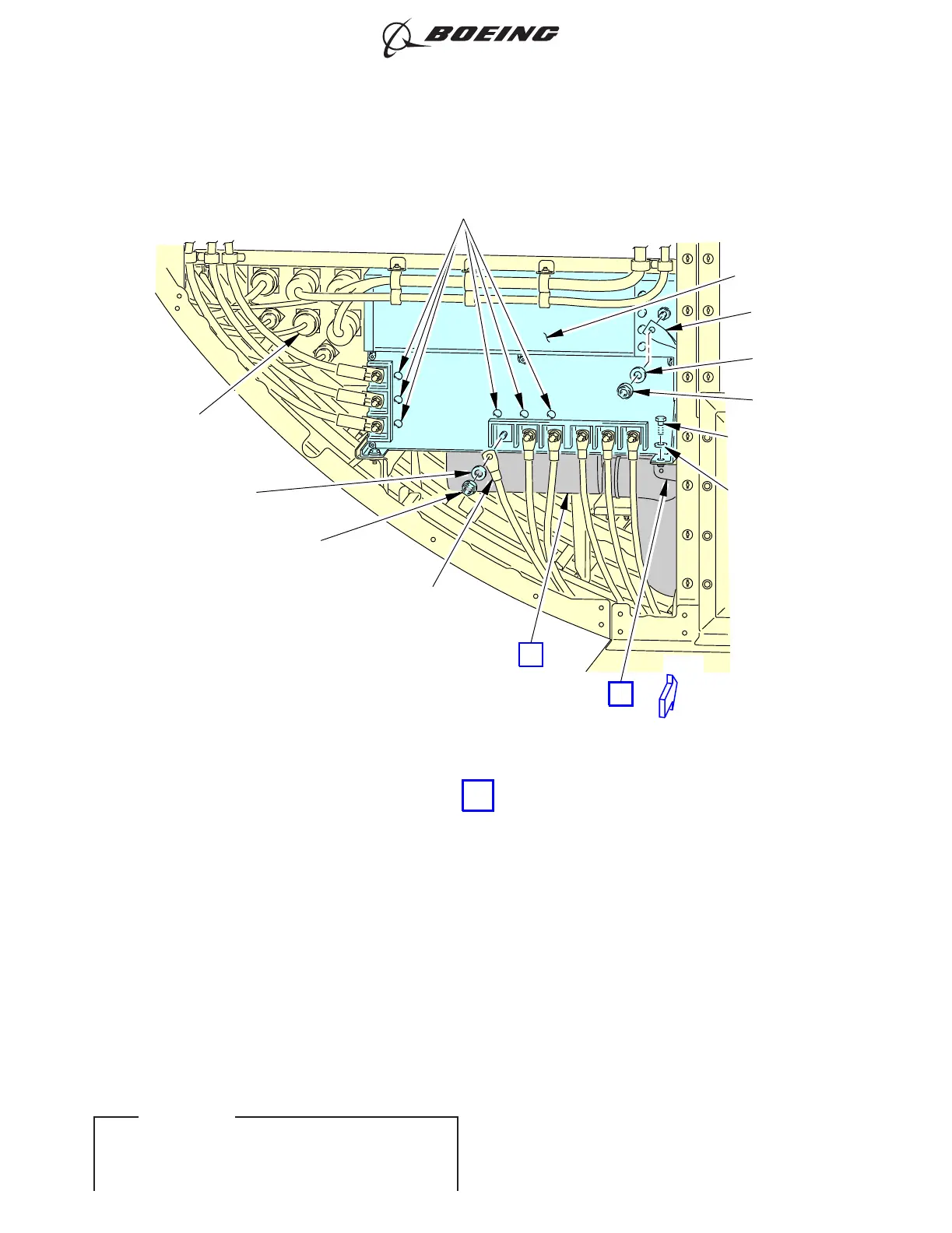

Power Distribution Panel Installation
Figure 401/24-21-21-990-801 (Sheet 3 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
24-21-21
Page 409
D633A101-ILF Jun 15/2019
