Boeing 737-600 - Page 1610

E A
D
B
C
FWD
A
STATION 727.0
BULKHEAD
(LINER REMOVED)
AFT CARGO
COMPARTMENT
(AFT SIDE)
AFT CARGO
COMPARTMENT
(FORWARD SIDE)
AFT CARGO
DOOR, 822
AFT CARGO COMPARTMENT
(FORWARD SIDE)
MPD ITEM
53-230-00
S-23L
LONGITUDINAL
LAP SPLICE
S-23R
LONGITUDINAL
LAP SPLICE
SKIN
STRINGERS
STA 847
2094308 S0000439209_V2

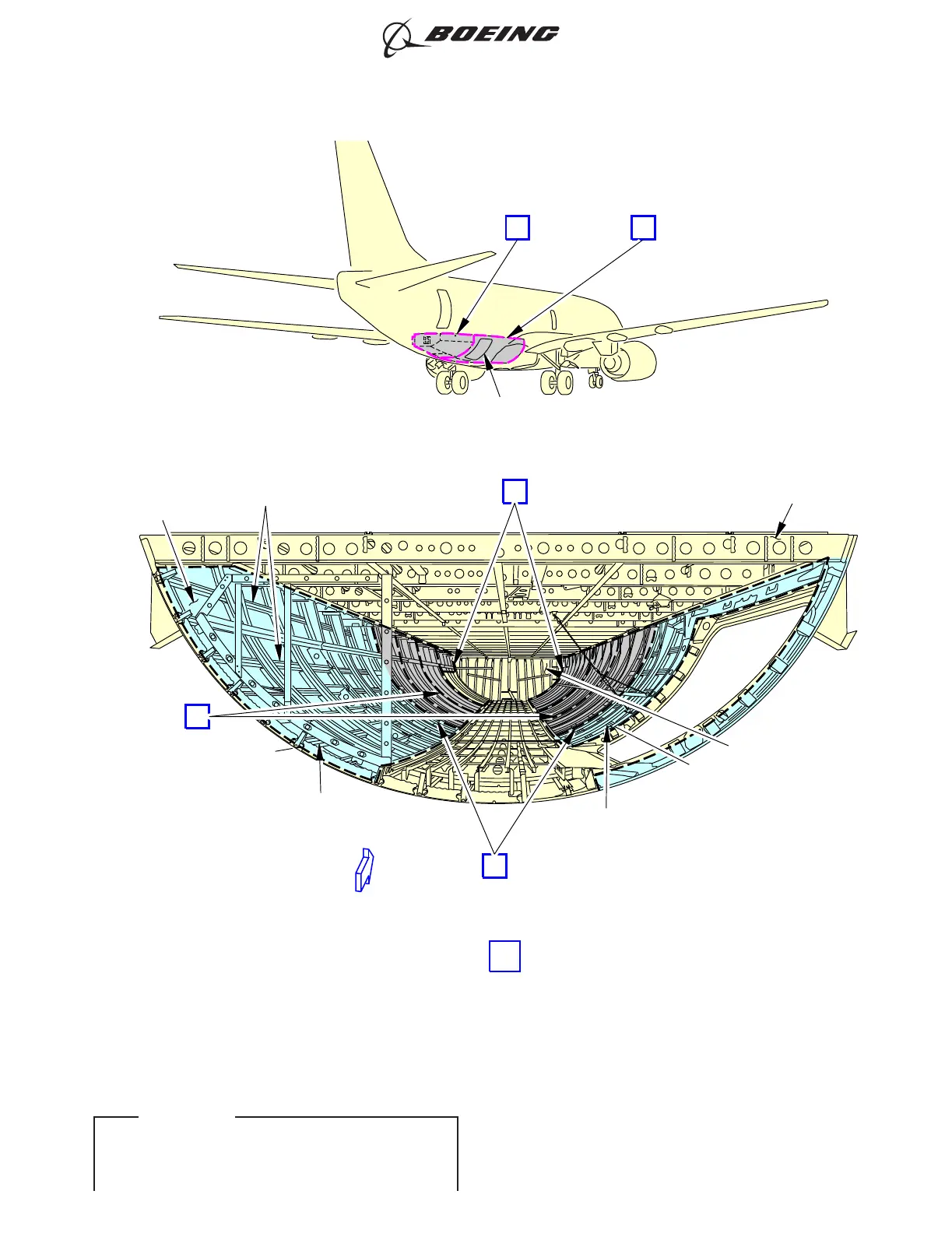

INTERNAL-GENERAL VISUAL: AFT CARGO COMPARTMENT
Figure 228/53-05-03-990-859 (Sheet 1 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 288
D633A101-ILF Jun 15/2018
