AREA UNDER LOWER WING-TO-BODY FAIRING
(FAIRING REMOVED)
(LEFT SIDE)
ACCESS PANEL,
194AL
INSPECTION AREA
(ZONE 194)
ACCESS PANEL,
194DL
ACCESS PANEL,
194BL
ACCESS PANEL,
194CL
ACCESS PANEL,
194HL
ACCESS PANEL,
194GL
ACCESS PANEL,
194FL
ACCESS PANEL,
194E
SKIN PANELS
STR 18A
CIRCUMFERENTIAL
SKIN SPLICE
KEEL BEAM
EXTENSION
LONGITUDINAL
LAP SPLICE
STR 23L
STR 18 STRAP AT
SIDE OF BODY
MPD ITEM
53-270-00
2089485 S0000441011_V2

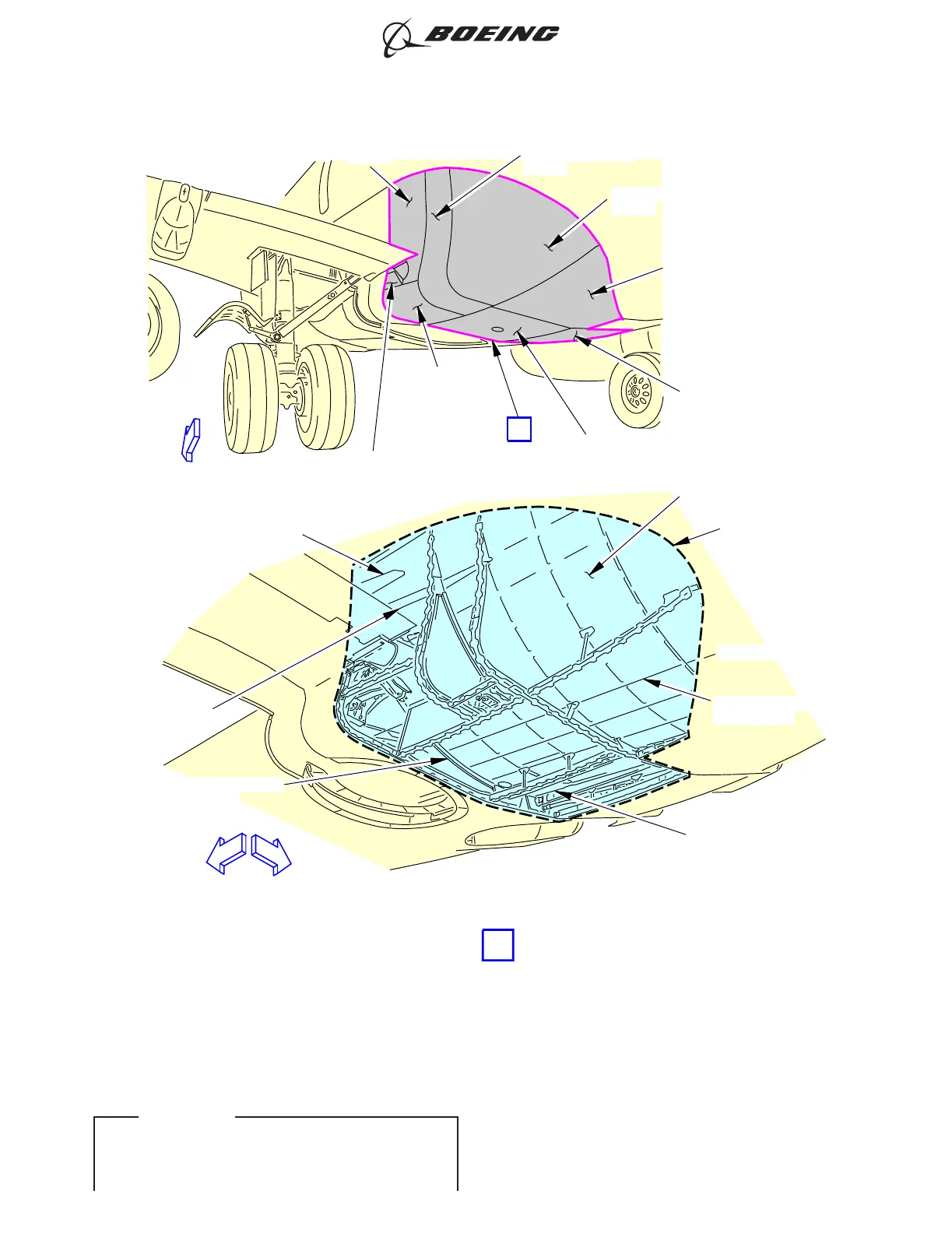

INTERNAL-GENERAL VISUAL: AREA UNDER LOWER WING-TO-BODY FAIRING (aft of wheel well)
