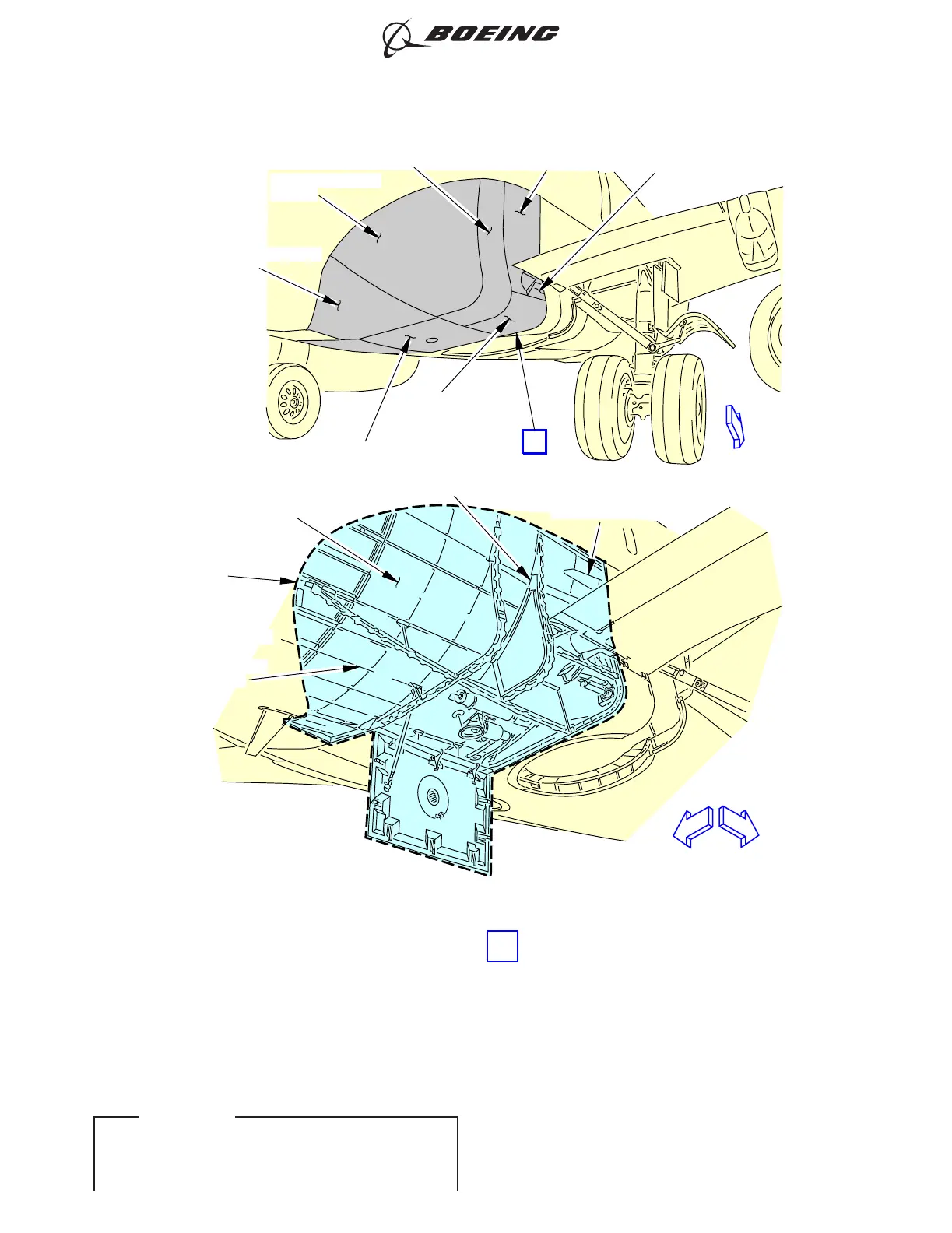

AREA UNDER LOWER WING-TO-BODY FAIRING
(FAIRING REMOVED)
(RIGHT SIDE)
INSPECTION AREA
(ZONE 194)
ACCESS PANEL,
194BR
ACCESS PANEL,
194CR
ACCESS DOOR,
194DR
ACCESS PANEL,
194HR
ACCESS PANEL,
194GR
ACCESS PANEL,
194FR
ACCESS PANEL,
194AR
SKIN PANELS
LONGITUDINAL
LAP SPLICE
STR 23R
STR 18A
STR 18 STRAP AT
SIDE OF BODY
MPD ITEM
57-270-00
2089514 S0000441012_V2
INTERNAL-GENERAL VISUAL: AREA UNDER LOWER WING-TO-BODY FAIRING (aft of wheel well)
Figure 233/53-05-03-990-855 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.7
D633A101-ILF Jun 15/2018
