Boeing 737-600 - Page 1683

F
W
D
B

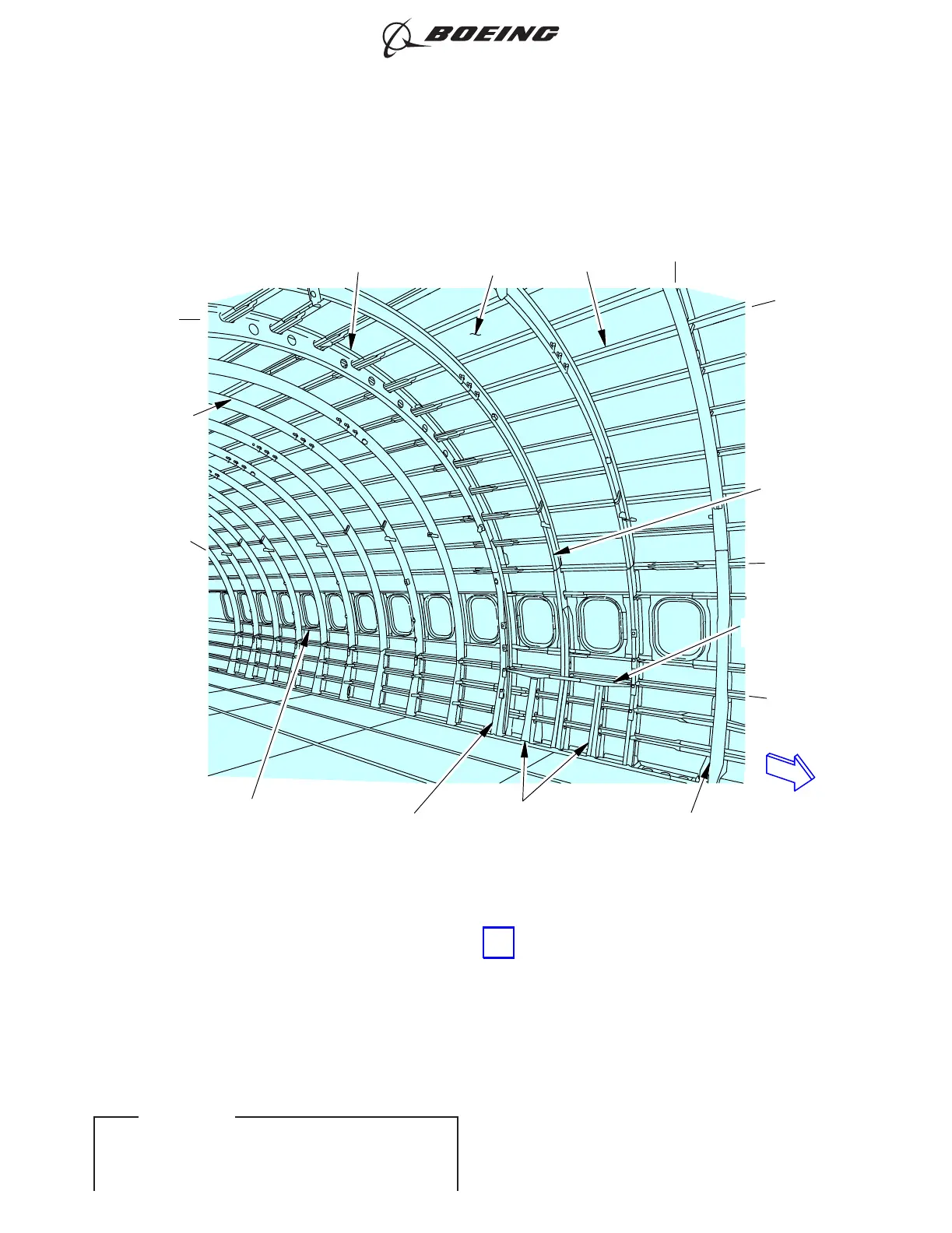

AFT PASSENGER COMPARTMENT
(STA 663.75 TO 807)
(LEFT SIDE IS SHOWN, RIGHT SIDE IS ALMOST THE SAME)
MPD ITEM
53-410-00
MAIN LANDING
GEAR SUPPORT
FRAMES
SIDE STRUT
SUPPORT FRAME
WHEEL WELL
FRAME
STR 10L
STR 14L
STR 4L
STA 727
BULKHEAD
STA
663.75
STA
727
STA
807
SKIN
STRINGER
FRAME
CIRCUMFERENTIAL
SKIN SPLICE
STA 663.75 BULKHEAD
AND SPLICES
WINDOW BELT
STRUCTURE
2101205 S0000442500_V2
INTERNAL-GENERAL VISUAL: AFT PASSENGER COMPARTMENT, STA 663.75 TO STA 1016
Figure 254/53-05-03-990-863 (Sheet 2 of 4)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.63
D633A101-ILF Jun 15/2018
