MPD ITEM 53-335-00
CAB FUSELAGE
(LEFT SIDE)
S-5L
S-1
BL
0
STA
203.8
STA
259.5
STA
178.0
STA
360.0
FORWARD SIDE OF FRAME AT STA 259.5 AND
STRUCTURE 3 INCHES FORWARD OF STA 259.5 BL
O + 4 INCHES BOTH LEFT AND RIGHT
SKIN, FRAMES AND
STRINGER ABOVE
P5 PANEL
STRUCTURE FORWARD OF
STA 203.8 TO STA 178 AND
FROM FLOOR UP TO
WINDOW FRAME
FORWARD AND AFT SIDE OF FRAME
259.5 AND STRUCTURE FROM STA
249 TO STA 263 BETWEEN FLOOR
AND S-5L (EXCLUDING WINDOW
AND WINDOW FRAME STRUCTURE)
INSPECTION AREA
INSPECTION AREA
INSPECTION AREA
2293154 S0000519282_V2

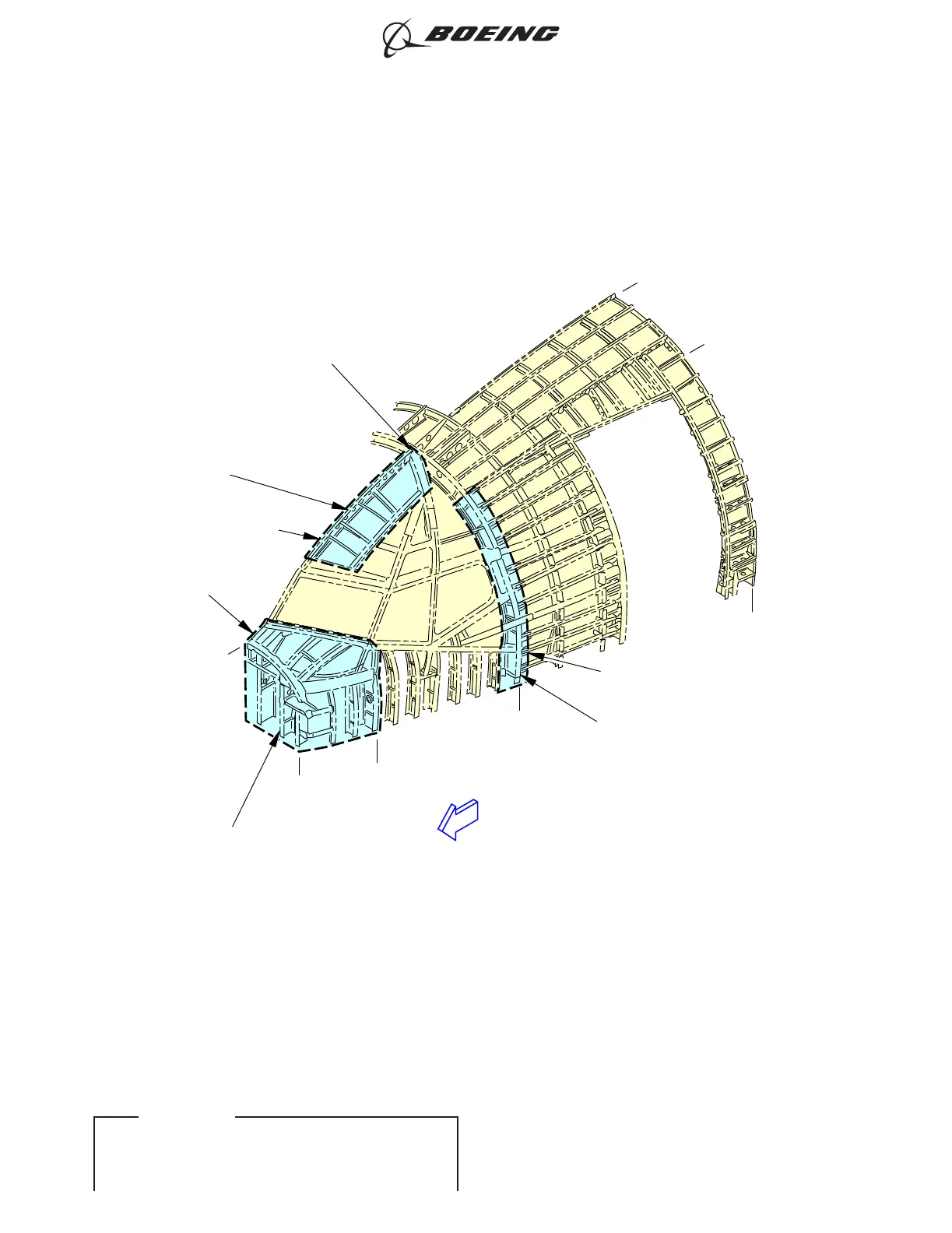

FLIGHT COMPARTMENT FROM STA 178 TO 270
Figure 264/53-05-03-990-901 (Sheet 1 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.98
D633A101-ILF Jun 15/2019
