F
W
D
CAB FUSELAGE
(RIGHT SIDE)
S-3R
S-1R
BL
0
STA
203.8
STA
259.5
STA
178.0
STA
360.0
FORWARD SIDE OF FRAME AT STA
259.5 AND STRUCTURE 3 INCHES
FORWARD OF STA 259.5 BL O + 4
INCHES BOTH LEFT AND RIGHT
SKIN, FRAMES AND
STRINGER ABOVE
P5 PANEL
STRUCTURE FORWARD OF
STA 203.8 TO STA 178 AND
FROM FLOOR UP TO
WINDOW FRAME
FORWARD SIDE OF FRAME 259.5
AND STRUCTURE 3 INCHES
FORWARD OF STA 259.5 BETWEEN
FLOOR AND STRINGER S-3R
INSPECTION AREA
INSPECTION AREA
INSPECTION AREA
MPD ITEM 53-335-00
2293157 S0000519280_V3

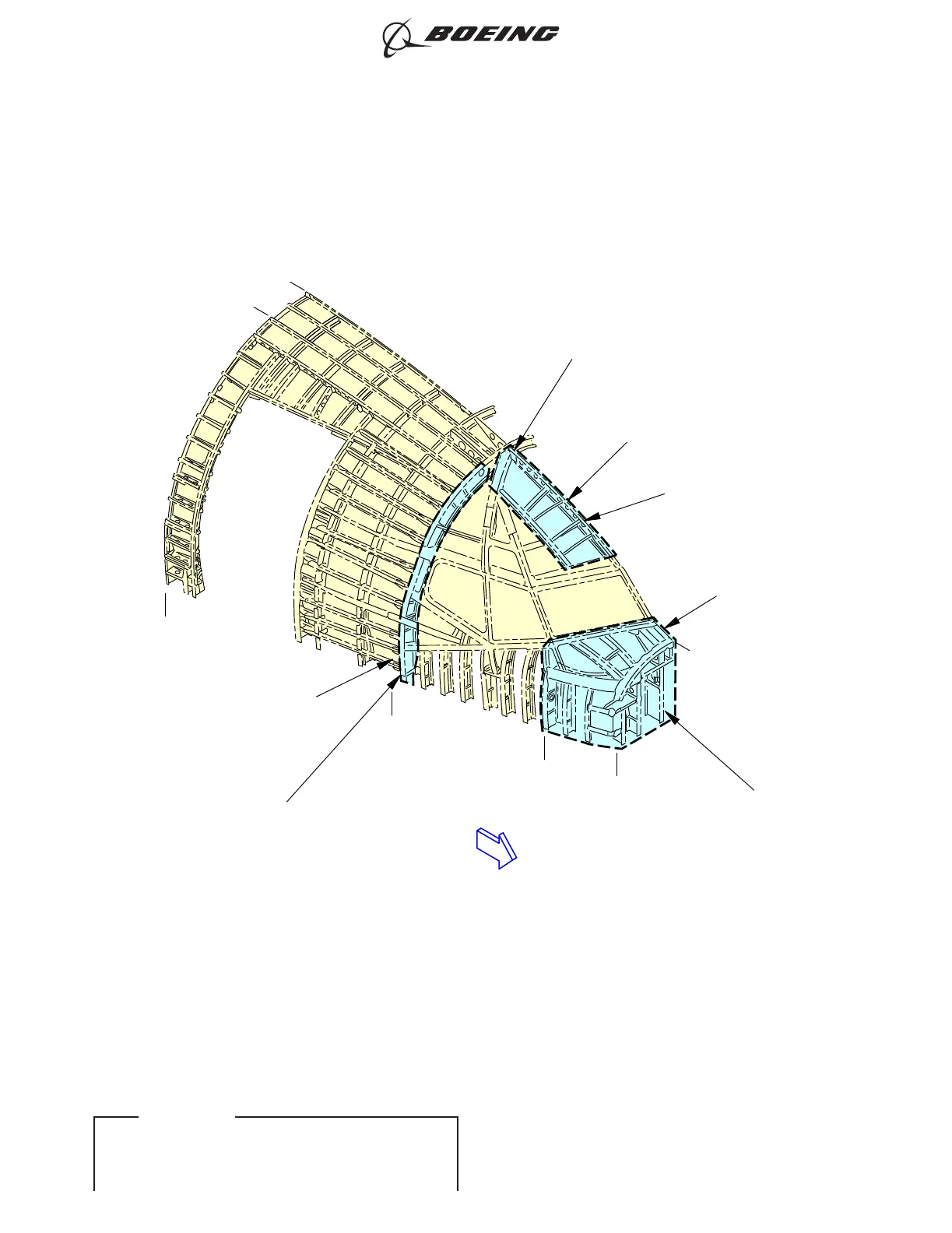

FLIGHT COMPARTMENT FROM STA 178 TO 270
Figure 264/53-05-03-990-901 (Sheet 2 of 2)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-05-03
Page 298.99
D633A101-ILF Jun 15/2019
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ILF ALL
