A
D
B
N
I
FWD
INBD
A-A
B
[2] SCUFF
PLATE
[7] SCUFF PLATE
[8] SCREWS
[2] SCUFF
PLATE
APPLY BMS 595
SEALANT
[11] NUT PLATE
(EXAMPLE)
[4] SCUFF PLATE
[6] FILLER
SCUFF PLATE
[7] SCUFF PLATE
APPLY BMS 595
SEALANT
[10] GEL TAPE
GEL TAPE
(EXAMPLE)
SCUFF PLATES
(VIEW IN THE UP DIRECTION)
STA
492.4
[4] SCUFF
PLATE
[9] GASKET
[12] GASKET
2120999 S0000454014_V3

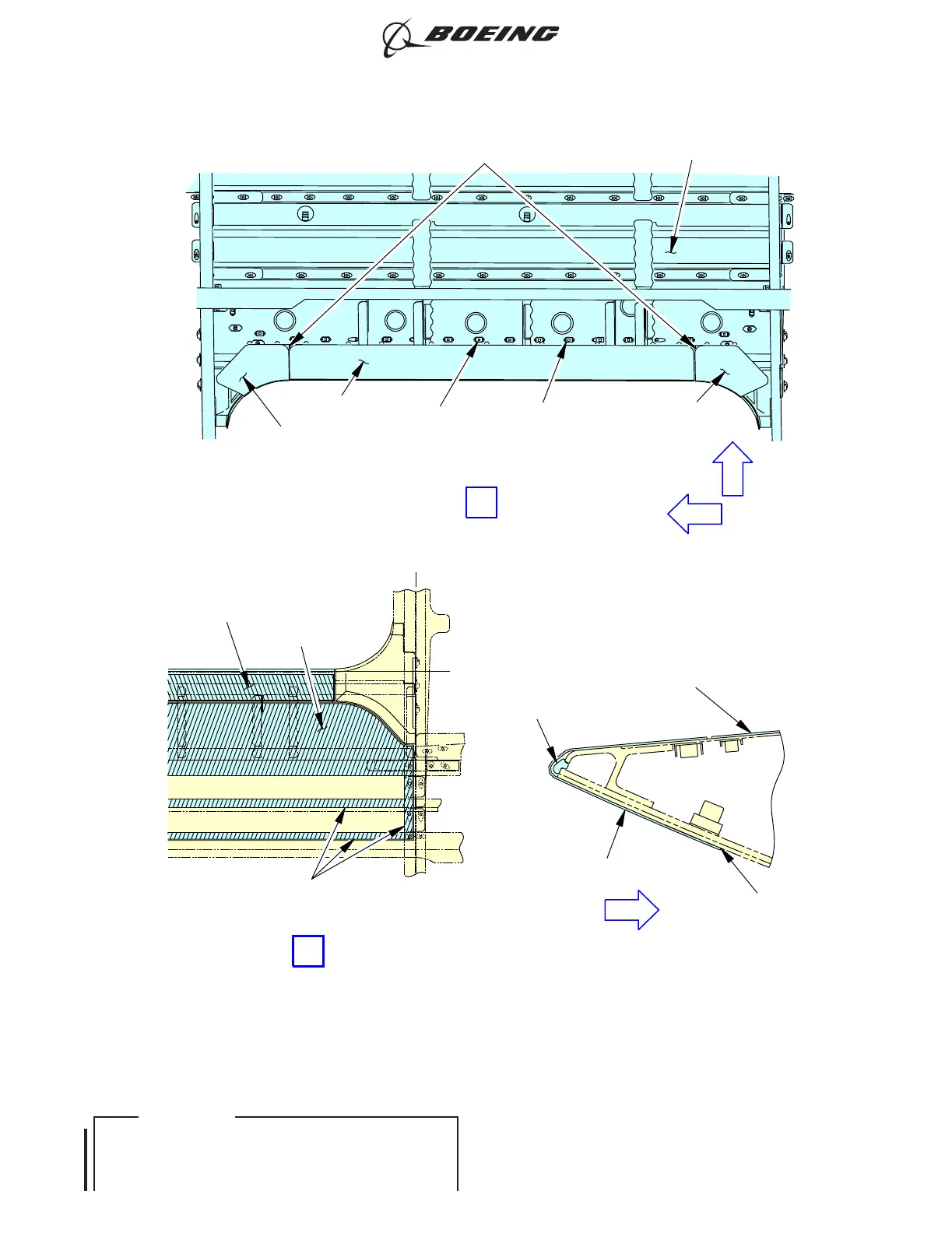

Cargo Door Scuff Plate Installation
Figure 401/53-11-02-990-801 (Sheet 2 of 3)
737-600/700/800/900
AIRCRAFT MAINTENANCE MANUAL
53-11-02
Page 413
D633A101-ILF Oct 15/2019
