Boeing 737-600 - Page 1776

F
W
D
B
C
D
E
NOSE GEAR
ACTUATOR
SUPPORT FITTING
BEARING
LUG
POSSIBLE STRESS
CORROSION CRACKS
STIFFENER
UPPER PANEL
WEB
SKIN
FRAME
TYPICAL
CORROSION
LBL
16
TYPICAL
CORROSION
STIFFENER
UPPER PANEL WEB
TYPICAL CRACKS
AND CORROSION
BS
277
LBL
14
LBL
6
BS
235.8
ACTUATOR SUPPORT FITTING
BS
259.5
J72222 S0000174950_V2
Nose Gear Wheel Well

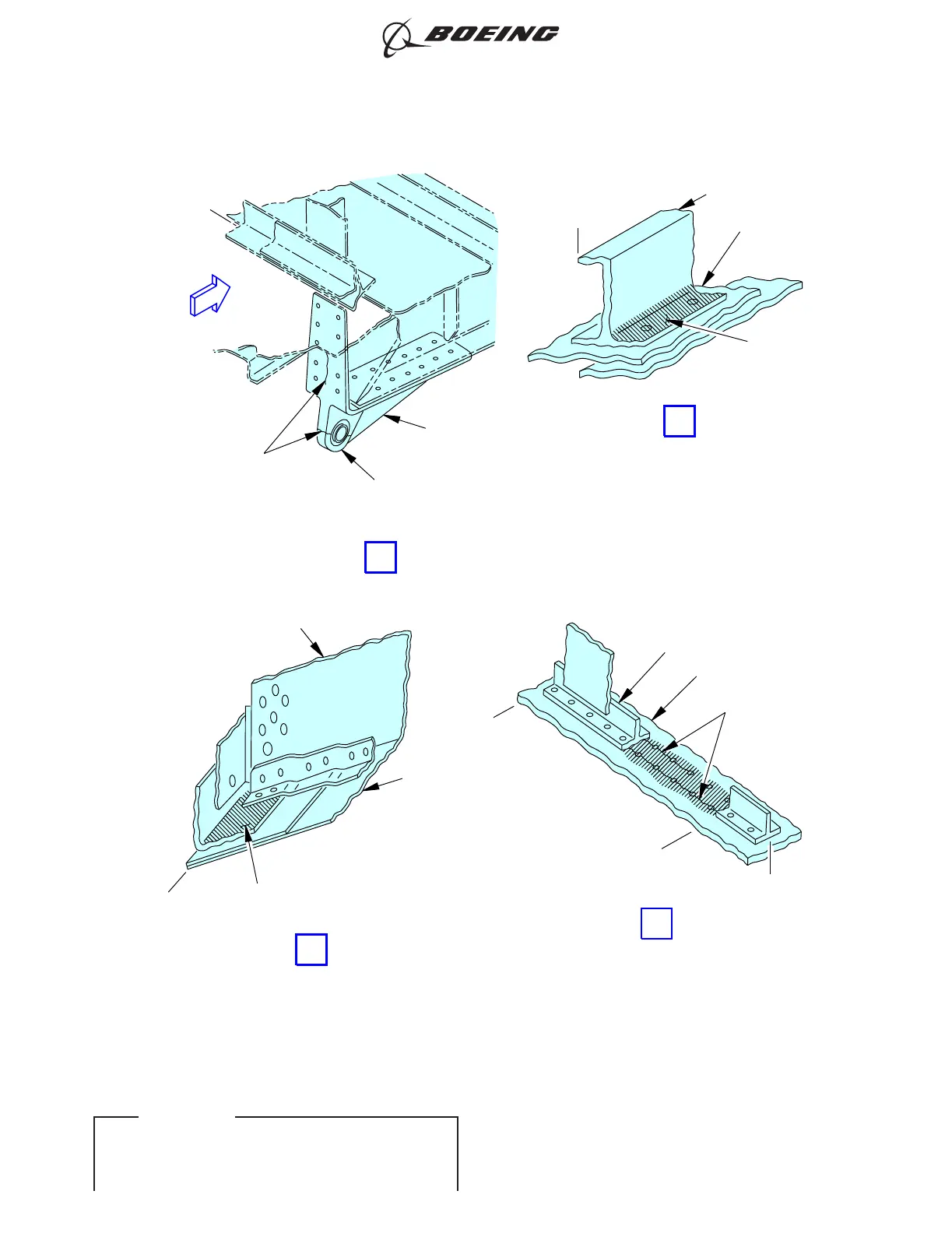

Figure 205/53-11-37-990-806 (Sheet 3 of 3)
